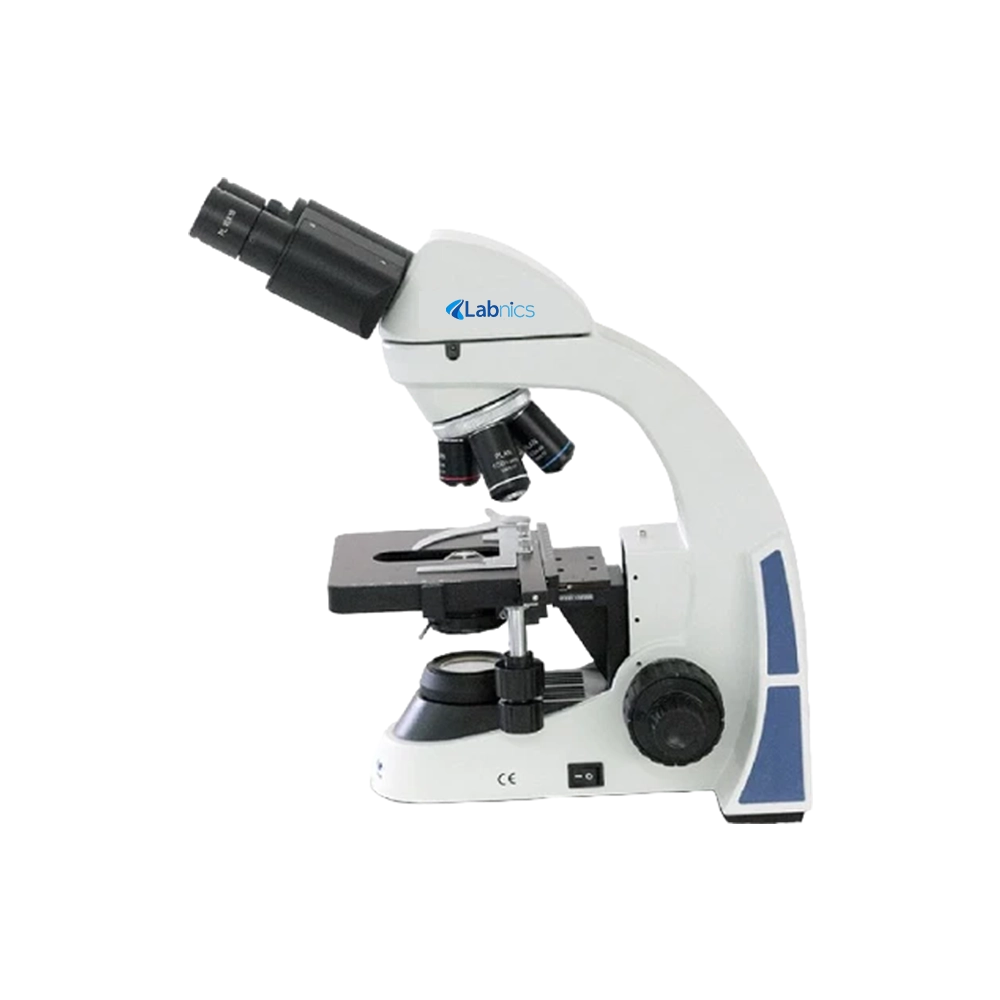

Biological Microscope NBM-101
Biological Microscope NBM-101 is equipped with a 30˚ inclination angle for comfortable viewing and can be rotated 360° for flexible positioning. It features multiple objectives for varying levels of magnification and resolution. Our microscope has a 0.5X camera eyepiece, which gives a wider view of the specimen’s images. It is designed with a finite colour-corrected optical system that minimizes chromatic aberration, enhancing image quality for detailed analysis.
Viewing Head | 30° inclined binocular viewing head, 360˚rotation |
Optical System | Finite Color-Corrected Optical System |
Interpupillary distance: | 50mm to 75mm |
Eyepiece | High eyepoint wide field WF10x/18mm or plan eyepiece PL10X/18mm |
Objective | Achromatic objective 4X/10X/40X/100X |
Nosepiece | Quadruple nosepiece |
Focus System | Coaxial focus system with upper limit and tension adjustment |
Coarse Range | 28mm; 0.002mm precision |
Stage Dimension | 140mm x 132mm ; moving range: 76mm x 50mm; precision: 0.1mm |
Condenser | N.A. 1.25 ABBE condenser and iris diaphragm |
Illumination Type | LED |
Power Consumption | 3W |
Power Supply | 100V to 240V |
Dimension | 420 × 275 × 455 mm |
Weight | 7.5 kgs |
Biological Microscope NBM-101 is designed to magnify and resolve the fine details of biological specimens. It is a fundamental tool in cell biology, microbiology, histology, environmental science, pharmaceutical research, and quality control.
Labnics Biological Microscope feature trinocular and binocular viewing heads for flexible operation. They include interpupillary distance adjustment for optimal eye alignment and comfort. Our microscopes are equipped with achromatic objectives to enhance image clarity. These units come with wide field eyepieces for an expansive and clear view of the microscopic field. They offer precise focusing with coarse and fine adjustment knobs for detailed observations.
Magnification | 1-600X continual zoom |
Pixel | HD 3.6 MP |
Mechanical Stage | Double Layers Mechanical Stage , Fine Division 0.1mm |
Illumination | LED Lamp |
Magnification | Up to 330X (3x digital magnification output to 27-inch HDMI display) |
Image Sensor | 4MP HD Sensor |
Photo Resolution | Up to 24M (5600×4200) |
Photo Format | JPG |
Optical System | Plan Achromatic optical system |
Observation | Fluorescence |
Light source | 6V/20W halogen lamp |
Viewing tube | Trinocular, 30° inclined, 360°rotating |
Optical System | Infinity Plan achromatic optical system |
Observation | Fluorescence and bright field |
Light source | 6V/30W halogen lamp |
Viewing tube | Trinocular, Siedentopf type head, 30° inclined, 360°rotation |
Optical System | Infinity plan achromatic optical system |
Observation | Bright field, Phase contrast, Fluorescence |
Filter cube | 2-positional filter cubes |
Light source | For fluorescence illumination: 100W Mercury lamp; For transmitted illumination: 6V/30W halogen lamp |
Optical System | Infinity plan achromatic optical system |
Observation | Bright field, Phase contrast, Fluorescence |
Filter cube | 4-positional filter cubes |
Light source | For fluorescence illumination: 100W Mercury lamp; For transmitted illumination: 6V/30W halogen lamp |
Flat field eyepiece | Wide field of vision WF10X( Φ 22mm) |
Long distance flat field objective | Infinite PLL5X/0.12, 10X/0.25, 20X/0.40, 50X/0.70, 80X/0.80 |
Total magnification | 50X-800X |
Observation head | Three eyes, hinged 30 ° tilt, 360 ° rotation |
Objective | Achromatic: 10X/0.25 N.A./7.3mm<br/> Plan: 40X/0.65 N.A./0.5mm |
Eyepiece | 10X/Φ18mm<br/> 12.5X/Φ13mm |
Total Magnification | 40X, 50X, 100X, 125X, 400X, 500X |
Mechanical Tube Length | 160mm |
Optical System | Plan Achromatic optical system |
Observation | Phase contrast |
Viewing Head | Binocular/Trinocular head, 30° incling, 360°rotating |
Objectives | PH4X/0.1,PH10X/0.25,PH40X/0.65 ,PH100X/1.25 |
Optical System | Plan Achramatic optical system |
Viewing Tube | Binocular/Trinocular, 30° inclined, 360°rotating |
IPD adjustment | 54mm ~ 75mm |
Dioptre adjustment | ±5 dioptres |
Objective | 0.7X-4.5X |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/20mm |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined, 360°Rotatable |
Working Distance | 100mm |
Objective | Grouped Form Any Two Objectives of 1X,2X,3X,4X, Working distance:100mm, 2X-81mm,3X-61mm, 4X-57mm |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/18mm (a Pair), with a Diotor Adaptor on the Left Eyepiece Tube |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined, 360°Rotatable |
Magnification | 10X-20X, or 10X-30X, or 10X-40X, or 20X-40X |
Optical System | Zoom achromatic objective stereo optical system |
Viewing Head | View tube Binocular, Hinge inclination 45 °, rotating 90° |
IPD adjustment | 55mm ~ 75mm |
Zoom ratio | 0.04587962962963 |
Objective | Grouped Form Any Two Objectives of 1X,2X,3X,4X, Working distance:1X-55mm, 2X-81mm,3X-61mm, 4X-57mm |
Eyepiece | Wide field Plan-scope Eyepiece: WF10X/18mm |
Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined |
Condenser | ABBE Condenser: N.A.1.25; Φ2-Φ30mm Iris Diaphragm and Φ32 Filter |
Viewing head | Trinocular view head inclined at 45° Digital view head inclined at 45° |
Eyepiece | High point wide field adjustable eyepiece WF10X20mm |
Zoom objective | 0.67X to 4.5X |
Zoom ratio | 6.7:1 |
Optical System | Achromatic Optical System |
Head | Trinocular, 30°inclined position |
Interpupillary adjustment | 52 to 75mm |
Diopter adjustment | ± 5 diopters |
Optical system | Infinite optical system |
Viewing Head | Compensation Free Trinocular Head, Inclined at 30° (50mm to70mm)<br/> 2-Binocular head, interpupillary distance, adjustable 50mm to 75mm |
Eyepiece | Plan WF10X/22m |
Focusing | Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm |
