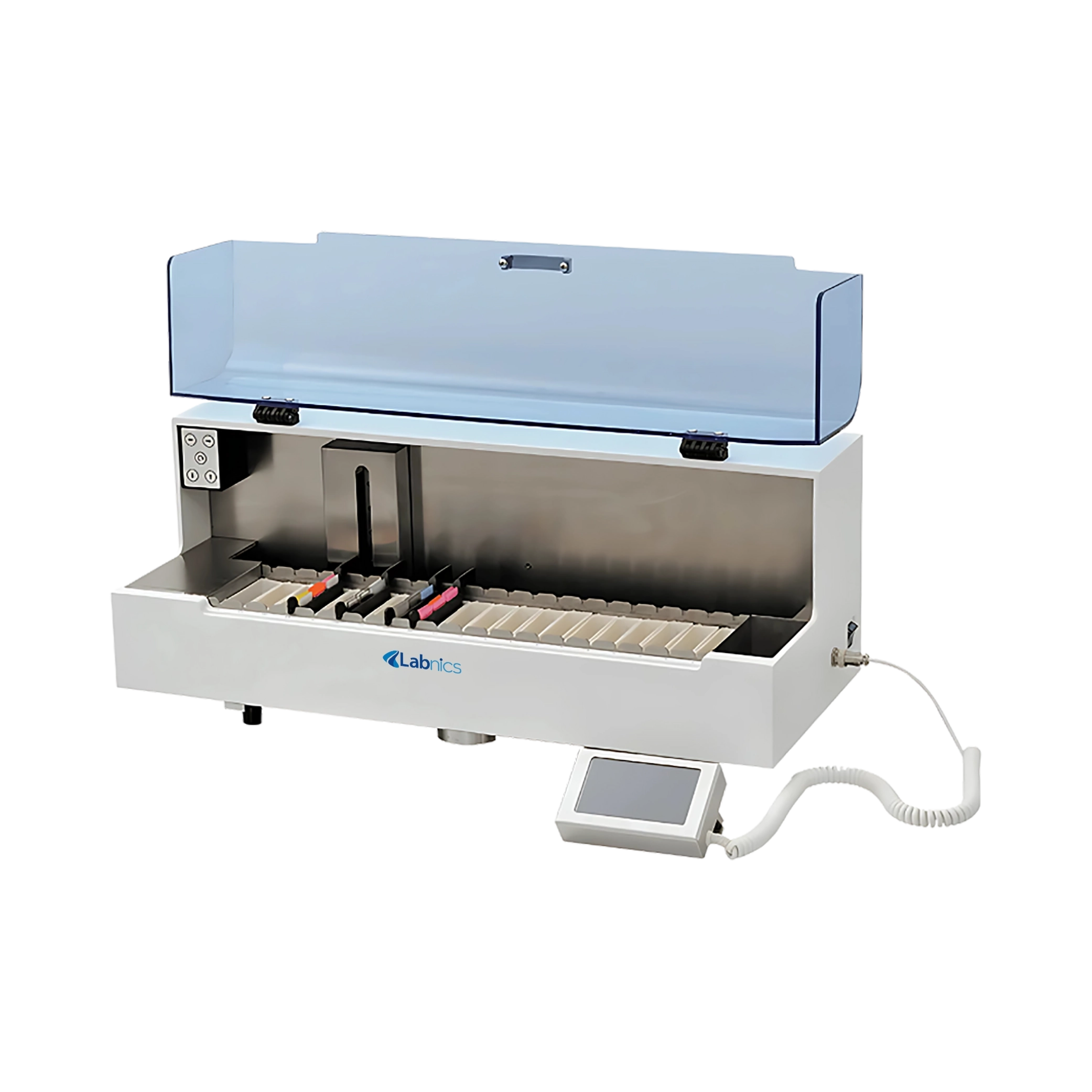

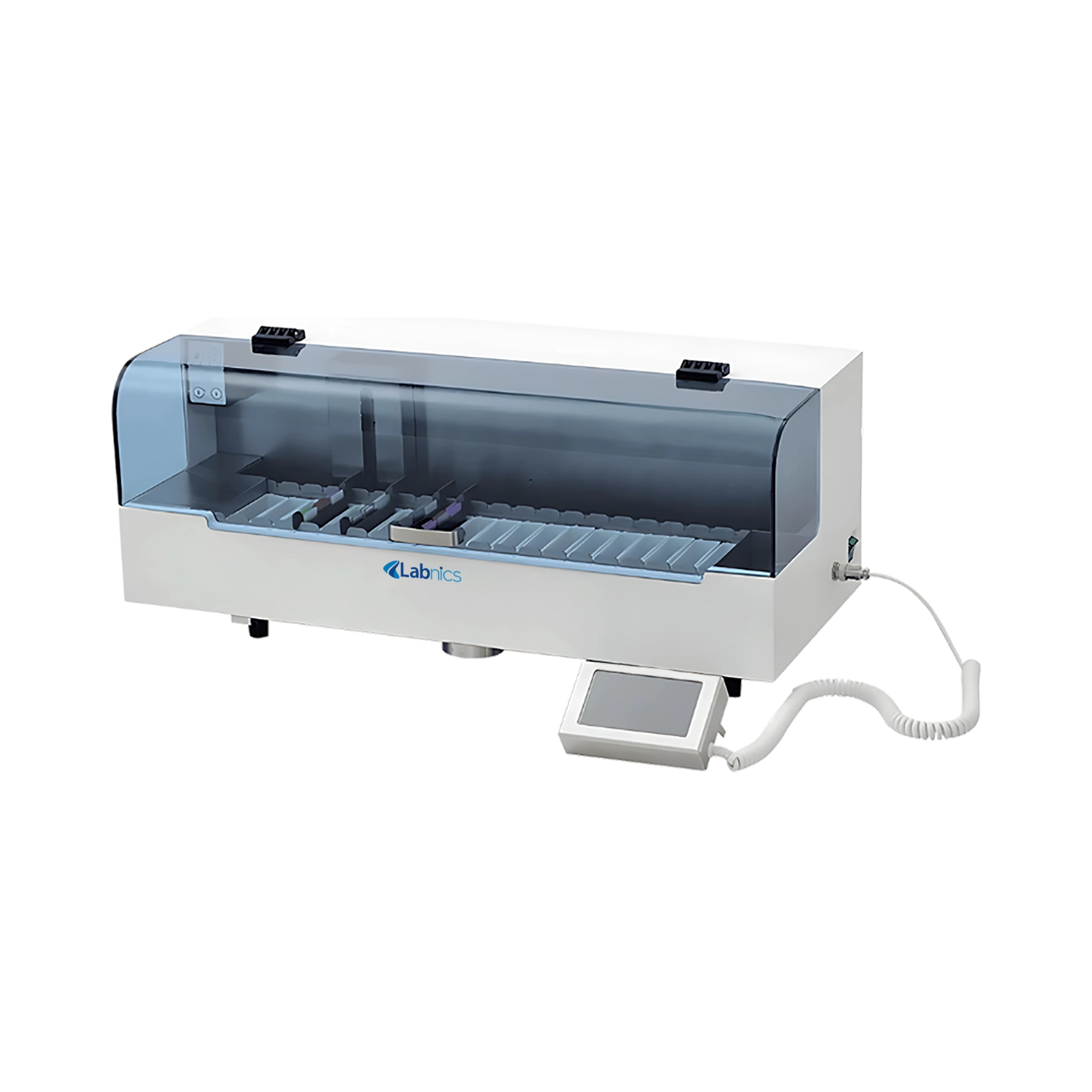

Automated Hematology Slide Stainer NAHS-100

Automated Hematology Slide Stainer NAHS-100 is a compact, energy-efficient device with a superior LED touch screen display and a unique mechanical arm design. It facilitates continuous staining with the flexibility to add samples at any time, ensuring a highly efficient staining process. With the option to set additional repeat stations for workflow optimization and automatic station switching based on requirements, it enhances laboratory productivity.

---

Get Quote Catalog

Specifications

Capacity	6pcs slides in each holder, for continuous staining process
Numbers of Station	20pcs, （Repeat Station, Clean Bath can be set）
Volume of Station	135ml
Length of Processing Time in the Cup	Adjustable within 0 – 59 minutes and within 0 -59 seconds
Time for Changing Station, Stay and Leaching Liquid	10 s
Numbers of Program	10pcs, with remind code for online faulty
Power supply	AC220V±10% 50Hz /   AC110V±10% 60Hz
Frequency	50Hz/60Hz
Power	100W
Dimension (W×D×H)	705×300×280 mm (W×D×H)
Net Weight	21 Kg

Features

• High-quality LED touch screen display
• Compact size with unique mechanical arm design for low energy consumption
• Continuous staining with the ability to add samples at any time
• High efficiency staining process
• Option to set additional repeat stations to speed up workflow when one station is occupied
• Automatic station switching during the working progress based on requirements
• Water protection device automatically shuts off water supply and provides a warning cue in case of blockage
• Slide rack can be placed in any station and initiates operation after self-induction

Applications

• This Stainer is utilized in hospitals, medical colleges, sanitation and anti-epidemic stations, biological research labs, and other related facilities.
