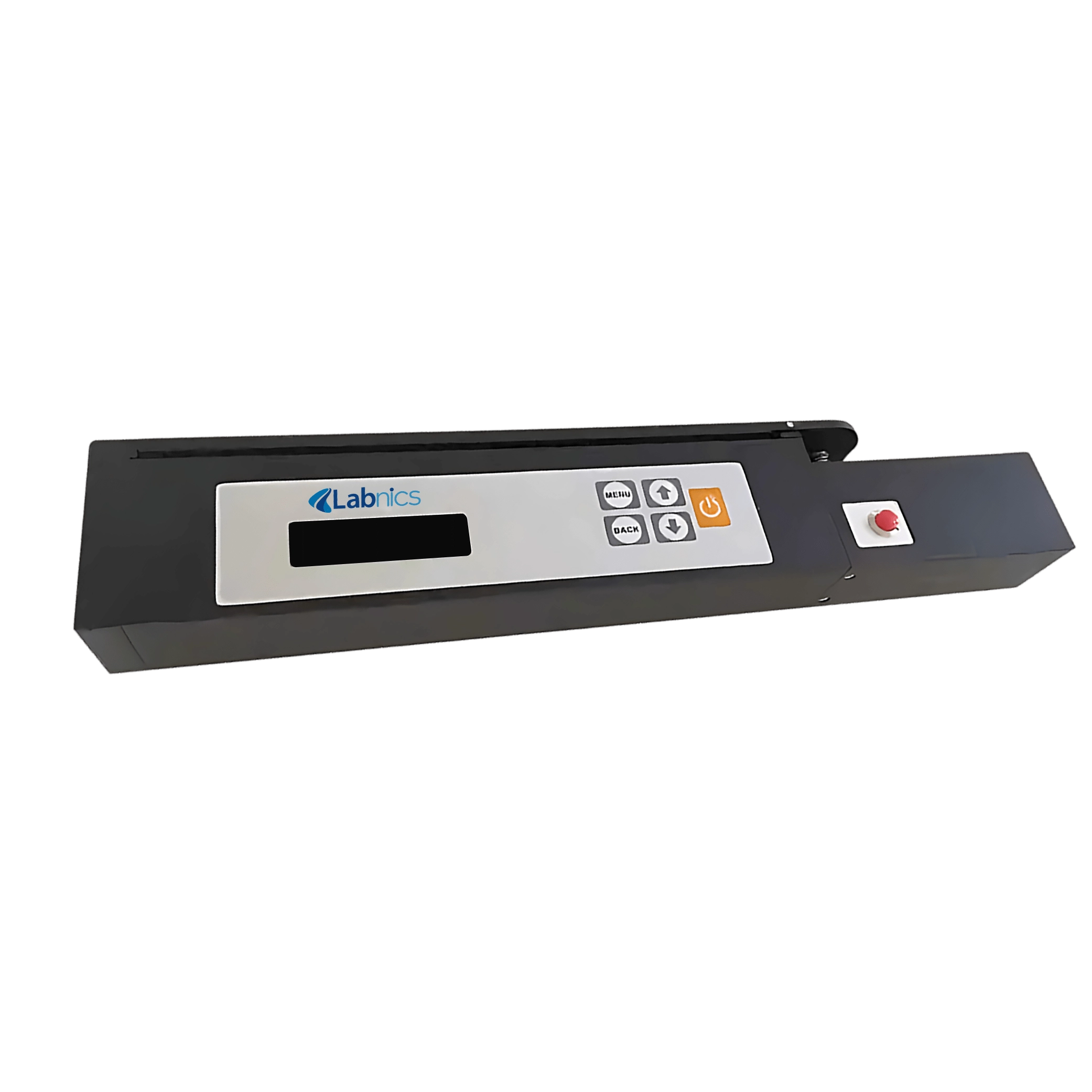

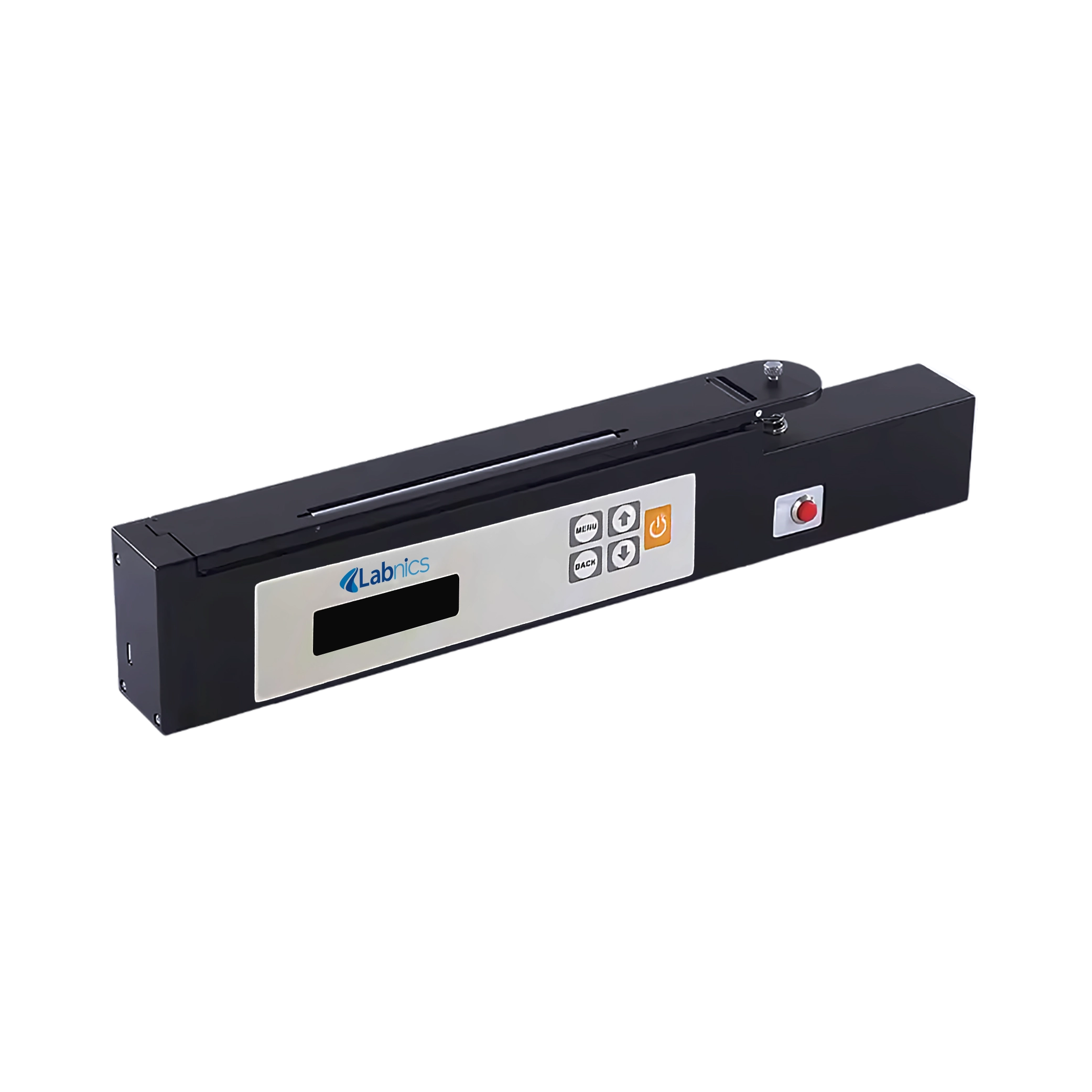

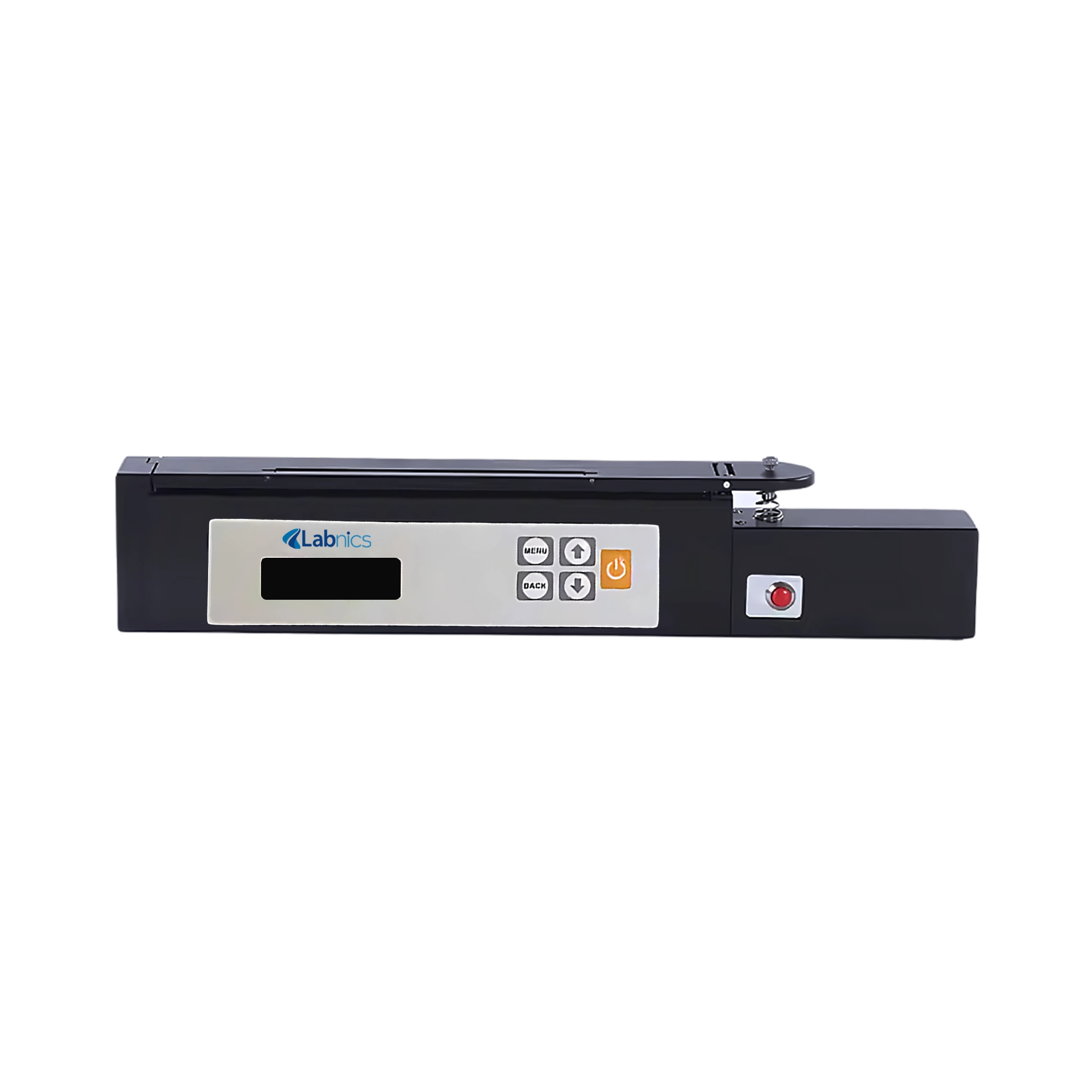

Leaf Area Meter NLAM-101

Chlorophyll Content Meter NCCM-101 is a portable, handheld device also known as SPAD meter which is used to measure the chlorophyll content in a non-destructive way. It features silicone semiconductor photodiode sensors that measures at dual wavelength concentration. It helps in rapid and accurate measurements that directly corelates to the photosynthetic activity and the plant's health and condition. This pocket-size device is a fundamental instrument that is used for fundamental research on photosynthesis and plant physiology.

---

Get Quote Catalog

Specifications

Test unit	Millimetre, square centimetre
Measuring length	≤ 1000 mm
Measuring width	≤ 160 mm
Precision	± 2 %
Resolution	0.01 cm2
Data storage capacity	≥ 1000 groups
Leaf temperature accuracy	± 0.5°C
Display	LCD
Dimensions	290×67×35 mm
Weight	830 g

Features

• One-time measurement with large blade area
• Non-destructive measurement with no calibration required
• In-built data storage
• In-built rechargeable battery power
• Very simple, easy-to-use with RS232 interface

Applications

• Widely employed for rapid measurement in agriculture, meteorology, forestry and other departments as well as in research areas like ecology, agronomy, entomology, carbon cycle research and plant pathology.
