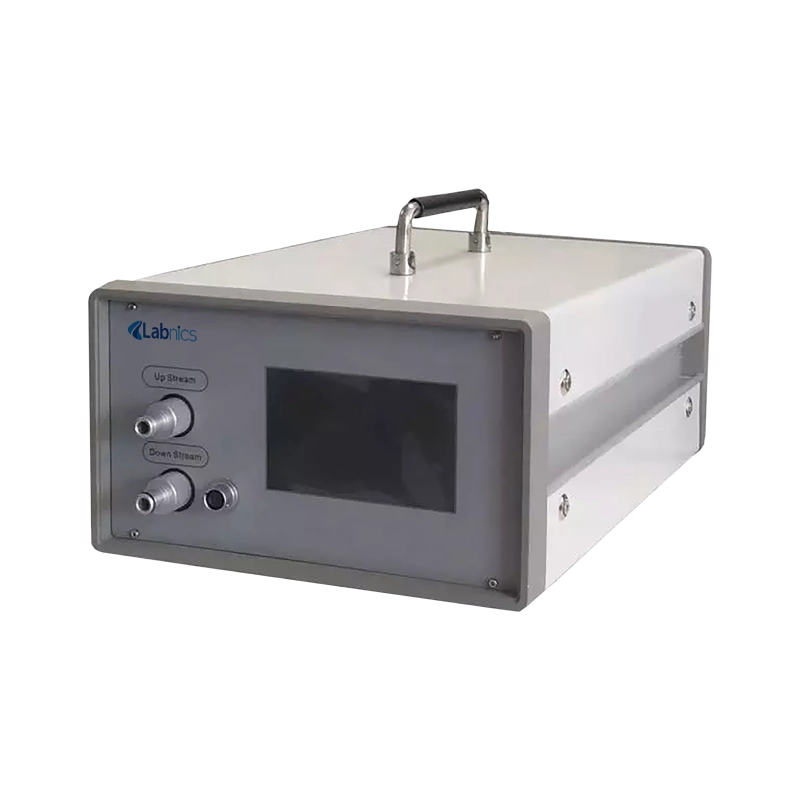

Aerosol Photometer NAP-101 is a compact aerosol generator coupled with a photometer designed for on-site leakage detection. Equipped with portable scanning probe, inlet air pump, light source and 3.5-inch colour touchscreen. Features auto-zeroing and instantly displays leakage rate, pump sampling speed and other data. The unit has flow range of 1 CFM (28.3 L/min), can automatically switch between upstream and downstream aerosol concentration, is easy to carry and operate.
$8,750.00
Specifications
| Available Flow Range | 1,500 to 65,000 CFM (42 to 1839.5 m3/min) |
| Occurrence Concentration | 10 μg/L: flow 65,000 CFM (about 1839.5 m3/min);100 μg/L: flow 65,000 CFM (about 1839.5 m3/min) |
| Particle | PAO, DOP and polydispersion occur |
| Occurrence Method | Heating occurs |
| Display Range | 0.0001% to 100.0% Colourful LCD Display |
| Range | 0 to 120 mg/m3 |
| Resolution | Read a value of 1% (0.01% to 100%) |
| Repeatability | Read a value of 0.5% (0.01% to 100%) |
| Flow Rate Range | 1 CFM (28.3 L/min) |
| Automatically Zero | Auto-zero on start up |
| Alarm | Sound and light alarm |
| Communication Interface | USB, Wireless printer |
| Types of Aerosols | PAO, DOP |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimension (L × W × H) | 258 × 178 × 360 mm |
| Weight | 9.8 Kg (Ontology), 10.3 Kg (Ontology, scanning probe) |
Features
Applications
Ask Expert
FAQ for Aerosol Photometer NAP-101
1: How does the Aerosol Photometer NAP-101 ensure accurate leakage detection on-site?
The Aerosol Photometer NAP-101 features auto-zeroing on start-up, which calibrates the sensor for precise measurement, ensuring reliable and accurate leakage detection during on-site testing.
2: Can the Aerosol Photometer NAP-101 measure aerosol concentrations both upstream and downstream?
Yes, the Aerosol Photometer NAP-101 automatically switches between upstream and downstream aerosol concentration, enabling comprehensive monitoring without manual adjustments.
3: What flow range does the Aerosol Photometer NAP-101 support and why is it important?
This Aerosol Photometer NAP-101 supports a flow range of 1 cubic foot per minute (28.3 L/min), which is ideal for detecting aerosol particles effectively during filter efficiency and leakage tests.
4: Where can the Aerosol Photometer NAP-101 be used for filter and leakage testing?
Our Aerosol Photometer NAP-101 is suitable for use in clean rooms, biosafety cabinets, laminar flow tables, glove boxes, HEPA and ULPA filters, HVAC systems, and operating rooms.
5: What steps should I take if the Aerosol Photometer NAP-101 shows inconsistent readings?
If the Aerosol Photometer NAP-101 provides inconsistent readings, ensure the scanning probe is properly positioned, verify the air pump operation, and perform the auto-zero calibration again. Persistent issues may require checking for environmental factors or leaks.
6: How does the scanning probe improve the operation of an Aerosol Photometer?
The scanning probe provides complete control over the device’s functions and displays real-time data on its own screen. Its flexible design allows it to be adjusted for easy access to tight or difficult testing locations, making leak detection more efficient and convenient.
7: What features ensure the accuracy of an Aerosol Photometer?
Our Aerosol Photometer uses a stable light scattering cavity and auto-zeroing to maintain precise measurements. It operates at low energy and minimal heat to reduce signal interference, resulting in highly repeatable and accurate aerosol concentration readings.
8: Can the Aerosol Photometer automatically switch between upstream and downstream measurements?
Yes, it can automatically alternate between upstream and downstream aerosol measurements. This automation simplifies the testing process, allowing users to quickly identify leaks without needing to manually adjust settings.
9: What types of filters can be tested using an Aerosol Photometer?
The Aerosol Photometer is compatible with various high-efficiency filtration systems, including HEPA, ULPA, and negative pressure filters, making it suitable for use in pharmaceutical, medical, and industrial cleanroom environments.
Labnics Aerosol Photometers offer high-sensitivity detection for accurate measurement of low aerosol concentrations. They feature a compact and portable design for easy handling and transport. These units automatically switch between upstream and downstream for precise monitoring. They come with a digital display to ensure clear and easy reading. Our aerosol photometers also include an auto-zeroing function for consistent and reliable measurements.
