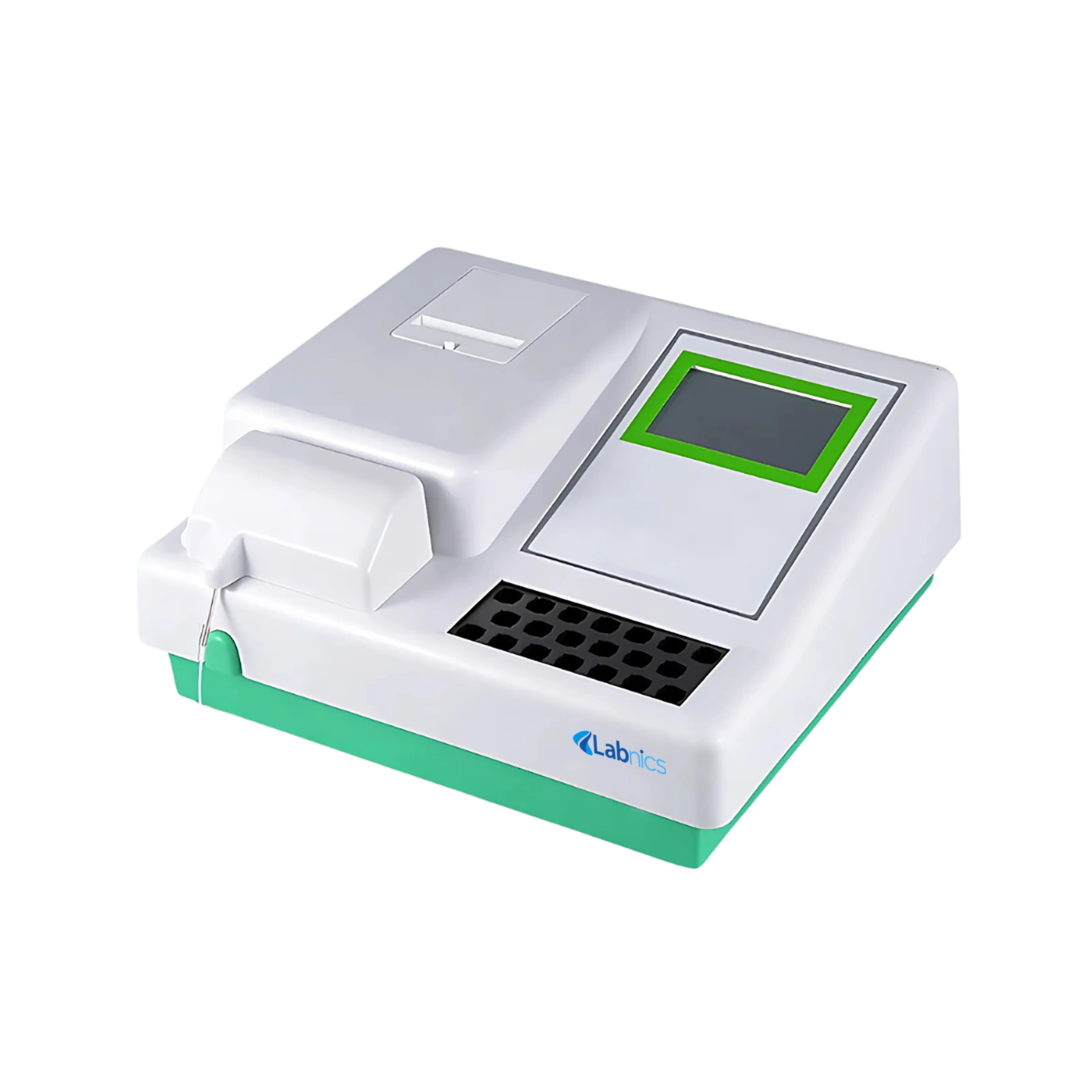

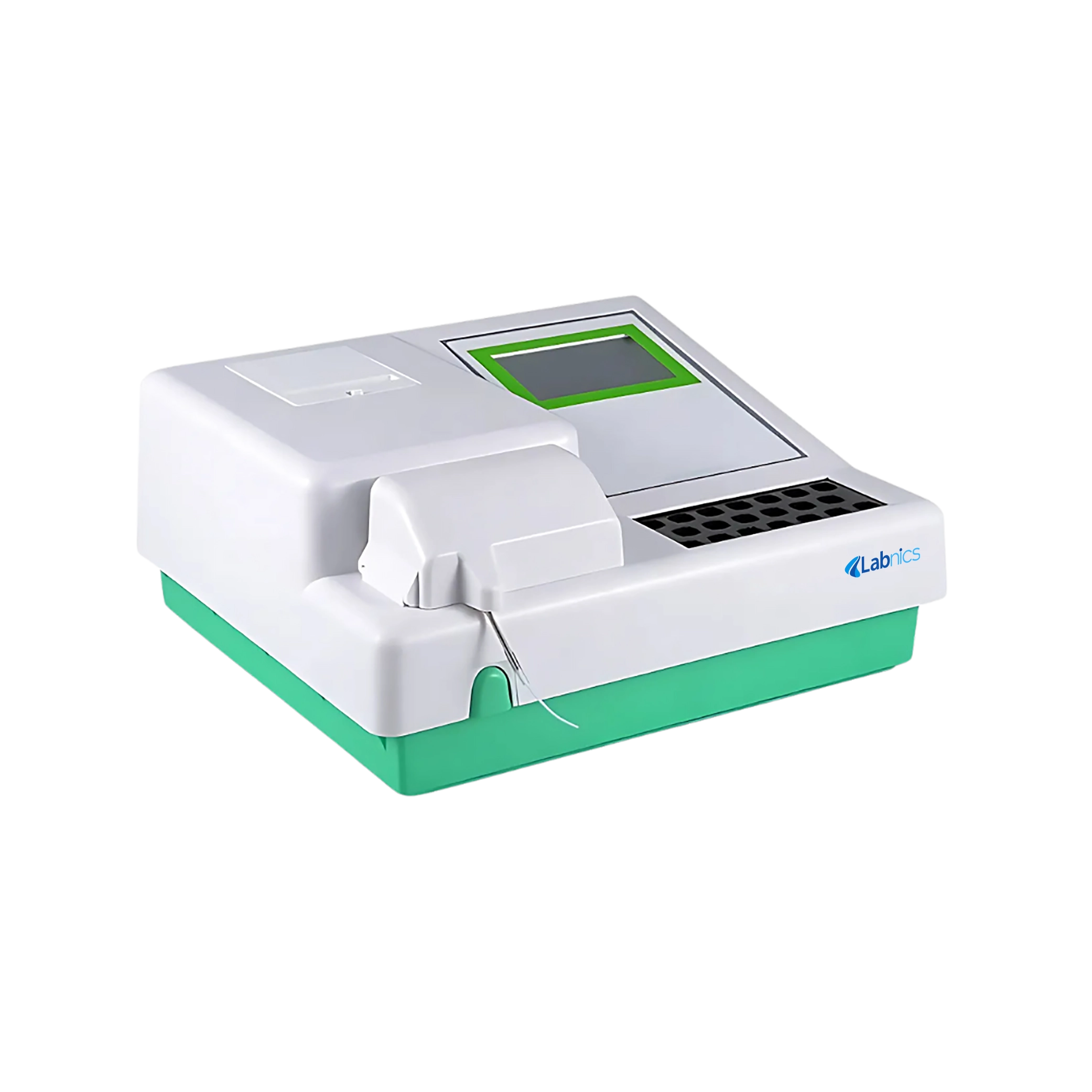

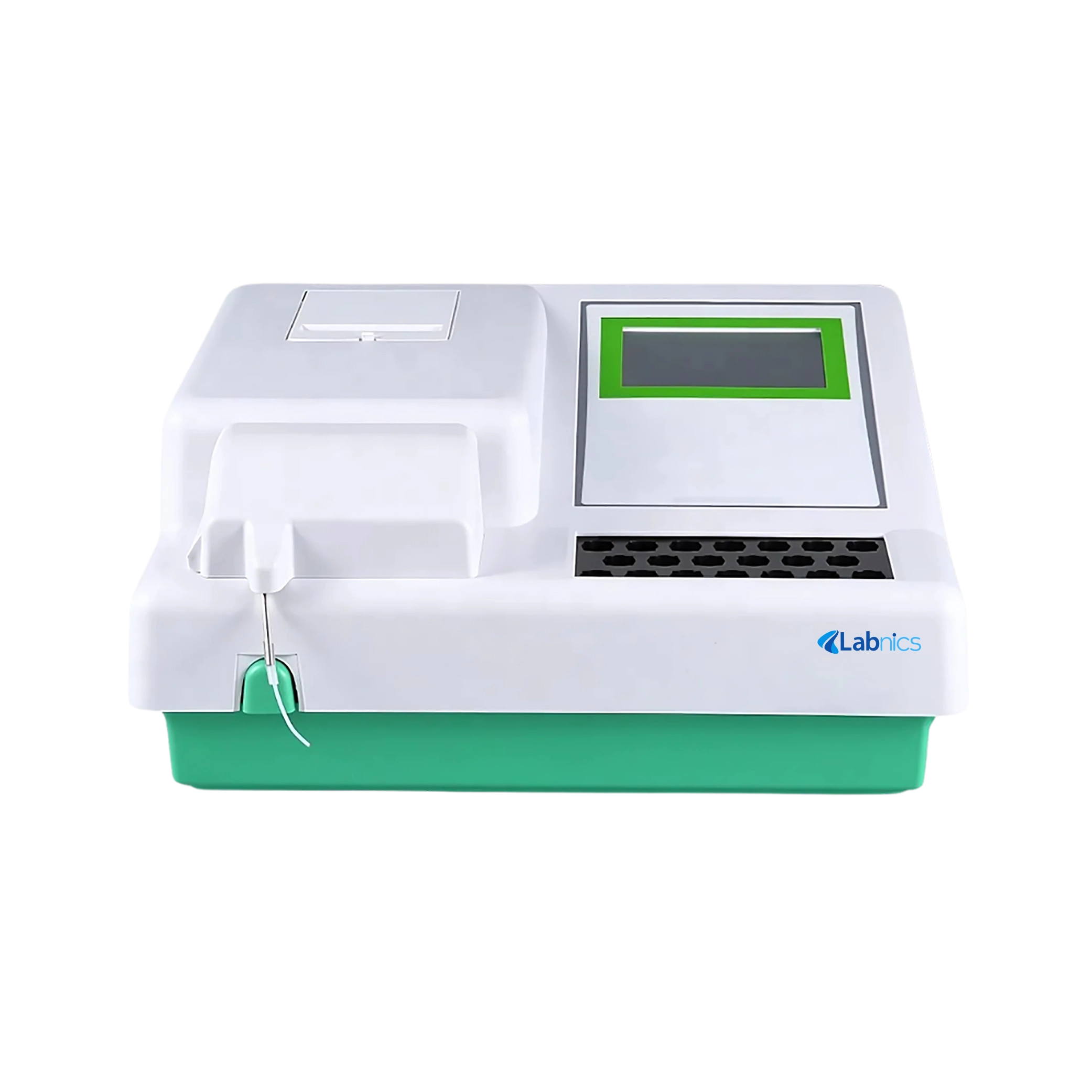

Semi-Automatic Chemistry Analyzer NSCA-100

Semi-Automatic Chemistry Analyzer NSCA-100 measures volumes ranging from 450 µL to 800 µL for accurate sample analysis. It provides precise wavelength accuracy with customizable filter options to suit various testing needs. Our unit features a back-illuminated LCD with a color touchscreen for clear and easy operation. It supports various methods, including endpoint, fixed time, multistranded, biochromatic, and immunoturbidimetry for versatile testing.

---

$2,488.00

Buy Now Catalog

Specifications

Measuring volumes	450 µL to 800 µL
Incubator	20 incubating positions
Wavelength	340 nm /405 nm /492 nm /510 nm /546 nm /578 nm /620 nm, 2 more filters available on request
Wavelength accuracy	± 2 nm
Temperature	25 °C, 30 °C, 37 °C
Precision	± 0.1 °C
Measuring range	0 to 3.0 O.D
Photometric linearity	± 2 % (0 to 3.0 O.D)
Photometric accuracy	± 1 % (0 to 3.0 O.D)
Carry-over	≤ 1 %
Drift	< 0.005 O.D/hr
Display	Back-illuminated LCD, color touch screen
Storage	Over 180 programs, 3000 test results
Printer	Built-in thermal printer
Software	For computer communication on request
Interface	RS-232 serial port, USB port
Power supply	AC 110 V/ 60 Hz or 220 V/ 50 Hz
Dimensions	340 x 380 x 180 cm
Weight	8 kgs

Features

• Built-in thermal printer
• Advanced QC functions
• Large data storage
• Multilanguage facility
• Low energy consumption

Applications

• Semi-Automatic Chemistry Analyzer NSCA-100 is used for accurate and efficient analysis of chemical substances in biological samples. They are commonly used in clinical laboratories, research settings, and medical diagnostics.

Test Menu

T.BILI	r-GT/GGT	CHO	Ca	APOB-1/B	CHE
D.BILI	ALP/AKP	TG	CL	APOB	CREA
TP	UREA	CK	P	CK-MB	Mg
ALB	LDH	CK	ASO	AFU	Lactic acid
ALT/GPT	UA	α-HBDH	CO2	FMN	LP(a)
AST/GOT	GLU	AMY	LDL-C	HDL-C	Lactic acid
TBA	ADA	HS-CRP	PA	Fe	Cu
Zn	C3	C4	IgG
IgM	IgA	and drug, toxicity, etc
