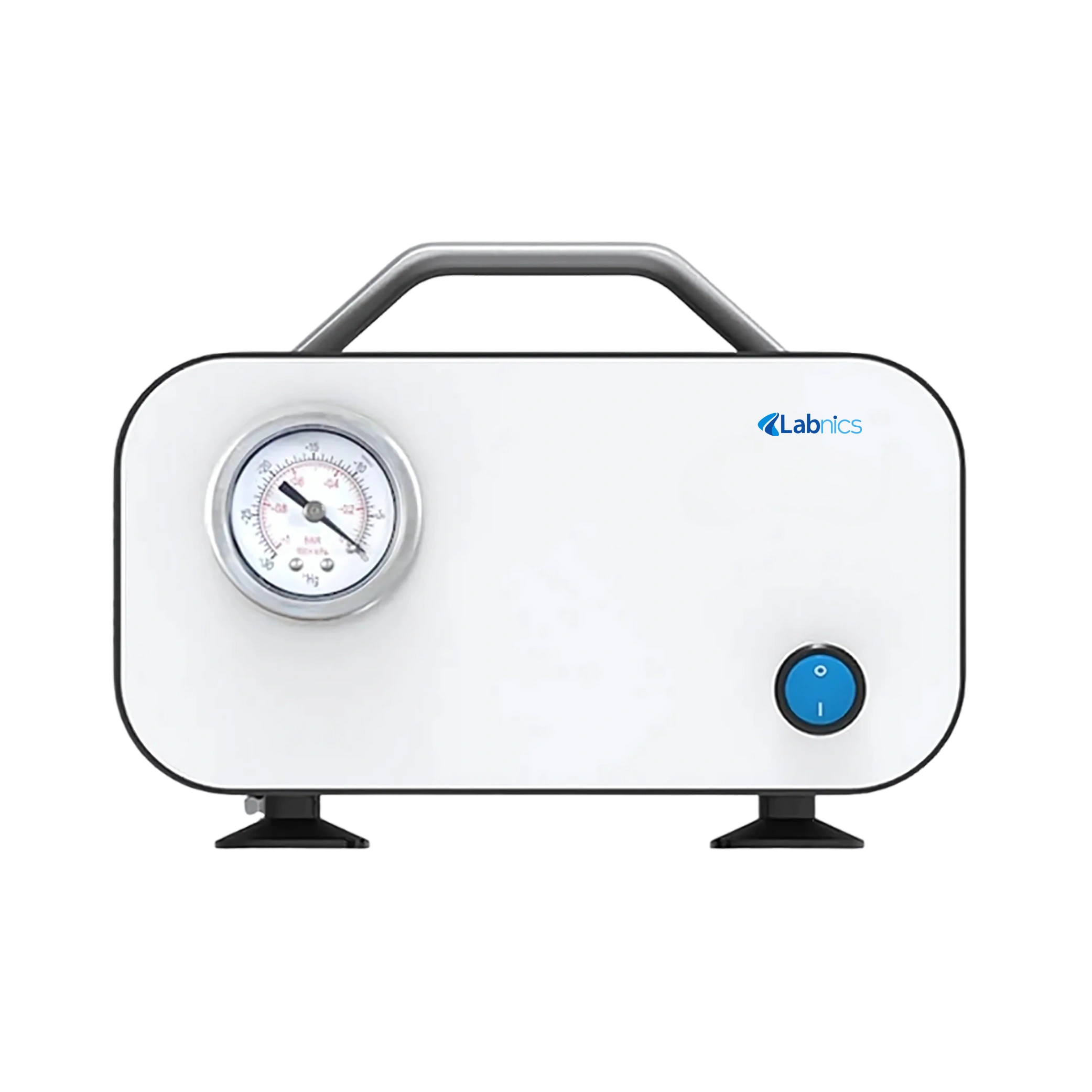

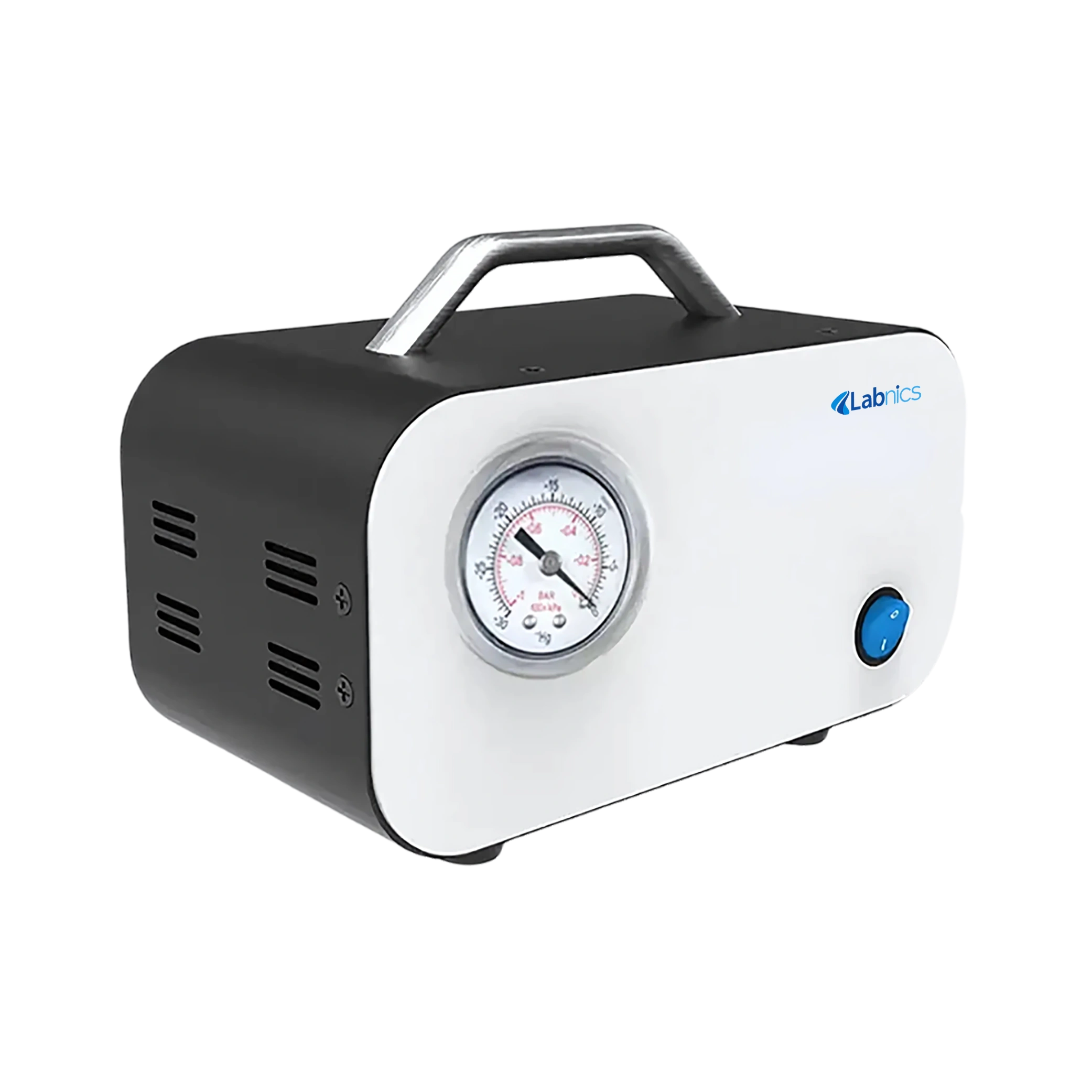

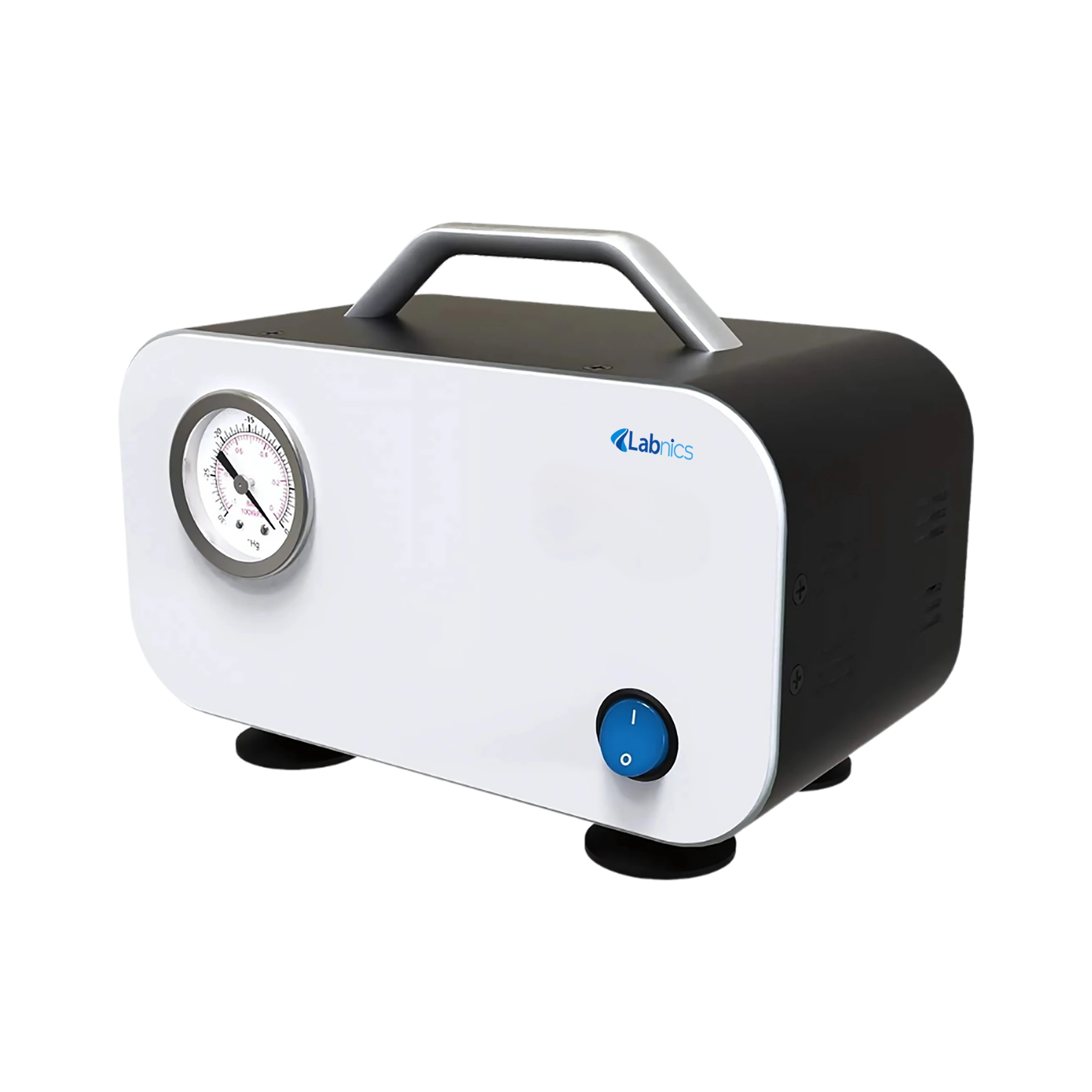

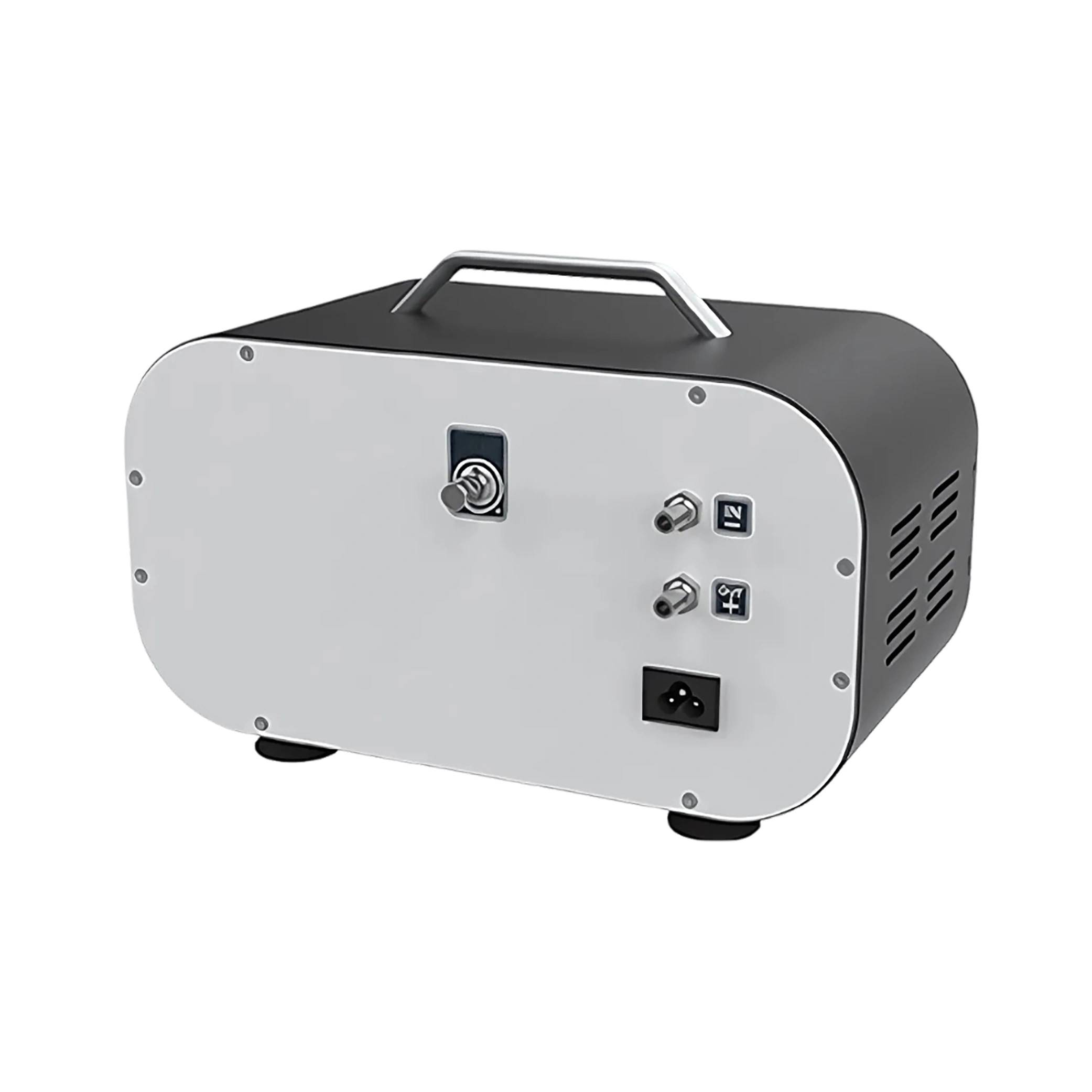

Vacuum Pump NVP-503 operates with a vacuum degree of 0.088 MPa while maintaining a steady flow rate of 40 L/min. It features a compact and lightweight design for easy portability. This unit offers fast filtration speed to improve operational efficiency. It includes a pressure regulating valve for controlled pressure adjustments. Our vacuum pump comes with a built-in vacuum gauge for easy pressure monitoring.
$1,275.00
Specifications
| Flow Rate | 40 L/min |
| Vacuum Degree | 0.088 Mpa |
| Maximum Pressure | 8.0 bar |
| Negative Pressure | 0.088 Mpa |
| Positive Pressure | 8.0 bar |
| Valve Diaphragm | Rubber |
| Power Consumption | 130 W |
| Power Supply | AC 100 to 220 V |
| Dimensions | 300 × 185 × 200 mm |
| Weight | 12 kg |
Features
Applications
Standard Accessories
Power cord × 1 pc
Vacuum tube × 1 pc
Filter membrane × 1 pc
Ask Expert
FAQ for Vacuum Pump NVP-503
1: Why does the Vacuum Pump NVP-503 operate at a vacuum degree of 0.088 MPa?
Operating at 0.088 MPa, the Vacuum Pump NVP-503 ensures reliable vacuum strength for consistent performance in sensitive lab procedures such as solid-phase extraction and vacuum drying.
2: Can the Vacuum Pump NVP-503 be used with rotary evaporators and vacuum ovens?
Yes, the Vacuum Pump NVP-503 is fully compatible with rotary evaporators, vacuum ovens, and similar systems due to its efficient pressure regulation and continuous operation capabilities.
3: Does the Vacuum Pump NVP-503 allow adjustment of both pressure and speed?
Our Vacuum Pump NVP-503 features adjustable controls for both pressure and speed, allowing users to fine-tune the vacuum level according to the needs of different applications.
4: What should I do if the Vacuum Pump NVP-503 does not start?
If the Vacuum Pump NVP-503 fails to start, check the power supply, ensure the integrated socket is properly connected, and confirm that the switch and fuse are functioning correctly.
5: How do I clean and maintain the Vacuum Pump NVP-503?
To maintain the Vacuum Pump NVP-503, turn off and unplug the unit before cleaning, use a soft cloth to wipe the exterior, and periodically inspect valves, tubing, and connections for wear or buildup.
6: Is the vacuum pump noisy during operation?
No, the vacuum pump operates with low noise, making it suitable for quiet lab environments. You can use it for extended periods without it causing any disturbance.
7: Is the Vacuum Pump easy to maintain?
Yes, Vacuum Pump is designed with ease of maintenance in mind. The intuitive controls and simple design make routine maintenance straightforward, and its durable construction minimizes wear and tear. This helps reduce downtime and maintenance costs over the pump's lifespan.
8: How durable is this Vacuum Pump?
Our Vacuum Pump is constructed with high-quality, wear-resistant materials, making it highly durable even in demanding industrial environments. Its robust build ensures a long service life, reducing the need for frequent replacements or repairs, and helping you get the most value from your investment.
9: Is the Vacuum Pump energy-efficient?
Yes, the Vacuum Pump is designed with energy efficiency in mind. Its high performance and optimized motor ensure that it operates with minimal energy consumption, helping you reduce operational costs while maintaining peak performance.
Labnics Vacuum Pumps are designed to remove air and gases from sealed environments efficiently. They offer adjustable flow rates, providing flexibility in liquid flow control. These units include integrated safety features to protect the pump from damage. They come with simple controls and an intuitive interface, ensuring ease of use and maintenance. Our vacuum pumps are made with high-quality, wear-resistant materials for enhanced durability and long service life.
