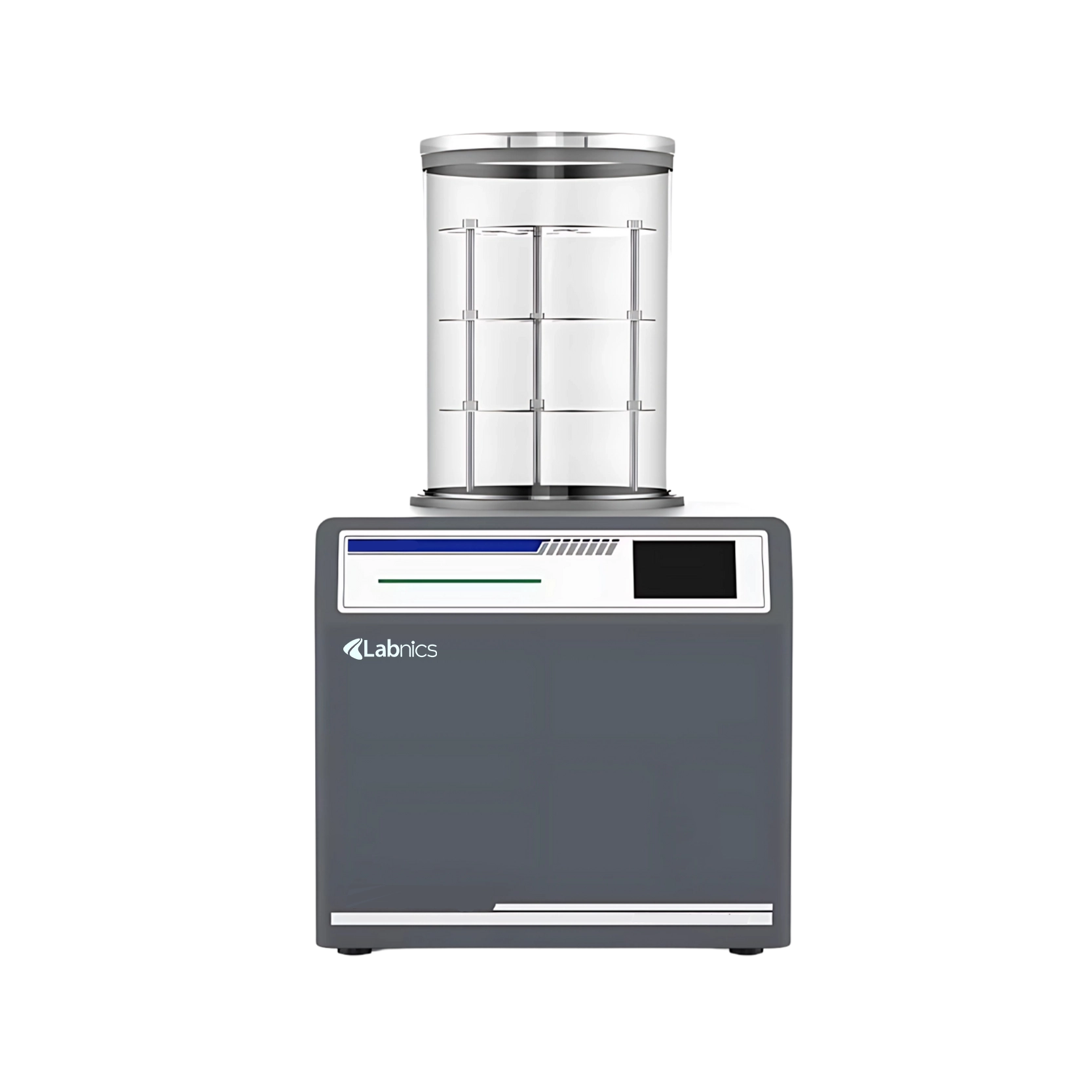

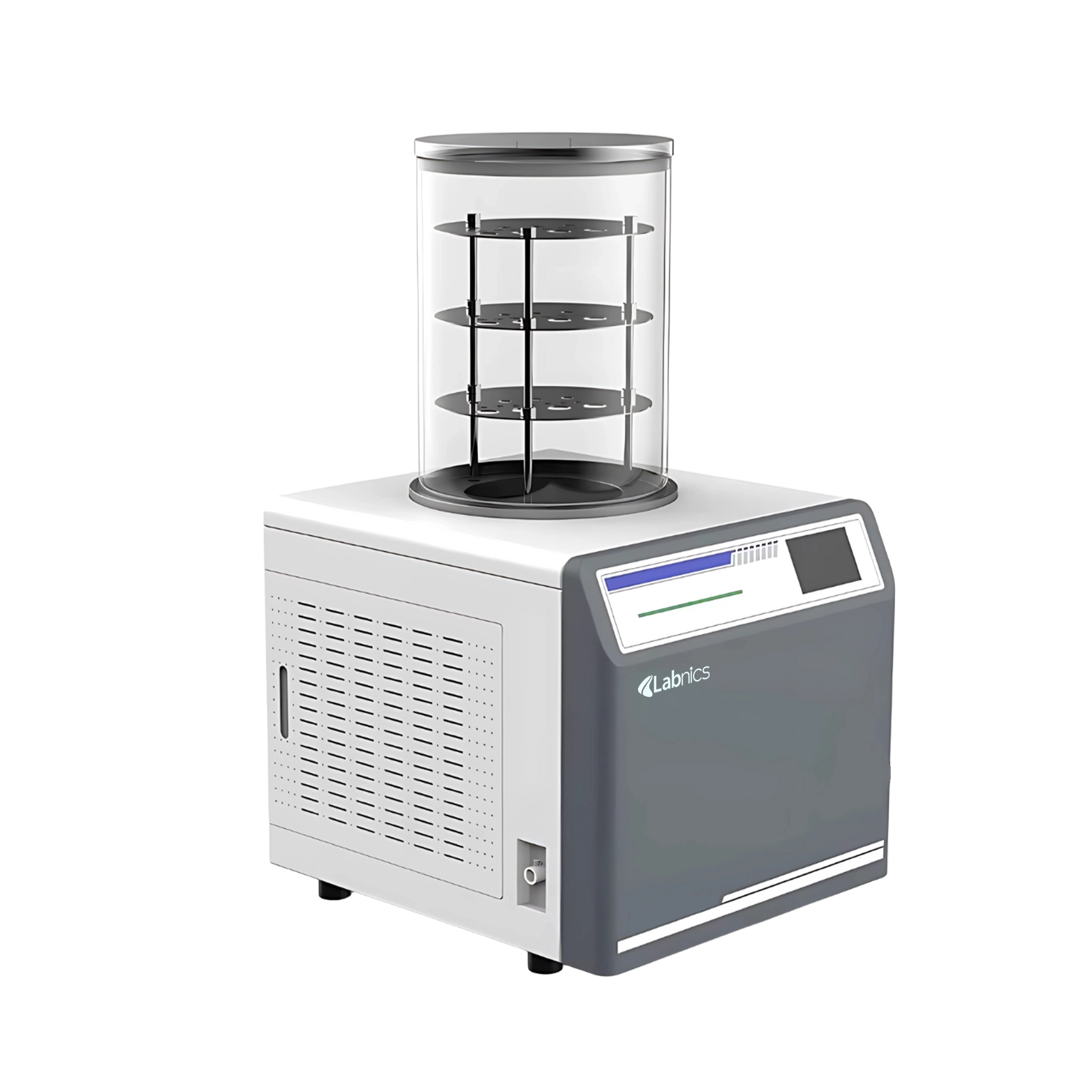

Vacuum Freeze Dryer NVFD-102 has a 6 kg ice condenser capacity and a -90°C condenser temperature. It removes moisture efficiently through sublimation under a vacuum without damaging the material. Our system includes PTFE anti-corrosion treatment on the cold trap and condensing coil. It maintains a high vacuum level for effective drying. This unit features a compact design that fits easily into most lab spaces.
$15,623.00
Specifications
| Capacity | 6kg |
| Temperature | -90°C |
| Cold Trap Volume | 10L |
| Sample Shelf | 3 to 10 layers |
| External Valve | 12 pieces/ 24 pieces |
| Power Consumption | 1.5 kW |
| Power Supply | 220V, 50Hz |
| Dimensions (W × D × H) | 510 × 570 × 500 mm |
| Weight | 65 kg |
Features
Applications
Standard Accessories
Oil Mist Filters
Optional Accessories
Aluminum upper cover and external valve（12 ports）
T-frame 12 ports
Ask Expert
FAQ for Vacuum Freeze Dryer NVFD-102
1: Can the Vacuum Freeze Dryer NVFD-102 operate at low temperatures?
Yes, it is designed for low-temperature operation, with ice condenser temperatures reaching as low as -90°C.
2: Does the Vacuum Freeze Dryer NVFD-102 support GMP or GLP compliance?
While the NVFD-102 is designed for high-quality lab use, it can be configured with features that support compliance with Good Manufacturing Practices (GMP) or Good Laboratory Practices (GLP).
3: How long does a typical freeze-drying cycle take?
The drying time depends on the type and volume of the material but typically ranges from several hours to over a day. Pre-freezing and sample characteristics also influence cycle time.
4: Can I customize the number of sample shelves?
Yes, the system supports 3 to 5 adjustable shelf layers, allowing flexibility based on batch size and sample volume.

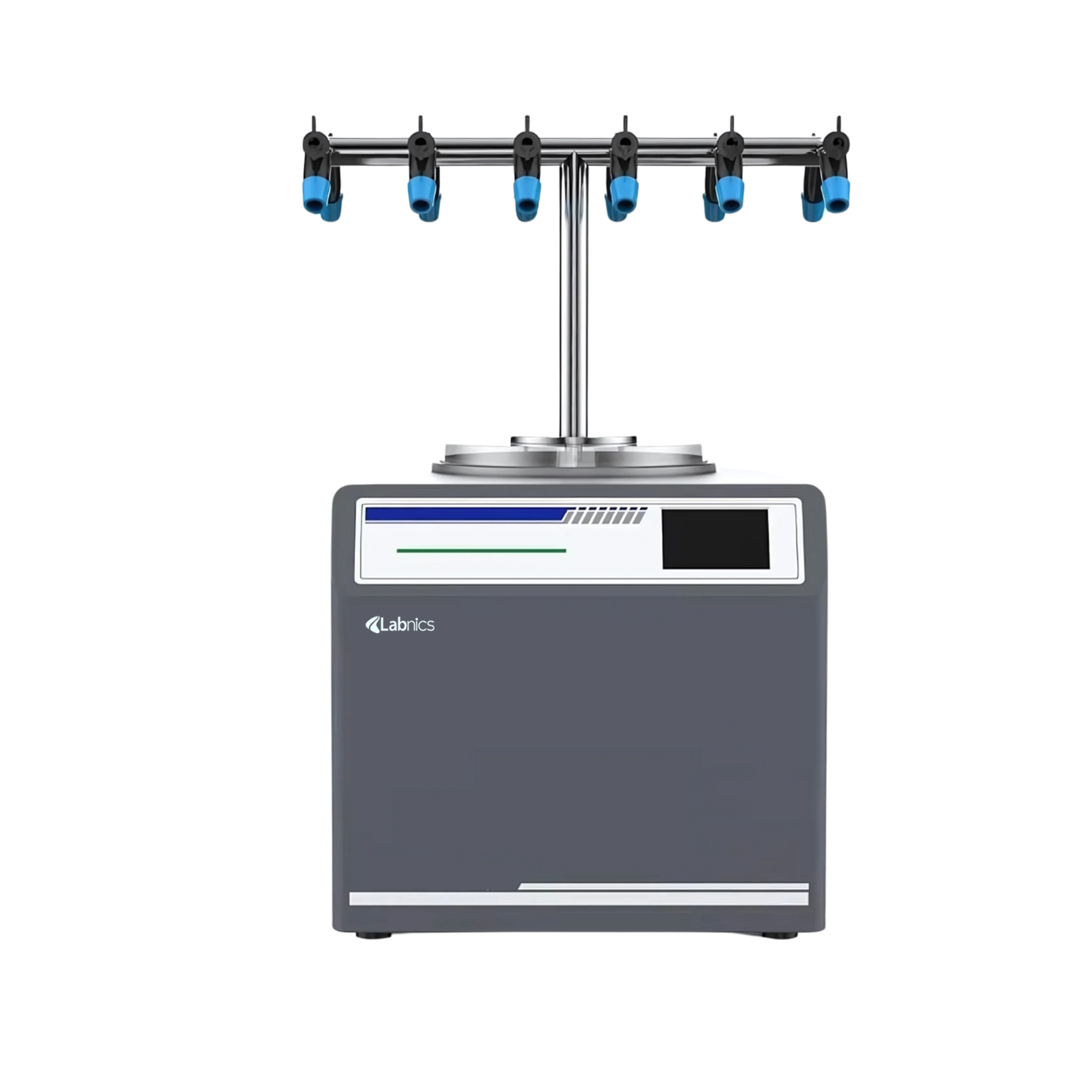

5: Can manifold drying be performed with Vacuum Freeze Dryer NVFD-102?
Absolutely. The system supports manifold drying, ideal for handling multiple samples using flask connections.
Labnics Vacuum Freeze Dryer removes moisture from sensitive substances while preserving their structure. They consume minimal energy and operate with high efficiency. Our freeze dryers use vacuum chambers to protect heat-sensitive materials from thermal damage. These are built with durable, corrosion-resistant materials that ensure long-term performance. They incorporate eco-friendly features and low-noise operations for various applications.
