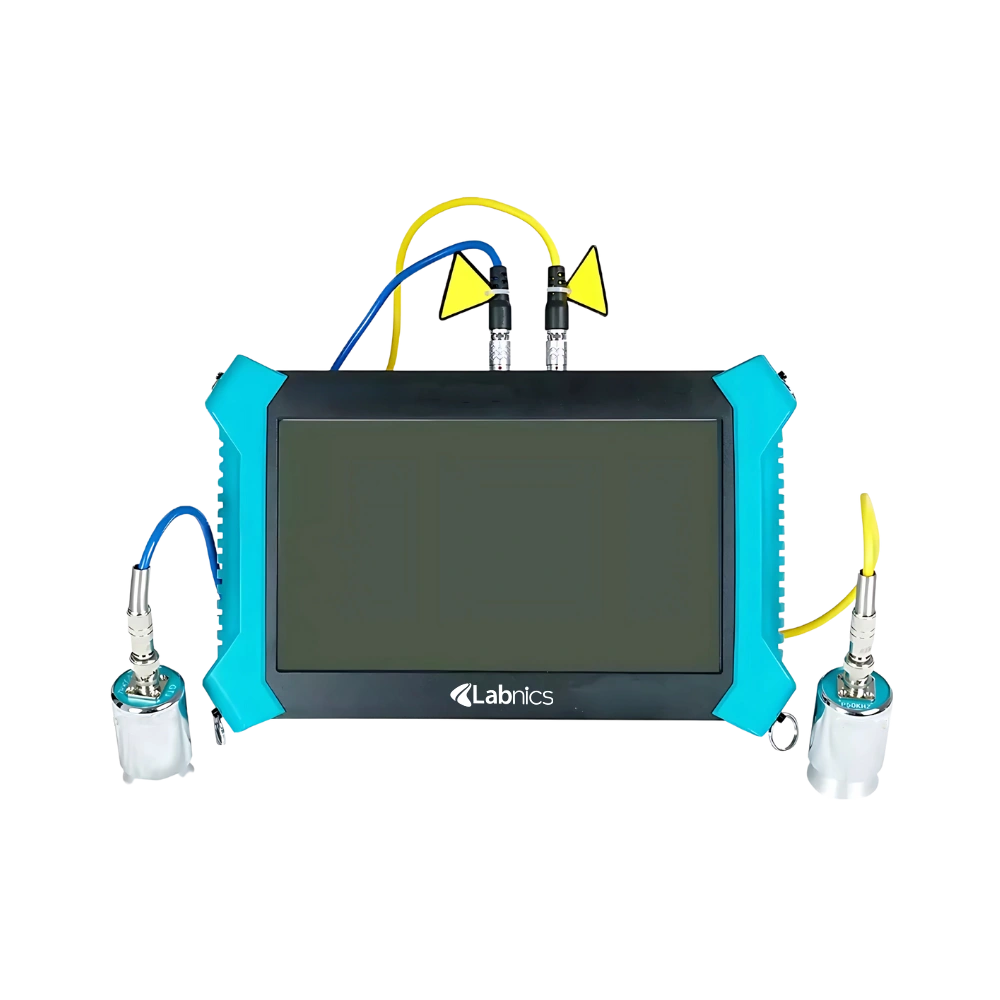

Ultrasonic Pulse Velocity Tester NUPV-100 offers a crack width measurement range from 0 to 10 mm for precise structural evaluation. It operates in signal-triggering mode to ensure accurate signal capture. This unit works effectively in temperatures ranging from -10 to +40°C and humidity levels below 90% RH. It features a color LCD capacitive touchscreen that ensures a clear display and intuitive control. Our tester runs on a built-in lithium battery, providing convenient and portable operation.
$4,225.00
Specifications
| Width measurement range | 0 to 10 mm |
| Width measurement accuracy | 0.01 mm |
| Dynamic range | 146 dB |
| Bandwidth | 1 to 500 kHz |
| Receiving sensitivity | ≤10 UV |
| Gain accuracy | 0.5 dB |
| Acoustic time range | 1677700 µs |
| Acoustic time accuracy | 0.05 µs |
| Sampling period | 0.05 to 409.6 µs, Multistage options |
| Trigger mode | Signal triggering |
| Channel number | 1 transmit + 1 receive |
| Acquisition mode | Single-channel manual point-by-point acquisition |
| Data transmission mode | Wireless Cloud Transport (Options) |
| Working hours | ≥8 hours |
| Working temperature range | -10 to +40°C |
| Working humidity range | <90% RH |
| Master control unit | Built-in A9 industrial control motherboard |
| Display | 10.1-inch, high-brightness, TFT color LCD capacitive screen |
| Operational mode | Touch screen |
| Storage mode | Built-in electronic hard disk (> 8GB) + large capacity U disk |
| Communication interface | USB |
| Emission voltage | 65,250,500 and 1000V, 4-gears adjustable |
| Power supply | Built-in lithium battery External 220V to 16V, AC/DC |
| Product dimension | 300×200×55mm |
| Packaging dimension | 480×210×380mm |
| Net weight | 11 kg |
| Gross weight | 13 kg |
Features
Applications

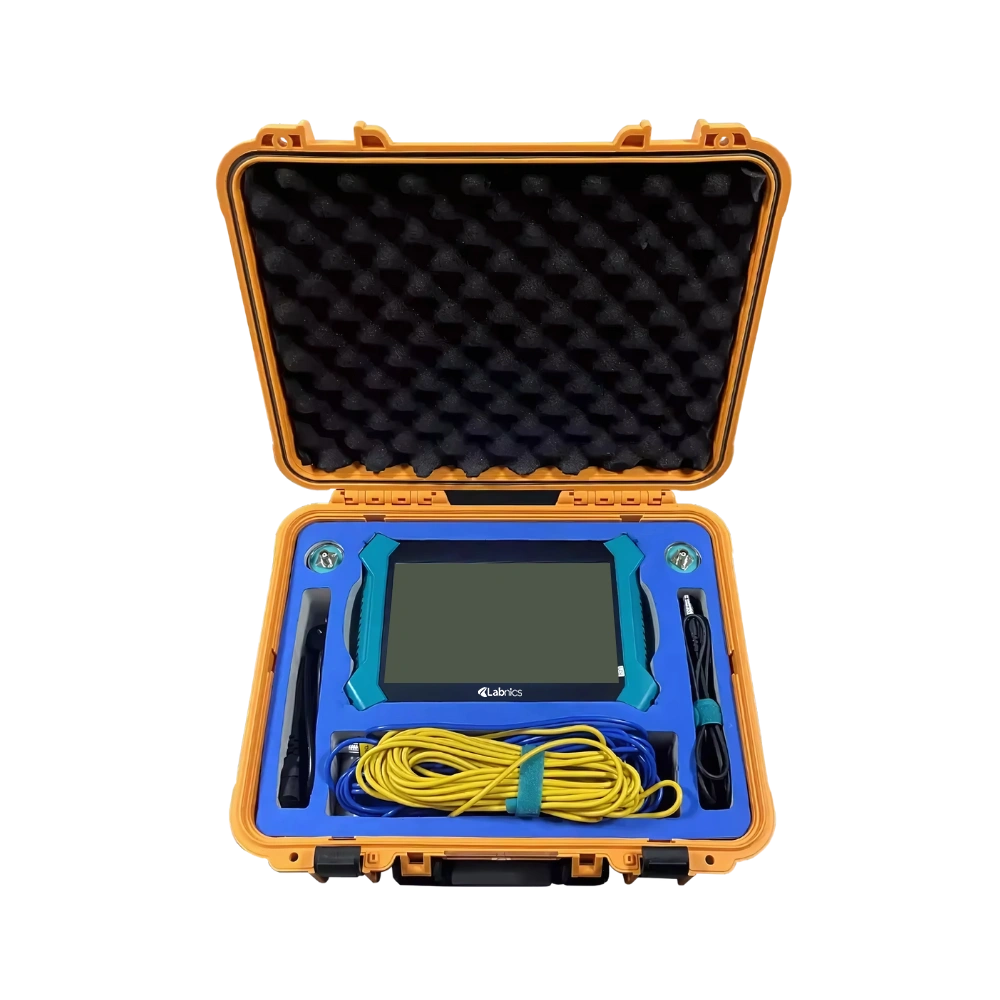

Standard Accessories
Engineering box- 1pc
Probe- 2pcs
Camera-1pc
Touch pen-1pc
Probe signal line- 2pcs
Camera signal line- 1pc
Crack calibration card- 1pc
Host charger- 1pc
Host bracket-1pc
Host strap- 1pc
U disk- 1pc
Ask Expert
FAQ for Ultrasonic Pulse Velocity Tester NUPV-100
1: How is the data stored and transferred?
Our Ultrasonic Pulse Velocity Tester includes built-in electronic storage with over 8GB capacity and supports external USB drives for additional storage. It also offers optional wireless cloud transmission, enabling convenient data sharing and backup.
2: What types of testing functions does the Ultrasonic Pulse Velocity Tester NUPV-100 support?
The Ultrasonic Pulse Velocity Tester integrates multiple functions including pile integrity testing, rebound strength measurement, crack depth and width analysis, and defect detection. This makes it a comprehensive solution for non-destructive evaluation of structures.
3: What kind of materials can the Ultrasonic Pulse Velocity Tester NUPV-100 test?
Our Ultrasonic Pulse Velocity Tester is specifically designed for non-metallic materials like concrete, rock, and structural components. This makes it ideal for construction quality assessment and geological surveys.
4: Is the Ultrasonic Pulse Velocity Tester NUPV-100 durable for repeated on-site use?
Yes, the Ultrasonic Pulse Velocity Tester is built with industrial-grade components, including an A9 industrial control motherboard and a durable casing. It is made to withstand the rigors of fieldwork and frequent transportation.
5: What is the best way to clean the Ultrasonic Pulse Velocity Tester after use?
Use a soft, dry cloth to clean the surface and touchscreen. Avoid using solvents or water directly on the device, especially around the screen and connectors.
6: Does the Ultrasonic Pulse Velocity Tester support external data transfer or connectivity?
Some models offer USB or wireless data transfer features, enabling results to be easily exported to external devices. This simplifies documentation and analysis when working with large sets of test data. It also improves productivity when generating reports or collaborating with teams.
7: How long does the battery last during use?
The rechargeable battery is built for long-lasting performance and supports continuous use over extended periods. This is especially helpful for full-day operations on construction sites. Charging is simple, and the device retains power efficiently between uses.
8: Is professional training required to operate this Ultrasonic Pulse Velocity Tester?
The Ultrasonic Pulse Velocity Tester is designed for ease of use, and only basic guidance is needed to operate it effectively. The digital interface, clear layout, and automated calculations reduce the learning curve.
9: How should the Ultrasonic Pulse Velocity Tester be stored when not in use?
Store the Ultrasonic Pulse Velocity Tester in its protective carrying case to avoid dust, moisture, or physical damage. It should be kept in a dry, cool place away from direct sunlight. Proper storage extends the life of the device and ensures it's ready for the next use.
