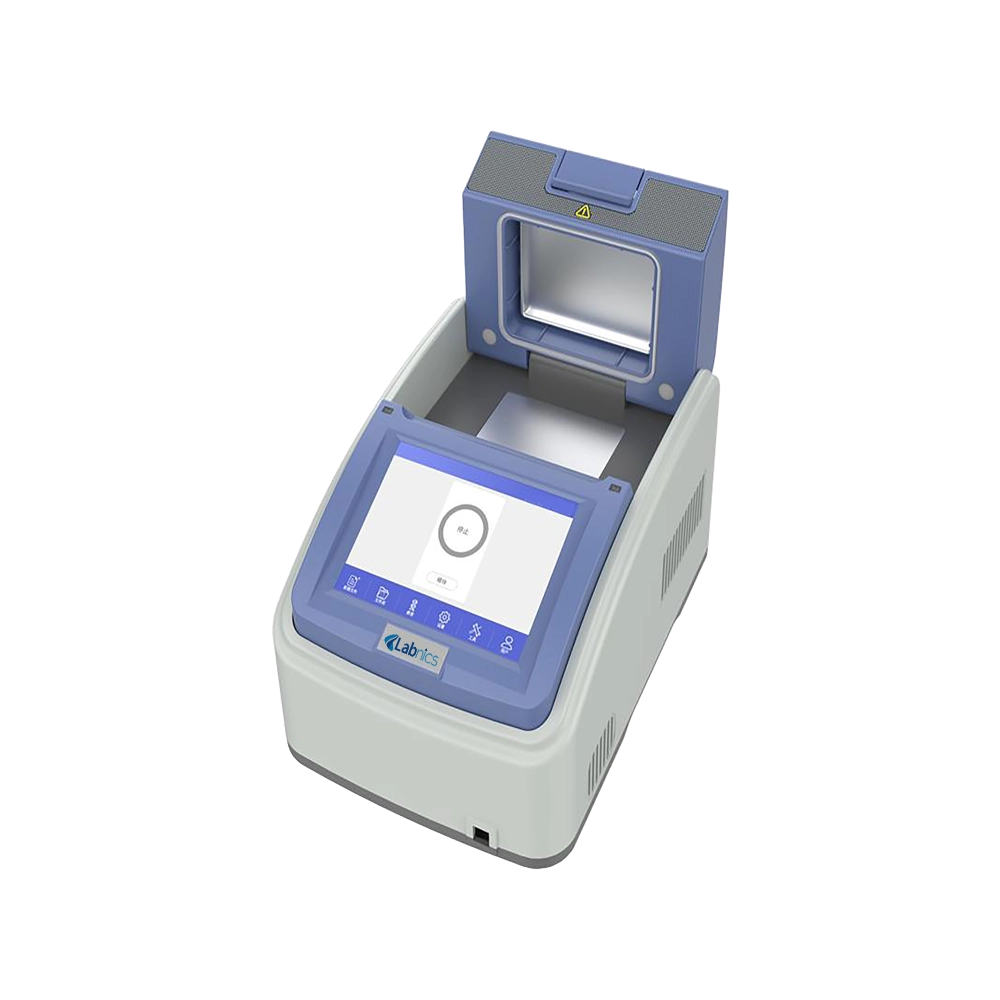

Touch Thermal Cycler NTTC-100
Touch Thermal Cycler NTTC-100 offers a broad temperature range of 0 to 105°C for precise thermal regulation. It has six durable Peltier units for accurate control over three temperature zones. This Thermal Cycler provides multiple block options for different sample sizes, ensuring versatility. Our includes a one-click incubation feature for effortless operation. It has a clear 8-inch LCD for easy navigation and real-time monitoring.
| Capacity | 120 × 80 mm |
| Temperature range | 0 to 105°C |
| Maximum ramp rate | 4°C/s |
| Uniformity | ≤ ±0.2°C |
| Accuracy | ≤ ±0.1°C |
| Display resolution | 0.1°C |
| Temperature control | Block\ Tube |
| Ramping rate adjustable | 0.1 to 4°C |
| Hot lid height | Stepless adjustable |
| Number of programs | 10000+ (supports USB flash) |
| Maximum number of steps | 30 |
| Maximum number of cycles | 200 |
| Time increment/decrement | 1 second to 600 seconds |
| Temperature increment/decrement | 0.1 to 10.0°C |
| Hold at 4°C | Yes |
| Other Functions | Long PCR function, Mobile APP and PC software control function, Email notification |
| Language | English |
| LAN connection to a computer | Yes |
| LCD | 8-inch, 800×600 pixels |
| Communication | USB 2.0, LAN, WIFI |
| Power Consumption | 600W |
| Power supply | 100-240VAC, 50-60Hz |
| Dimensions (L×W×H) | 390 × 270 × 255 mm |
| Weight | 9 kg |
Touch Thermal Cycler is used for precise temperature cycling in DNA amplification during PCR. It is commonly used in research laboratories, clinical diagnostics, and molecular biology applications.
| PCR Type | Gradient |
| Capacity | 96 × 0.2 ml |
| Temperature Range | 0°C ~105°C |
| Heating Rate | 5°C /s |
| PCR Type | Gradient |
| Capacity | 6 × 16 × 0.2 ml |
| Temperature Range | 0°C ~105°C |
| Heating Rate | 5°C /s |
| PCR Type | Gradient |
| Capacity | 96 × 0.2 ml |
| Temperature Range | 0°C ~105°C |
| Heating Rate | 5°C /s |
| PCR Type | Gradient |
| Capacity | Double 48×0.2ml |
| Temperature Range | 0°C ~100°C |
| Heating Rate | 5°C /s |
| PCR Type | Gradient |
| Capacity | 96 × 0.2 ml (6 independent 16-well block) |
| Temperature Range | 4°C-100°C |
| Heating Rate | 6°C /s |
| PCR Type | Gradient |
| Sample Volume | 96 × 0.2 ml |
| Consumable Type | Half-skirted plate<br/> Non-skirted plate<br/> 12×8 strip tubes<br/> 8×12 strip tubes<br/> single tube |
| Technology Program | Thermoelectric semiconductor technology |
| Sample capacity | 0.1ml PCR tubes × 96, 8×12 PCR plate or 96 well plate ×1 |
| Reaction volume | 10-50 µl |
| Maximum Heating/Cooling rate | 6 °C/s |
| Heating Temperature Range | 4 °C - 100 °C |
| Sample Capacity | 96 × 0.2ml |
| Consumable Type | 0.2ml single tube<br/> 8 × 0.2ml tube strip<br/> 96-well plate |
| PCR Volume Range | 15 to 120μL |
| Temperature Range | 4°C to 100°C |
