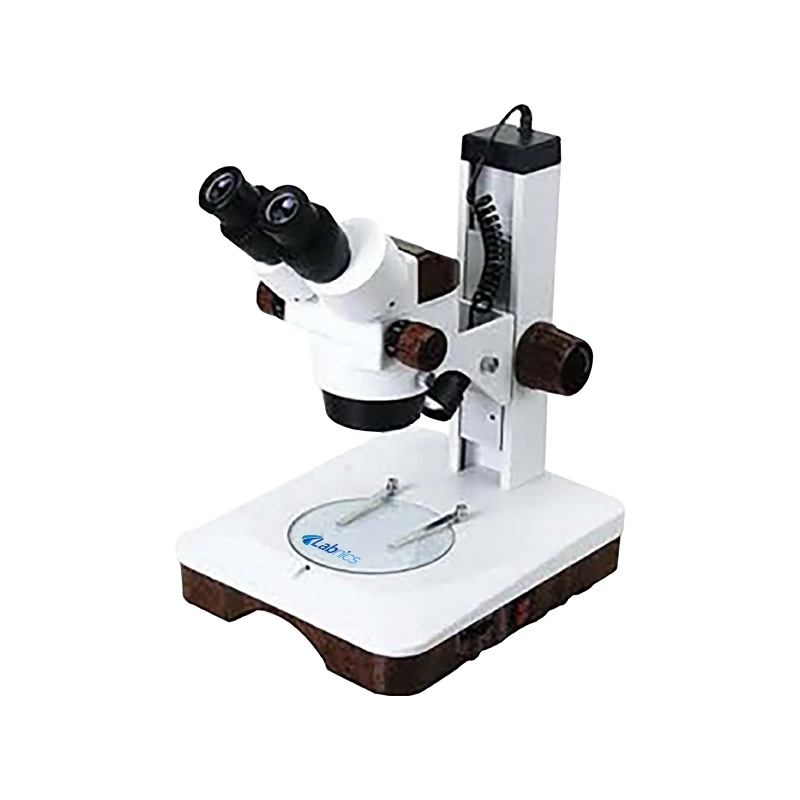

Stereo Microscope NSM-103
Stereo Microscope NSM-103 is an optical instrument with low magnification aids in three-dimensional surface screening of opaque or relatively thick specimens. It is equipped with a working stage made of a fine glass material to hold the specimen under study in place. It is featured with a brightness knob to regulate the desired amount of light illumination for the better visualization of attributes
| Objective | 0.7X-4.5X |
| Eyepiece | Wide field Plan-scope Eyepiece: WF10X/20mm |
| Head | Articulated free Binocular Head, Interpupillary Distance:55-75mm,45°Inclined, 360°Rotatable |
| Working Distance | 100mm |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque, Range:85mm |
| Illumination | Top and Bottom 3.5V/1W LED Light, Light Adjustable Separately |
| Packing Dimensions (W×D×H) | 420×210×500mm |
| Net Weight | 5kg |
Stereo microscope is widely used in world agriculture, as well as in electronic component manufacturing, especially suited for LED, PCB inspection, pressing plating and electronic component inspection.
WF15X, WF20X
Auxiliary Objective: 0.5X,0.75X,1.5X,2X
External Ring Light
Electronic Eyepiece 1.3Mp ,3.0Mp
