Stereo Microscope NSM-100

Stereo Microscope NSM-100

Stereo Microscope NSM-100

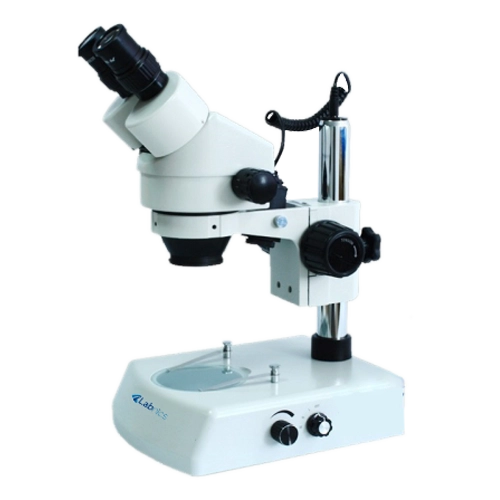

Stereo Microscope NSM-100 is an optical instrument with low magnification aids in three dimensional surface screening of opaque or relatively thick specimens. It is equipped with a working stage made of a fine glass material to hold the specimen under study in place. It is featured with a brightness knob to regulate the desired amount of light illumination for the better visualization of attributes.


Optical System Zoom achromatic objective stereo optical system
Viewing Head View tube Binocular, Hinge inclination 45 °, rotating 90°
IPD adjustment 55mm ~ 75mm
Zoom ratio 0.04587962962963
Eyepiece WF10X (Ø20mm)
Objective 0.7-4.5X
Magnification 7X-45X
Working distance 100mm - 200mm
Depth of field 15mm
Base plate diameter Ø95mm
Dimensions of Stage 200 × 255 cm
Overall Dimensions 40×44×30 cm
Power supply 220 V, 50 Hz
Voltage AC 100V-240V, DC 5V/2A
Weight 7.5kg



It is utilized for detailed observations of opaque specimes like coins, fossil samples, mineral specimens, crystals, etc. Also used for anatomical or structural study of plant surfaces, moths, butterflies etc.

Standard Accessories

Accessories No Name
1 Dust Cover

Optional Accessories

Accessories No Name
1 14X-90X Objective lens
2 28X-180X Objective lens
