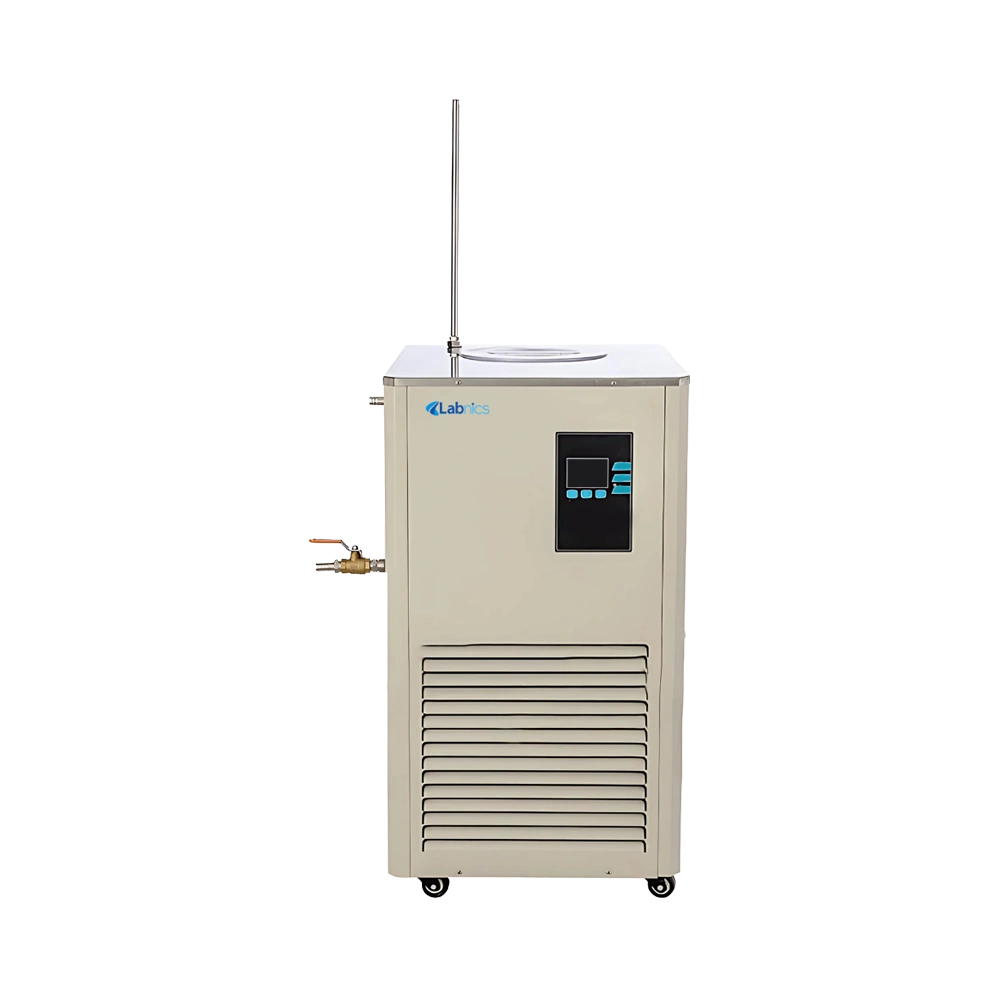

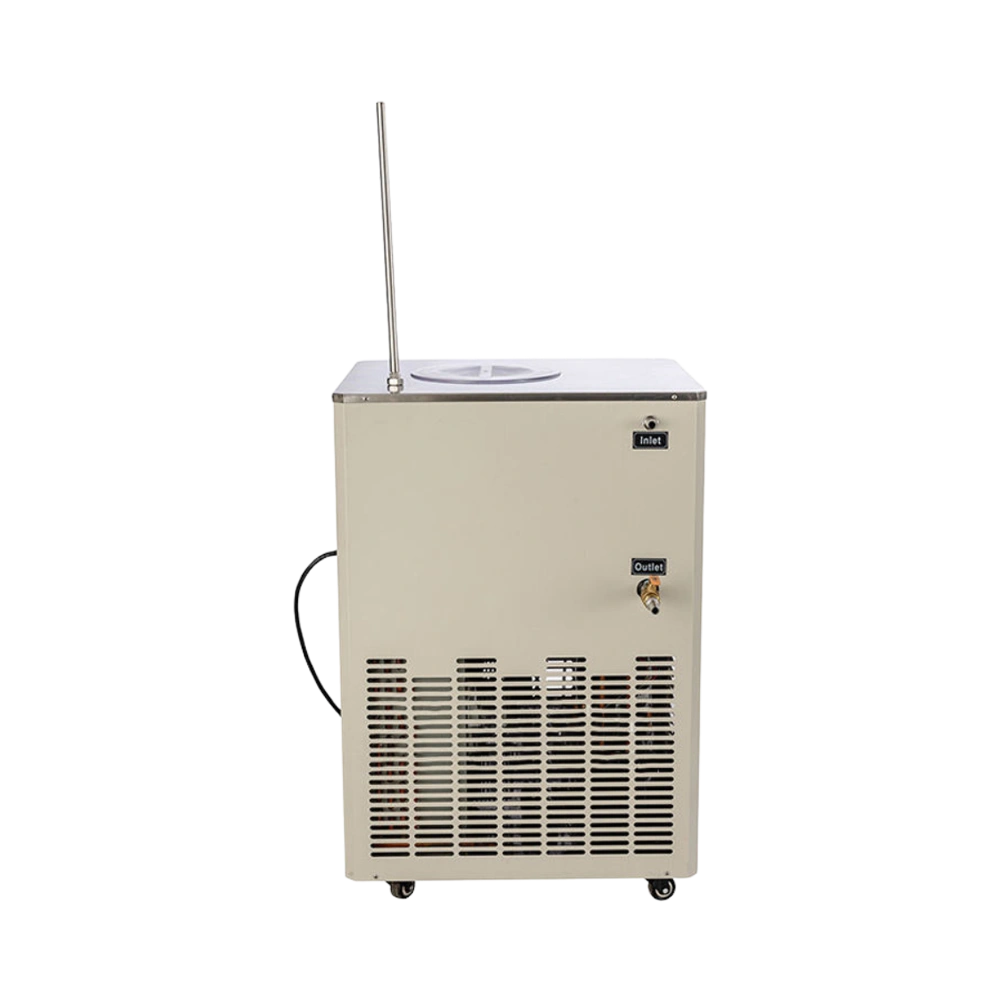

Recirculating Chiller NRC-211 supports a wide temperature range from -80°C to room temperature for versatile cooling applications. It offers a tank capacity of 33 liters to ensure continuous circulation. This unit incorporates a digital temperature display for precise monitoring and control. It tolerates ambient humidity up to 70 %, maintaining stable performance. Our chiller is constructed from cold plate material with an anti-corrosion spray coating for long-lasting durability.
$9,475.00
Specifications
| Tank capacity | About 33L |
| Temperature range | -80°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 15.2㎡ |
| Air volume | 3050m³/h |
| Refrigerant | R22 |
| Condensing coil | Φ12 Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 2P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 4410W |
| Cooling capacity | 13944W |
| Total power consumption | 4691W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ350×350 mm |
| Product dimension | 770×930×(1090+500) mm |
| Packaging dimension | 990×810×1250 mm |
| Net weight | 199 kg |
| Gross weight | 241 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-211
1: Does the Recirculating Chiller NRC-211 offer precise temperature control?
Yes, our Recirculating Chiller includes a digital temperature display and a microcomputer control system for accurate temperature regulation. This ensures stable and consistent performance during operation.
2: Can the flow rate be adjusted?
The Recirculating Chiller features an adjustable flow circulating pump, allowing customization based on the requirements of specific applications. This flexibility helps meet the needs of various instruments and setups.
3: What types of equipment can the Recirculating Chiller NRC-211 be used with?
Our Recirculating Chiller can be combined with rotary evaporators, vacuum freeze-drying boxes, and multi-purpose circulating water vacuum pumps. This makes it versatile for different laboratory and industrial processes.
4: What steps should be taken to clean the Recirculating Chiller NRC-211?
Use a soft, dry cloth to wipe the exterior and avoid using harsh chemicals. Ensure the ventilation openings are free from dust and debris to support proper airflow.
5: How should the Recirculating Chiller be stored when not in use?
Turn off the Recirculating Chiller completely and disconnect it from the power source. Drain the tank and circulating lines, clean the surfaces, and store it in a dry, well-ventilated area away from direct sunlight.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
