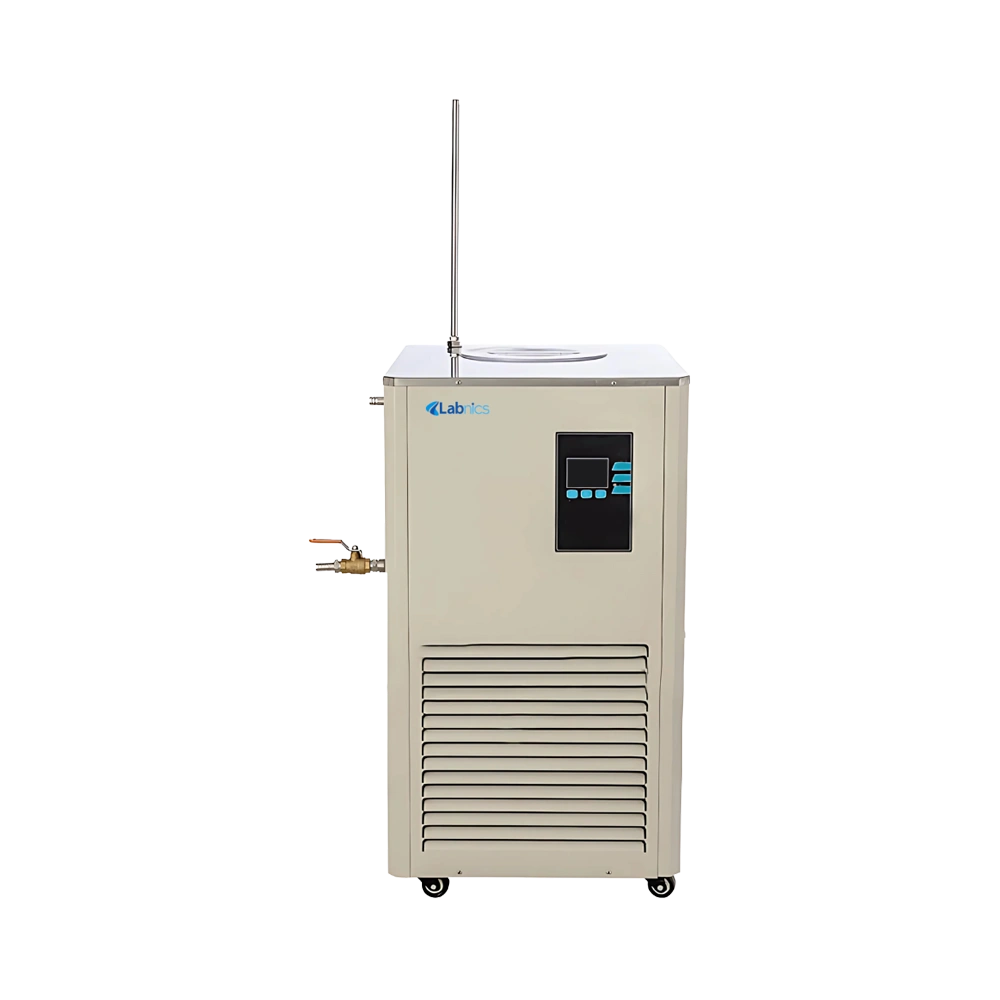

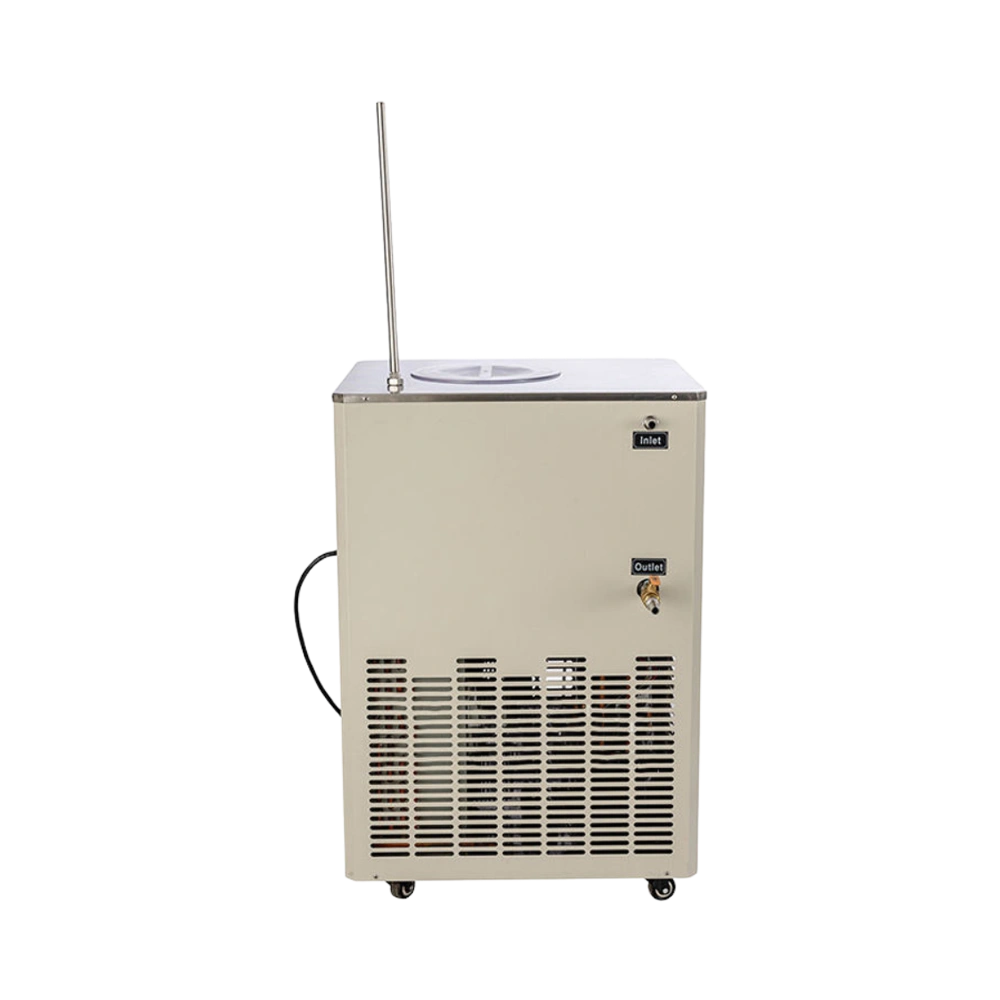

Recirculating Chiller NRC-202 delivers reliable performance across a temperature range of -30°C to RT for consistent cooling needs. It utilizes a PT100 sensor to maintain high-precision temperature control. This unit accommodates a 14-liter tank capacity to support long operational cycles. It offers user-friendly interaction through an LCD control panel with a clear display and settings. Our chiller resists corrosion effectively with its robust cold plate spray-coated construction.
$2,963.00
Specifications
| Tank capacity | About 14L |
| Temperature range | -30°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 6.9㎡ |
| Air volume | 1030m³/h |
| Refrigerant | R22 |

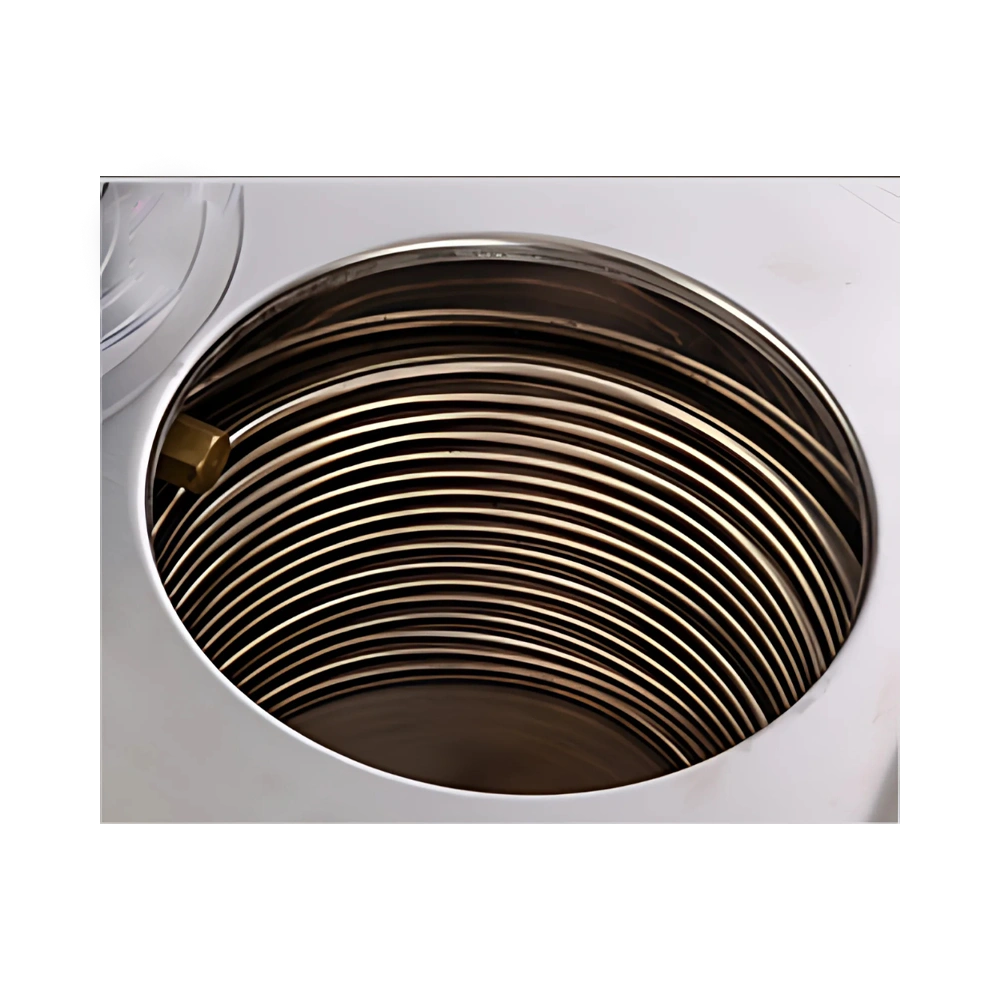

| Condensing coil | Φ10Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 735W |
| Cooling capacity | 2324W |
| Total power consumption | 925W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ16mm |
| Tank dimension | Φ300×200 mm |
| Product dimension | 490×570×(730+500) mm |
| Packaging dimension | 620×500×930 mm |
| Weight | 58 kg |
| Packaging weight | 74.5 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-202
1: Can the Recirculating Chiller NRC-202 be integrated with other lab equipment?
Yes, our Recirculating Chiller can be paired with rotary evaporators, reaction vessels, and other laboratory systems. This versatility makes it a valuable addition to any lab setup.
2: What kind of protection features does the Recirculating Chiller NRC-202 include?
Our Recirculating Chiller includes safety features like delay start, overcurrent, and overheating protection. These ensure safe operation and protect both the device and connected systems.
3: How efficient is the cooling process?
The Recirculating Chiller provides strong cooling capacity and rapid temperature reduction. This helps improve overall work efficiency, especially in time-sensitive applications.
4: Is the Recirculating Chiller NRC-202 energy-efficient?
Yes, our Recirculating Chiller operates with optimized power consumption while maintaining high performance. This makes it a cost-effective solution for continuous cooling requirements.
5: Do I need to change the circulating fluid regularly?
Yes, the circulating fluid should be replaced periodically to avoid contamination and ensure efficient heat transfer. The replacement frequency depends on the fluid type and operating conditions.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
