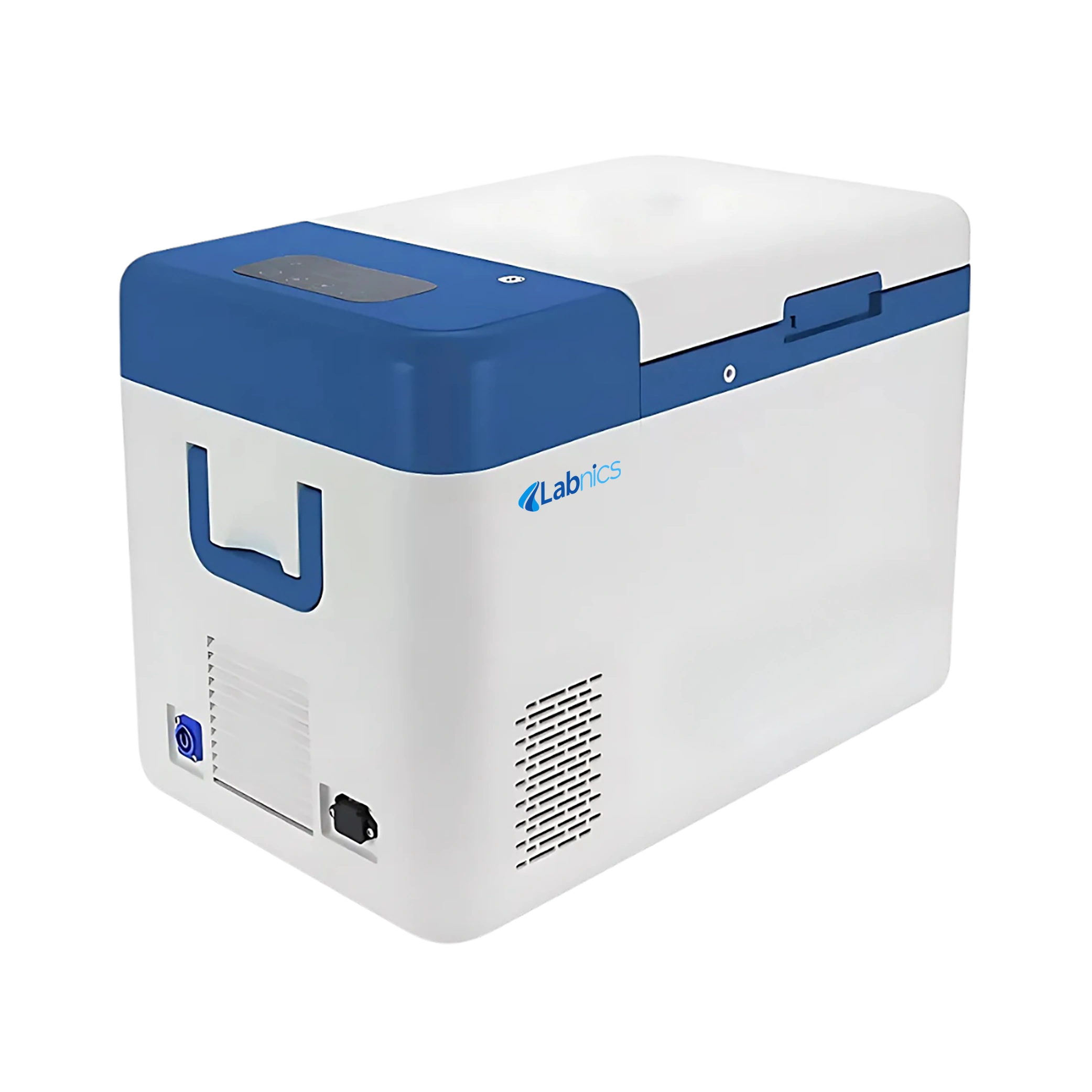

Portable ULT Freezer NPUF-101 provides a temperature range from 18℃ to -60℃ for reliable ultra-low storage. It offers a 25-liter capacity to store essential samples and materials. This unit incorporates a gravity-driven thermosiphon as its heat transport system for stable cooling. It is equipped with a lockable lid to ensure safety and security. Our freezer includes both warm and cold alarms, giving timely alerts to protect stored items.
$2,738.00
Specifications
| Storage capacity | 25L |
| Temperature range | 18℃ to -60℃ |
| Ambient temperature | 25°C, Empty cabinet |
| Temperature control capability | Target temperature ±1℃ |
| Time | Take 2.5 hours from 25℃ to -60℃ |
| conditions | Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m (Temperature 5℃ to 35℃, maximum relative humidity 80%) |
| Refrigerant | Helium |
| Heat transport system | Gravity-driven thermosiphon |
| Cooling engine | Free-piston stirling cooler |
| Insulation | High-performance vacuum-insulated panels, polyurethane foam |
| Control sensor | One RTD (PT100 Class B), precision±0.3 |
| Security | Lockable lid |
| Warm and cold alarms | Setpoint ±10℃ |
| Defrost method | Manual |
| Noise | <55 dB |
| Steady state energy | 40W |
| Maximum power consumption (current) | 100W (0.5A at 220V, 4.6A at 24V) |
| Power supply | 100V AC to 240V AC; 50Hz,60Hz; 12V DC to 24V DC |
| Internal dimension | 300×250×300 mm |
| External dimension | 616×392×455 mm |
| Packaging dimension | 710×480×530 mm |
| Net weight | 17.5 kg |
| Shipping weight | 21 kg |
Features
Applications
Ask Expert
FAQ for Portable ULT Freezer NPUF-101
1: What safety features are included with the Portable ULT Freezer NPUF-101?
Our Portable ULT Freezer is designed with a lockable lid to prevent unauthorized access and keep stored materials safe. It also features warm and cold alarms to alert users if the temperature deviates beyond the set range.
2: How energy efficient is this Portable ULT Freezer?
The Portable ULT Freezer operates with only 40W of steady-state energy consumption, making it cost-effective and environmentally friendly. It also supports multiple power sources, including AC and DC, for flexible use in different settings.
3: How reliable is the insulation in this Portable ULT Freezer NPUF-101?
Our Portable ULT Freezer is built with high-performance vacuum-insulated panels and polyurethane foam, which minimize energy loss and maintain stable internal temperatures. It ensures reliable preservation even in demanding environments.
4: How durable is the Portable ULT Freezer NPUF-101 for long-term use?
Our Portable ULT Freezer is designed with robust construction, high-quality insulation, and reliable cooling technology to ensure long service life. It delivers dependable performance even under frequent usage.
5: What should be done when the warm or cold alarm activates?
Our Portable ULT Freezer is important to immediately check if the lid is properly closed and ensure there is no power supply issue. It is advisable to monitor the internal temperature and take corrective action to safeguard stored samples.
6: Can the Portable ULT Freezer operate in extreme outdoor conditions?
Yes, our Portable ULT Freezer is built with rugged materials and insulation that withstand harsh conditions. Combined with dual power support, it remains dependable even when used in challenging field environments.
7: What type of samples can be stored in the Portable ULT Freezer?
The Portable ULT Freezer is suitable for preserving biological specimens, vaccines, clinical samples, pharmaceutical products, and research materials. Its ultra-low temperature range ensures secure long-term preservation of temperature-sensitive materials.
8: What kind of maintenance does the Portable ULT Freezer require?
Regular maintenance includes periodic cleaning of the interior chamber, inspection of seals, and monitoring of temperature calibration. Accessible components and a durable design make servicing simple and efficient.
9: How secure is the sample storage in these Portable ULT Freezers?
The Portable ULT Freezer comes with strong locking mechanisms, durable construction, and secure compartments. Combined with precise temperature control and alarms, samples remain safe from both physical and environmental risks.
Labnics Portable ULT Freezers come in multiple capacities to accommodate diverse storage requirements. They use high-density insulation to reduce thermal loss and ensure uniform cooling. These units feature a user-friendly digital interface for precise temperature monitoring and control. They operate on dual power modes, making them reliable in various settings. Our freezers are built with durable construction to withstand frequent movement and field use.
