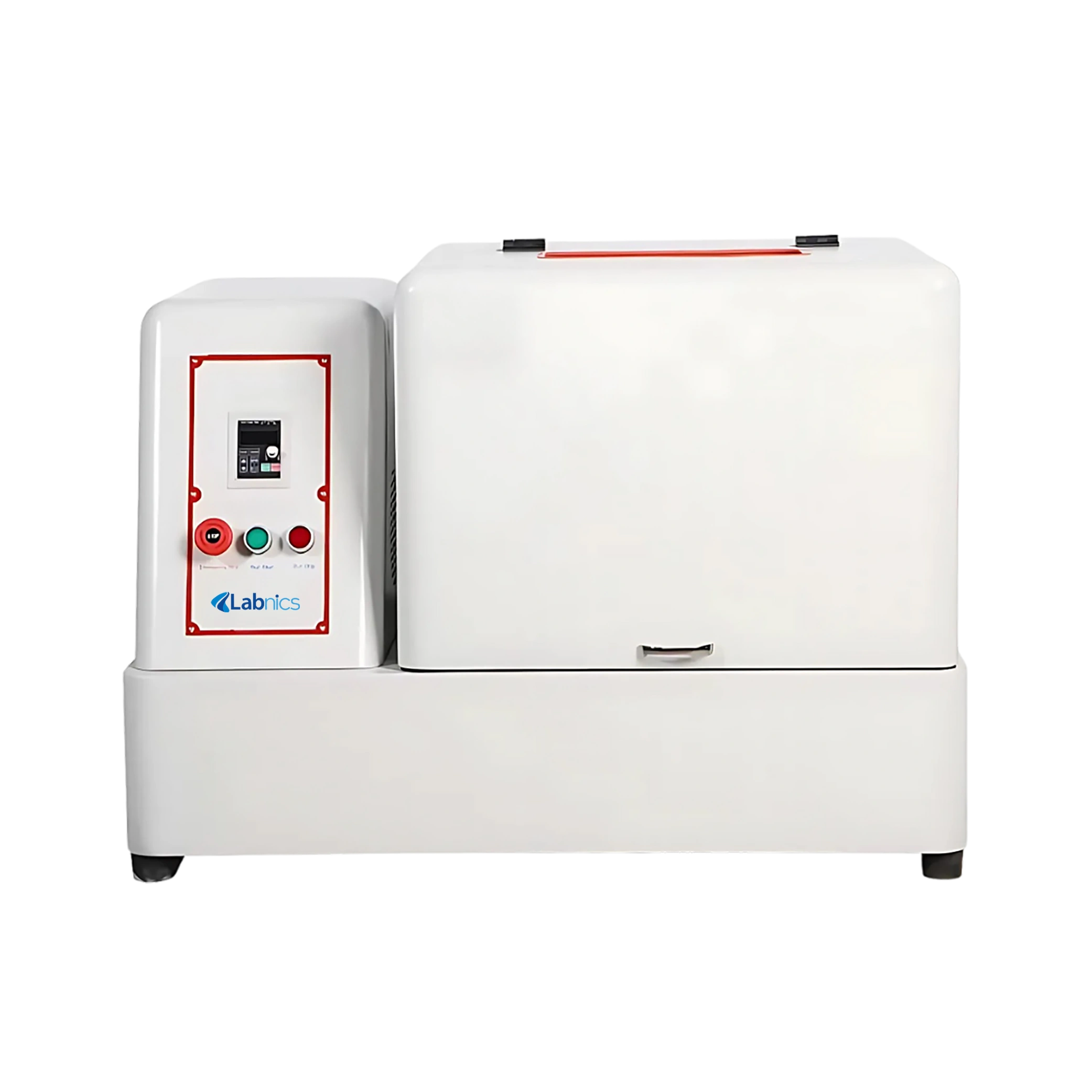

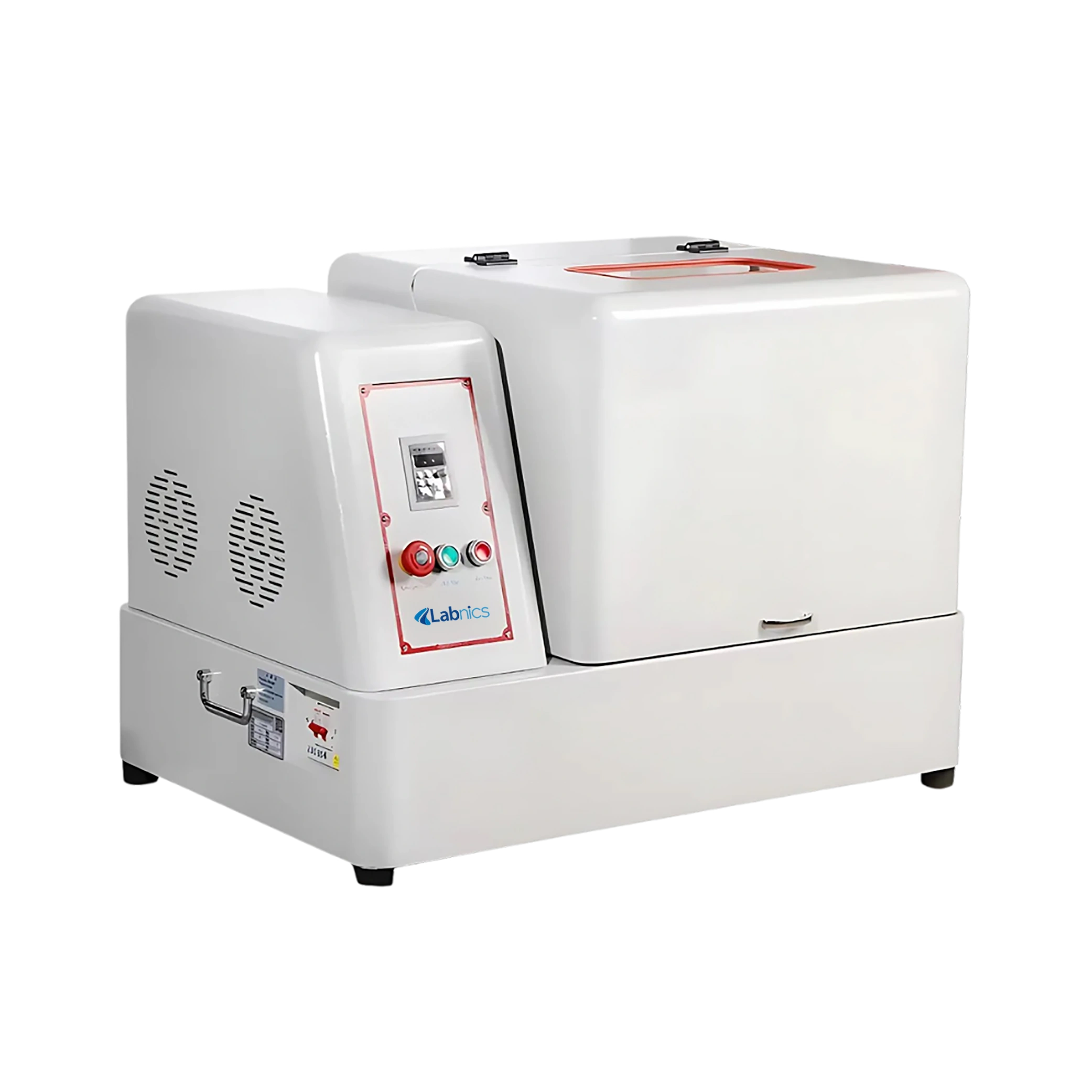

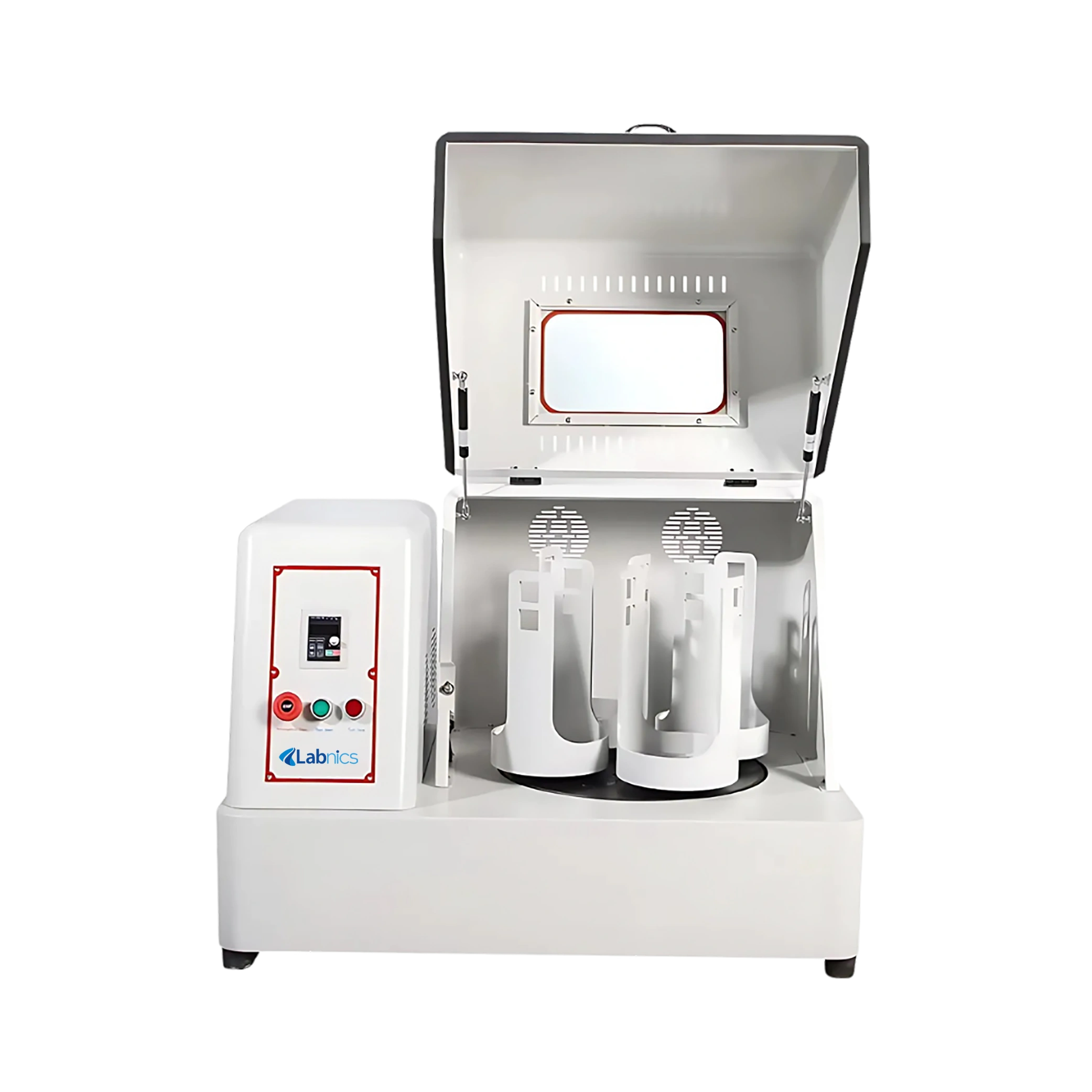

Planetary Ball Mill NPBM-300

Planetary Ball Mill NPBM-300

Planetary Ball Mill NPBM-300 is designed with jar capacities of up to 8000 ml, allowing large-volume grinding. It delivers a revolution speed of 35 to 290 rpm and a rotation speed of 70 to 580 rpm. This unit employs a gear transfer system to ensure stable power transmission. It integrates a high-efficiency cooling fan for quick heat dissipation. Our ball mill uses a pneumatic holder to secure jars and maintain uniform pressure during operation.


$4,413.00

Catalog

Specifications

Jar capacity 8000ml, each jar maximum 2000ml
No. of jars accommodated 2 to 4 pcs
Vacuum jar capacity 250 to 1000 ml
Revolution speed 35 to 290 rpm
Rotation speed 70 to 580 rpm
Speed ratio 2:1 rpm
Run set time 1 to 9999 min
Forward and reverse running time 1 to 999 min
Feed particle size Solid material <15mm, Other material <3mm
Transfer method Gear transfer
Working method 2 or 4 ball mill tanks work at the same time
Maximum charge 2/3 volume of the grinding jar
Speed control mode Frequency conversion speed regulation
Control system Frequency conversion control system
Noise <60dB±5
Grinding jar optional Zirconia, Agate, Corundum, Nylon, Stainless steel, Polyurethane, Tungsten Carbide Alloy, Teflon
Total power consumption 1.5kW
Power supply AC220V 50Hz
Dimension 900×600×640mm
Net weight 150 kg

Features

  • High-speed accuracy
  • Forward/reverse function
  • Low noise level
  • Durable main plate
  • Long service life
  • Multi-jar compatibility
  • Enhanced airflow system

Applications

  • Planetary Ball Mill NPBM-300 is used for fine grinding, mixing, and homogenizing of materials under high-energy and controlled conditions. It is commonly applied in laboratories, research centers, material science facilities, and industrial quality control departments.

Ask Expert

FAQ for Planetary Ball Mill NPBM-300

1: What materials can the grinding jars be made from?

The Planetary Ball Mill supports a wide variety of jar materials, including Zirconia, Agate, Corundum, Nylon, Stainless Steel, and more. This gives you the freedom to choose based on your application.

2: What safety features are included in the Planetary Ball Mill NPBM-300?

Our Planetary Ball Mill includes overcurrent and undervoltage protection to safeguard both the user and the equipment. These features ensure reliable operation under varying electrical conditions.

3: How noisy is the Planetary Ball Mill NPBM-300 during use?

The Planetary Ball Mill operates at a noise level below 60 dB±5, which keeps your work environment quiet. This makes it suitable for use in laboratories and clean spaces.

4: Can the Planetary Ball Mill NPBM-300 run in both directions?

The Planetary Ball Mill supports both forward and reverse running with customizable timing from 1 to 999 minutes. This dual-direction feature ensures better mixing and uniform grinding.

5: Is the structure durable?

Our Planetary Ball Mill features an integrally formed main plate and planetary structure for long-term durability. The sturdy build supports stable rotation and reduces wear during heavy use.

6: How easy is it to operate the Planetary Ball Mill?

The Planetary Ball Mill features a user-friendly control panel designed for straightforward operation. Its intuitive settings make it accessible for both experienced users and beginners, reducing setup time and errors.

7: Is this Planetary Ball Mill suitable for producing nano-sized powders?

Yes, the powerful impact and friction forces generated by the planetary motion enable ultra-fine grinding down to the nanometer scale. This capability supports advanced research and high-precision applications.

8: Can the jars be easily replaced or cleaned?

The jars are designed for easy removal, replacement, and cleaning to maintain hygiene and prevent cross-contamination. This feature also supports quick turnaround between different grinding tasks.

9: Does the Planetary Ball Mill require regular maintenance?

Regular maintenance is minimal and mainly involves cleaning the jars and checking mechanical components. Keeping the mill clean ensures consistent grinding quality and prolongs the equipment’s lifespan.

Related Models Of Planetary Ball Mill

Labnics Planetary Ball Mills are designed for high-efficiency fine grinding and mixing of small sample materials. They use a unique planetary motion that generates powerful impact and friction forces, enabling ultra-fine grinding. These units offer multiple jar capacities for versatile batch processing. They are made from durable materials to withstand rigorous conditions. Our ball mills include a tempered glass window for safe and clear observation of the process.
