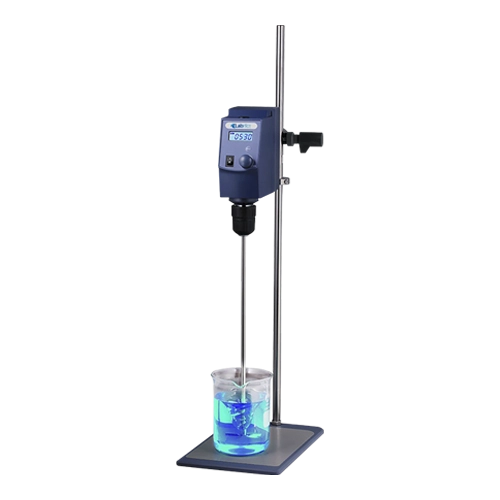

Overhead Stirrer NOHS-102
Overhead Stirrer NOHS-102 is an overhead, motor-driven agitation equipment designed for emulsification or homogenization of a compound mixture. It is equipped with a unique shaft stirrer design that helps in the mixing of viscous liquid mixtures with high shear stress. The microprocessor-controlled system ensures safe operation during voltage fluctuations and regulates the speed at desired levels.
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
| Stir speed | 50-2200rpm |
| Stir speed accuracy | ±3rpm |
| Permissible Ambient Temperature | 5-40°C, 80%RH |
| Maximum viscosity | 10000mPas |
| Voltage | 100V-240V, 50/60 Hz |
| Power | 70W |
| Max. torque | 30Ncm |
| Display | LCD |
| Interface | RS232 |
| Overall dimensions (L×W×H) | 83 × 220 × 186 mm |
| Weight | 2.8 kg |
It is widely used essential laboratory equipment in areas like Analytical and Organic Chemical laboratories and industries such as petroleum, paint, medicine, environment protection, biochemistry, education and scientific research etc.
| Work plate Dimension | φ135mm (5 inches) |
| Work plate material | Stainless steel with ceramic coat |
| Motor type | Brushless DC motor |
| Motor rating input | 5W |
| Work plate Dimension | 184 ×184 mm |
| Work plate Material | Glass ceramic |
| Heating Position | 1 |
| Heating Output | 1000W |
| Top plate dimension | 180×180mm |
| Stirring capacity | 50ml-5000ml |
| Maximum temperature for top plate | 325°C |
| Temperature Range | Ambient to 400°C |
| Top plate dimension | 280×280mm |
| Stirring capacity | 50ml-15000ml |
| Maximum temperature for top plate | 325°C |
| Temperature Range | Ambient to 400°C |
| Work plate material | Glass ceramic |
| Work plate size | 184 × 184 mm |
| Stirring Capacity | 1 L – 10 L |
| Heating output | 1000 W |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Magnetic bar length | 80 mm |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Magnetic bar length | 80 mm |
| No of Positions | 3 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-1000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 3 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-5000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 3 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-10000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 3 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-15000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-1000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 500ml-5000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-10000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-15000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 4 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-1000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 4 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-5000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 4 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-10000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Positions | 4 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-15000ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Points | 5 |
| Stirring Bar Speed Range | 100~1800rpm each point |
| Stirring Bar Capacity for each position | 5×50ml-250ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
| No of Points | 10 |
| Stirring Bar Speed Range | 100~1400rpm each point |
| Stirring Bar Capacity for each position | 50ml-250ml |
| Stirring Bar Speed Accuracy | ±1 rpm |
