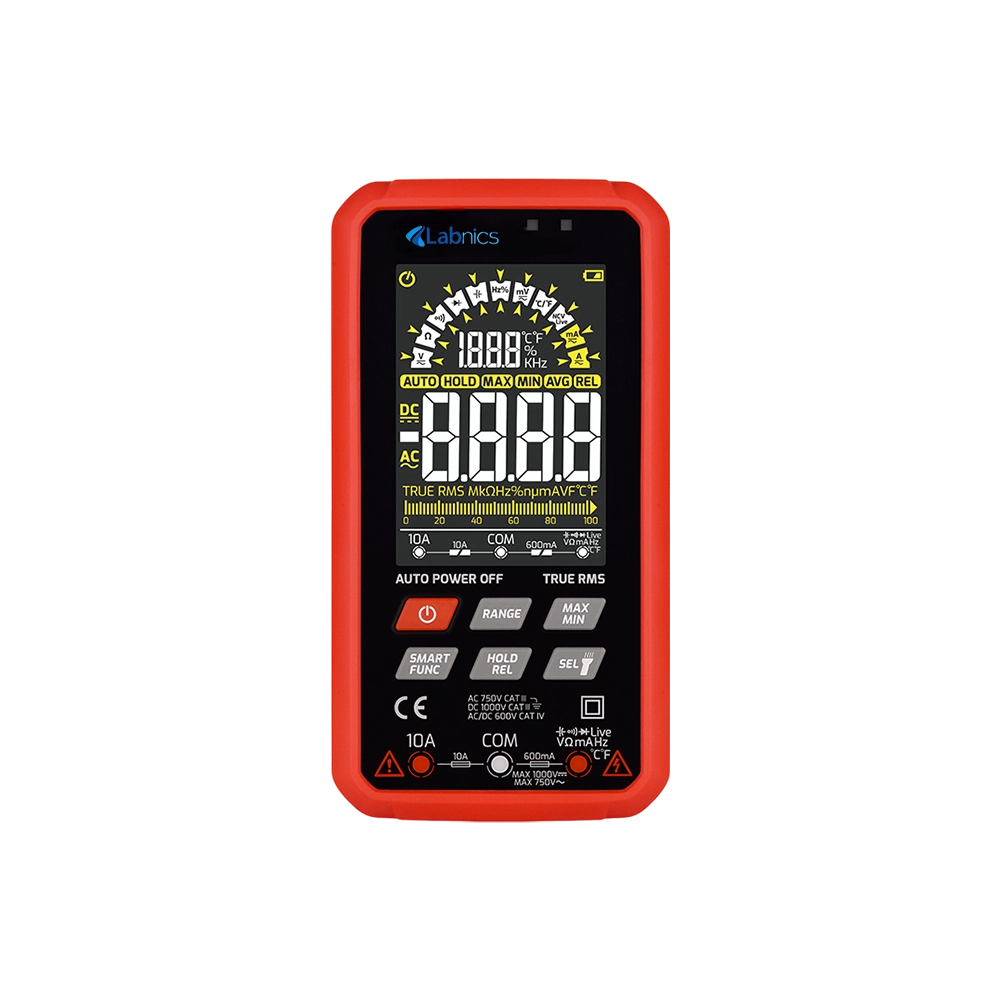

Digital Multimeter NDMM-100 measures DC voltage from 0.01 mV to 1000 V and direct current from 0.001 mA to 10 A for versatile functionality. It operates effectively within a working temperature range of 0 to 40°C. This meter is equipped with a 3.4-inch LCD color screen for enhanced visibility and accurate readings. Our unit offers relative value measurement to set a reference point and measure variations for easy comparisons.
Specifications
| DC voltage | 0.01mV to 1000V/± (0.5%+5) |
| AC voltage | 0.01mV to 750V/± (0.8%+5) |
| DC current | 0.001mA to 10A/± (1%+2) |
| AC current | 0.001mA to 10A/± (1%+2) |
| Resistance | 0.1Ω to 100MΩ / ± (1.5%+2) |
| Capacitance | 0.01nF to 100000µF/ ± (4.0%+5) |
| Frequency | 10Hz to 10MHz/± (0.1%+5) |
| Duty Circle | 10 to 95%/± (1.0%+5) |
| Range mode | Auto identification / Manual |
| Temperature measurement | 40 to 1000°C (-40 to 1832°F)/± (1.0%+3) |
| Working environment | 0 to 40°C; max 80%RH, indoor altitude <2000m |
| Storage environment | -10 to 60°C; max 70%RH (battery removed) |
| Other functions | Records the maximum, minimum, and average values Analog bar Live wire detection Diode measurement Continuity |
| Screen size | 73 × 53 mm |
| Display | 9999 counts |
| Power | Lithium battery 4 1.5V AAA |
| Dimensions | 148 × 76 × 19 mm |
| Weight | 2.35g (Battery not included) |
