Muffle Furnace NMF-400 features a 5.4 L capacity and a maximum temperature of 1500°C. It offers programmable temperature control for precise heating adjustments. This unit is equipped with multiple cooling fans to prevent overheating. It includes reinforced hinges for stable and secure door locks. Our Muffle Furnace has a ceramic fiber construction that makes it lightweight and energy efficient.
$10,825.00
| Capacity | 5.4 L |
| Working Temperature Range | RT+30 to 1600°C |
| Maximum Operating Temperature | 1500°C |
| Heating Rate | 30 to 50°C/min |
| Temperature Fluctuation | ±2°C |
| Power Consumption | 8 kW |
| Power Supply | 380 V |
| Internal Dimensions | 150 × 300 × 120 mm |
| External Dimensions | 650 × 870 × 1565 mm |
| Net Weight | 228 kg |
| Gross Weight | 243 kg |
User-friendly interface

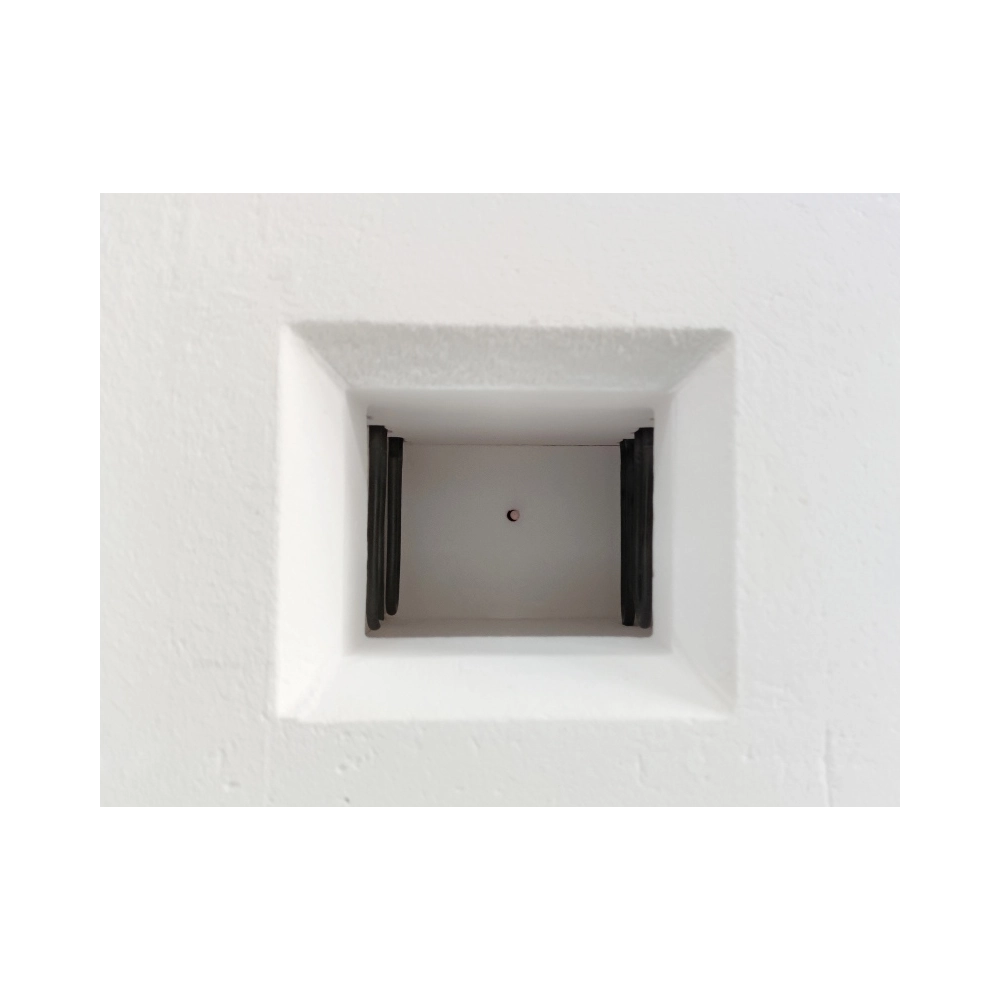

Well-insulated chamber
Multiple temperature control programs
Easy maintenance
Compact design
Muffle Furnace NMF-400 is used for heat treatment, sintering, ashing, and calcination in material testing, ceramics, and metallurgy. It also supports chemical, pharmaceutical, and environmental applications.
Smart touchscreen controller
Printer
Chimney
