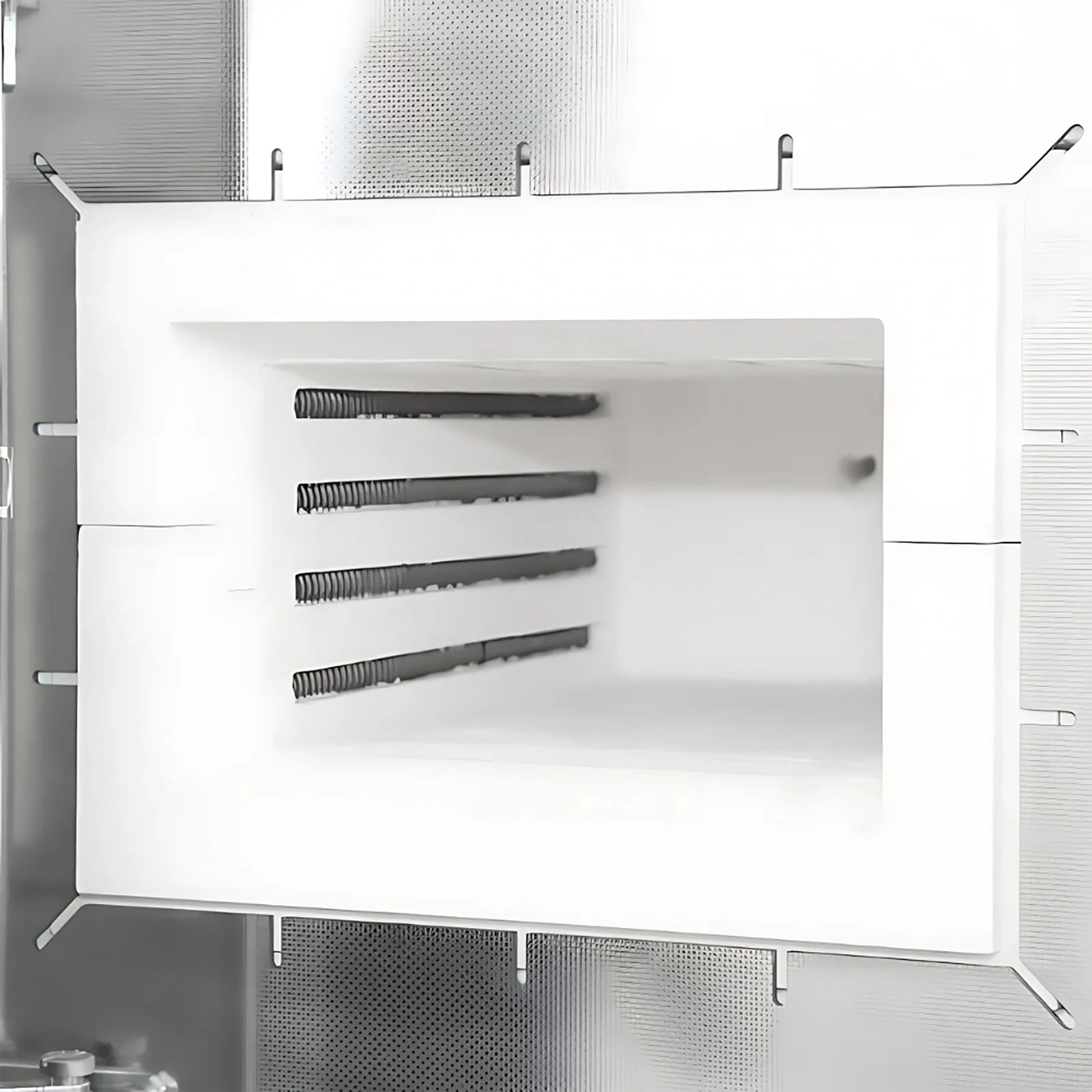

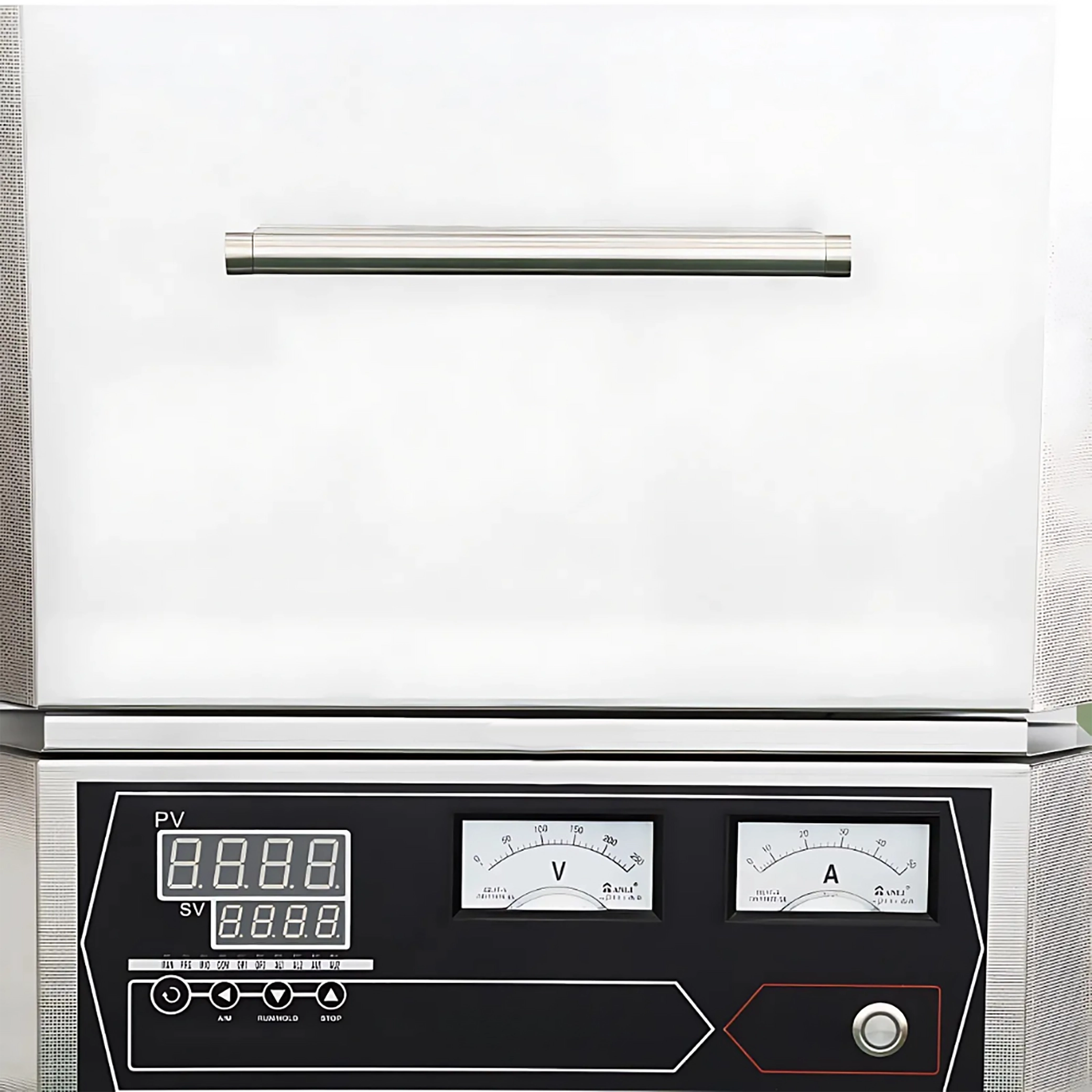

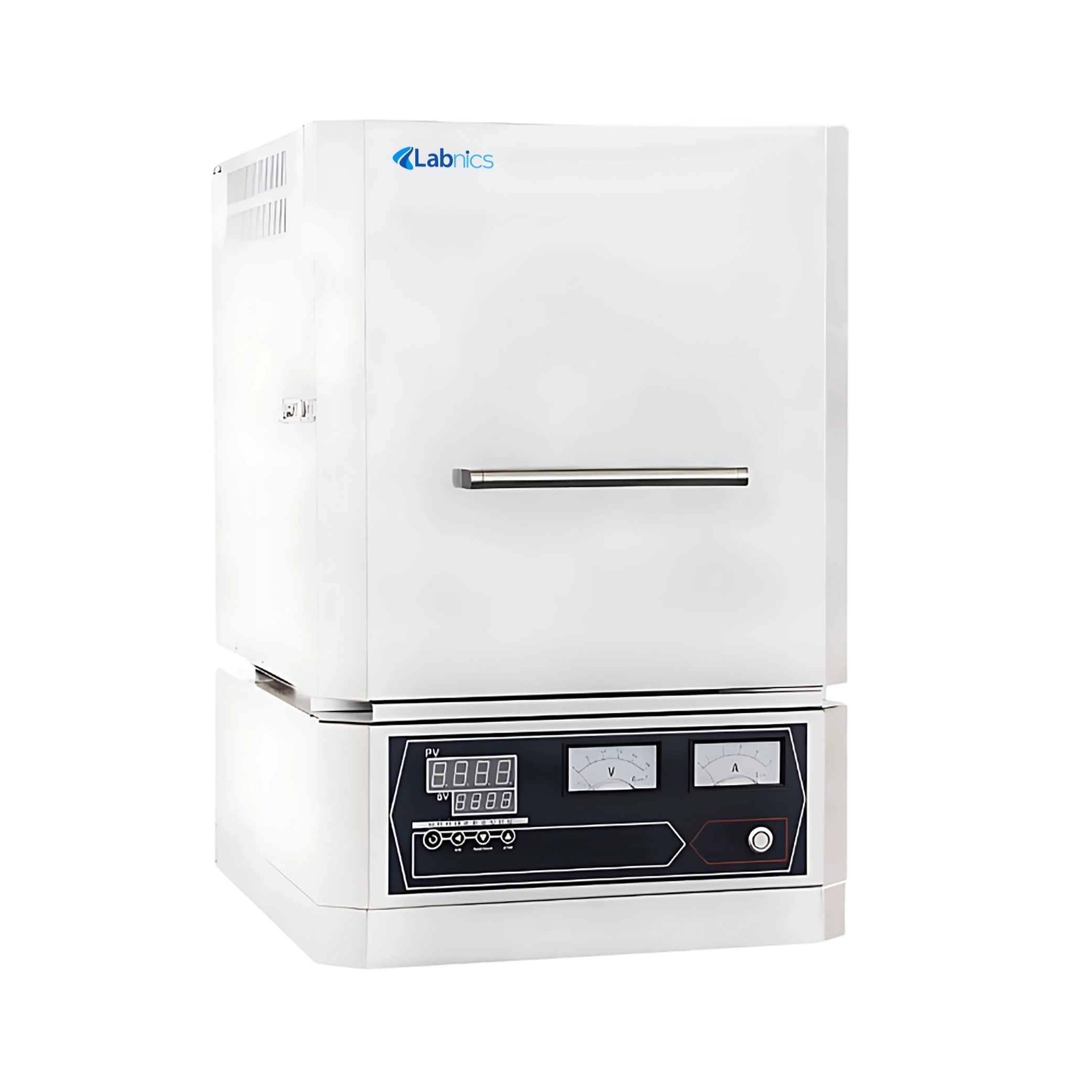

Muffle Furnace NMF-301 provides precise heating with a 12 L capacity and a maximum temperature of 1200°C. It includes an outer wall ventilation design to maintain a stable shell temperature. Our furnace has a cooling fan to prevent circuit overheating. It features a digital display program controller for precise temperature control with multiple segments. This unit has an insulation layer made of alumina anvil for efficient heat retention.
$3,888.00
| Capacity | 12 L |
| Maximum Temperature | 1200°C |
| Operating Temperature | 1100°C |
| Temperature Fluctuation | ±1°C |
| Heating Up Time | 60 minutes |
| Temperature Uniformity | ±10°C |
| Power Consumption | 4 kW |
| Power Supply | 220 V |
| Internal Dimensions | 300 × 200 × 200 mm |
| External Dimensions | 570 × 480 × 775 mm |
| Net Weight | 90 kg |
| Gross Weight | 106 kg |
Automatic power-off function
User-friendly monitoring
Energy-efficient operation
Strong oxidation resistance
Durable construction
Leakage protection mechanisms
Our Muffle Furnace is used for heat treatment, material testing, and ash analysis in labs and industries. It also supports ceramic processing, gravimetric analysis, and carbon-sulphur testing.
