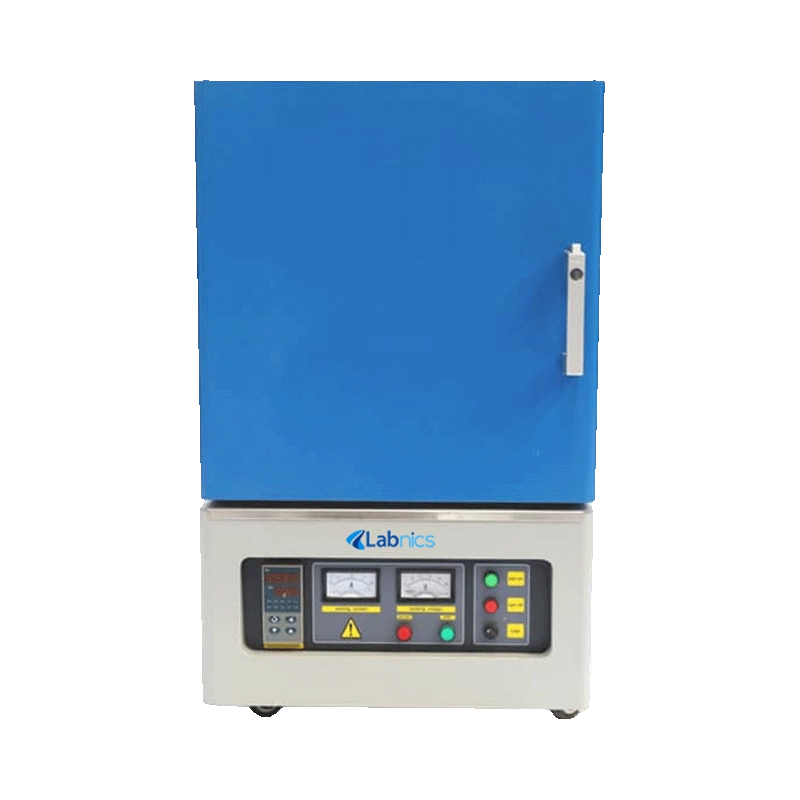

Muffle Furnace NMF-205 operates at a temperature of 0 to 1100℃ with an accuracy of ± 1℃. Utilizes advanced PID regulation to accurately maintain and control the temperature. Constructed from high-quality alumina polycrystalline fiber, formed through vacuum suction filtration for structural integrity. It features a double-layer forced air cooling structure to maintain internal temperature below 60℃ for safe and efficient operation.
Specifications
| Operating Temperature | 0 to 1100℃ |
| Maximum Temperature | 1200℃ |
| Temperature accuracy | ± 1℃ |
| Capacity | 12L |
| Heating element | Nickel chrome high-quality resistance wire |
| Heating rate | 10℃/min |
| Temperature Control | 30 segments programmable and PID auto control |
| Power Consumption | 6KW |
| Power Supply | 220V |
| Chamber Dimension (D ×W × H) | 300 × 200 × 200 mm |
| Packaging Dimension | 860 × 630 × 1030 mm |
| Weight | 112KG |
Features
Applications
Standard Accessories
