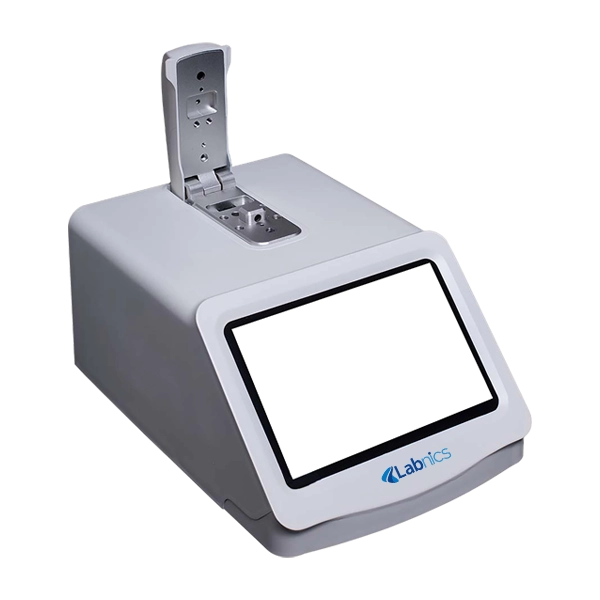

Microvolume Spectrophotometer NMVS-101

Microvolume Spectrophotometer NMVS-101

Microvolume Spectrophotometer NMVS-101

Microvolume Spectrophotometer NMVS-101, also referred to as low volume, small volume or nano-spectrophotometer, is a fast and reliable instrument designed for measurement of a sample concentration speedily in less than 5 seconds. The model features small footprint and touchscreen control for easy laboratory setup with minimal investment of time, cost, and effort. The built-in micro-volume sample port allows for working with sample volumes as little as 1-2µL. One-swipe cleaning streamlines allows you to quickly move from sample to sample resulting in better workflow.


Detector 3864 linear CCD array
Light source Long-life pulsed xenon flash lamp
Wavelength range 190-850nm
Wavelength accuracy ±1nm
Wavelength resolution 2nm (FWHM at Hg 546nm)
Sample volume 0.3-2.0μl
Path length 1/0.5/0.05mm (automatic conversion)
Absorbance range 0.002-300 (equivalent to 10mm)
Absorbance accuracy 1% (0.76 absorbance at 350nm)
Absorbance precision 0.002 Abs
Measurement time < 5 seconds
Nucleic acid measurement range 0.4-15000 ng/μl ds-DNA
Protein measurement range 0.01-400mg/ml, BSA
Power supply AC 110/220V ±10%; 50/60Hz
Dimensions 530 × 430 × 480mm
Weight 7 kg


  • High-definition touch screen display of data results
  • Built-in fibre to eliminate evaporation, cross-contamination and sample carryover
  • Built-in WIFI for remote assistance and USD port for data transmission
  • Unlimited printing of test results and permanent data saving feature
  • Stainless steel and quartz fibre platform
  • Win10 operating system with convenient and quick interface


It is an ideal instrument which is widely used in Research laboratories, Research Organizations or Institutes for educational purpose, QC laboratories.
