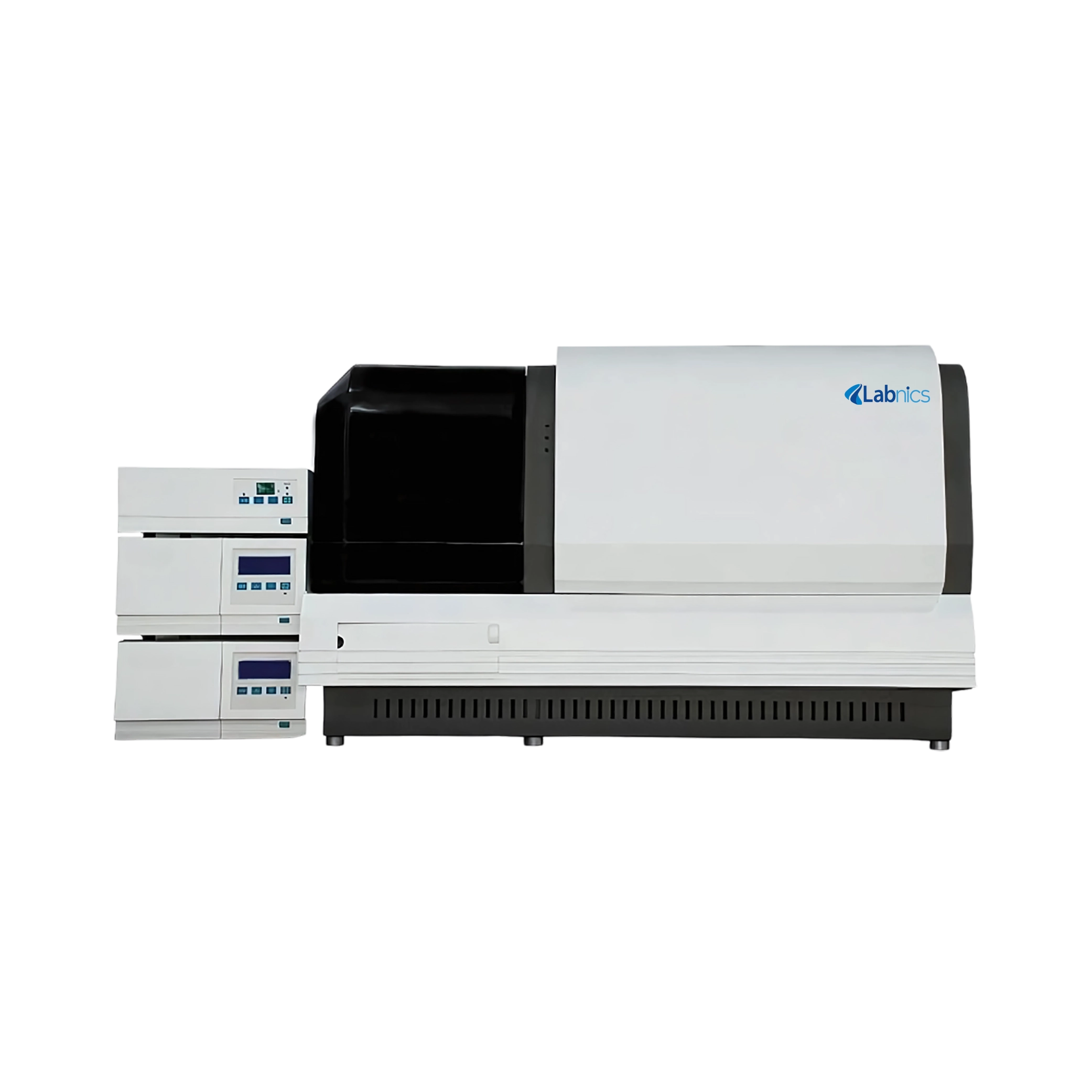

Liquid Chromatograph Mass Spectrometer NLMS-100 is a single quadrupole analytical instrument that combines Liquid Chromatography and Mass Spectrometry. It involves mobile as well stationary phase and effectively separates the sample depending on the weight and affinity for the mobile and stationary phases of the column Equipped with a multi-channel acquisition function, it provides a solution with high selectivity, reliability, productivity, and sensitivity for testing a wide range of materials, from volatile substances to refractory substances.
Specifications
Mass range (m/z) | 10-1500 |
Resolution | unit resolution (FWHM ≤ 0.7amu) |
Mass accuracy | ±0.20 amu (in the mass calibration range of scan mode) |
Mass axis stability | 0.20 amu/12h (under constant temp. of ± 2℃) |
Scanning rate | Standard mode: 1000 amu/s; Fast scan mode: 10000 aum/s |
SIM signal to noise ratio | ESI, 200 ul/min, SIM |
Positive ion mode | 10pg reserpine, S/N≥50:1 (RMS); 10pg chloramphenicol, S/N≥20:1 (RMS) |
Peak area repeatability | RSD ≤ 4.6% |
Retention time repeatability | RSD ≤1.5% |
Dimension (L × W × H) | 700 × 600 × 500 mm |
Weight | 65 kg |
