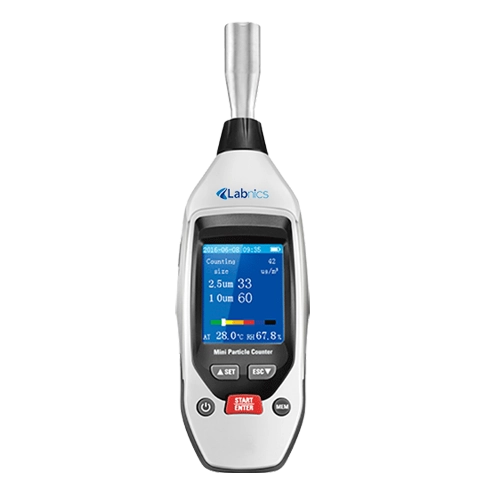

Laser Particle Counter NLPC-201
Laser Particle Counter NLPC-201 is a hand-held, battery-operated device used to measure the particle concentration in clean rooms and workplaces, both solid and liquid particles using laser technology. Designed with TFT LCD display, it provides fast and precise readings of particle mass concentration along with air temperature, dew point and relative humidity. These devices are extremely helpful to determine leak tests of HEPA filters, monitoring of filters in room ventilation systems, assessment of airborne dust concentration indoors, etc.
| Particle Channel | 2.5,10 μm |
| Mass Concentration | PM2.5: 0~500 ug/m3; PM10: 0~500 ug/m3 |
| Resolution | 1 ug/m3 |
| Temperature Range | 0 °C - 50 ℃ |
| Temperature Accuracy | ± 1 ℃ |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ± 3.5 % RH (20% RH ~ 80% RH) |
| Display | 2.0’’ TFT 220 × 176 pixels Colour LCD |
| Size (H x W x D) | 185 mm x 55 mm x 38 mm |
| Weight | 139 g |
Employed in technical filter measurements, leak tests of HEPA filters, monitoring of dust retention capacity of vacuum cleaners, room air and environmental measurements and monitoring of clean rooms.
| Flow Rate | 28 .3 L/min (Imported Pump) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 µm |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Environment Temperature | 10°C to 35°C |
| Flow Rate | 2.83 L/min (Imported Pump) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 µm |
| Sample Time | 1 to 10 min |
| Zero Count & le | 10 min |
| Flow Rate | 50 L / min import sampling pump |
| Sample Time | Between 6 to 999999 s optional (Selectable) |
| Alarm | Class |
| Operating Time | 5 hours |
| Flow Rate | 100 L / min (imported pump) |
| Sample Time | Between 0 to 999999 s (Selectable) |
| Alarm | Class |
| Operating Time | 3 hours |
| Test range | 0.1 μm to 800 μm |
| Number of detector channels | 70 |
| Accuracy error | 1% (National standard sample D50 value) |
| Repeatability error | 0.5% (National standard sample D50 value) |
Labnics Liquid Particle Counter are designed for the precise detection and analysis of particles in liquids across a broad size range. Our units are suitable for analyzing multiple samples simultaneously for enhanced performance. These Liquid Particle Counters provide automatic data storage and retrieval for efficient management of information. They include color touchscreens, allowing for easy operation and clear data visualization.
| Particle size range | 0.8 to 600 µm (calibrated according to 1-100um or 4-70um(c)) |
| Sensitivity | 0.1μm |
| Detection channels | 8 to 64 channels are optional, and the particle size can be set arbitrarily |
| Sampling volume | 0.2 to 1000ml<br/> Interval 0.1mL |
| Particle Size Range | 0.2 to 2 μm |
| Detection Channels | 16 |
| Maximum Concentration | 10000 particles/ml |
| Accuracy | ± 10% |
Labnics Portable Oil Particle Counter boasts a wide measurement range, capable of detecting particles making it versatile for different oil types. Our particle counters are integrated with optical or laser sensors to ensure reliable and repeatable measurements. They are designed for efficient and accurate monitoring of oil contamination levels in various industries. These are equipped with a user-friendly touchscreen interface, enabling quick navigation and real-time monitoring. Features built-in data logging and storage capabilities allowing users to track contamination levels over time and generate detailed reports. These are crafted with durable materials and withstand harsh environments, maintaining reliable performance.
| Particle Size Range | 0.8 to 600 µm |
| Detection Channel | 8 channels |
| Sampling Volume | 0.2 to 1000 mL |
| Sampling Accuracy | Better than ± 1% |
