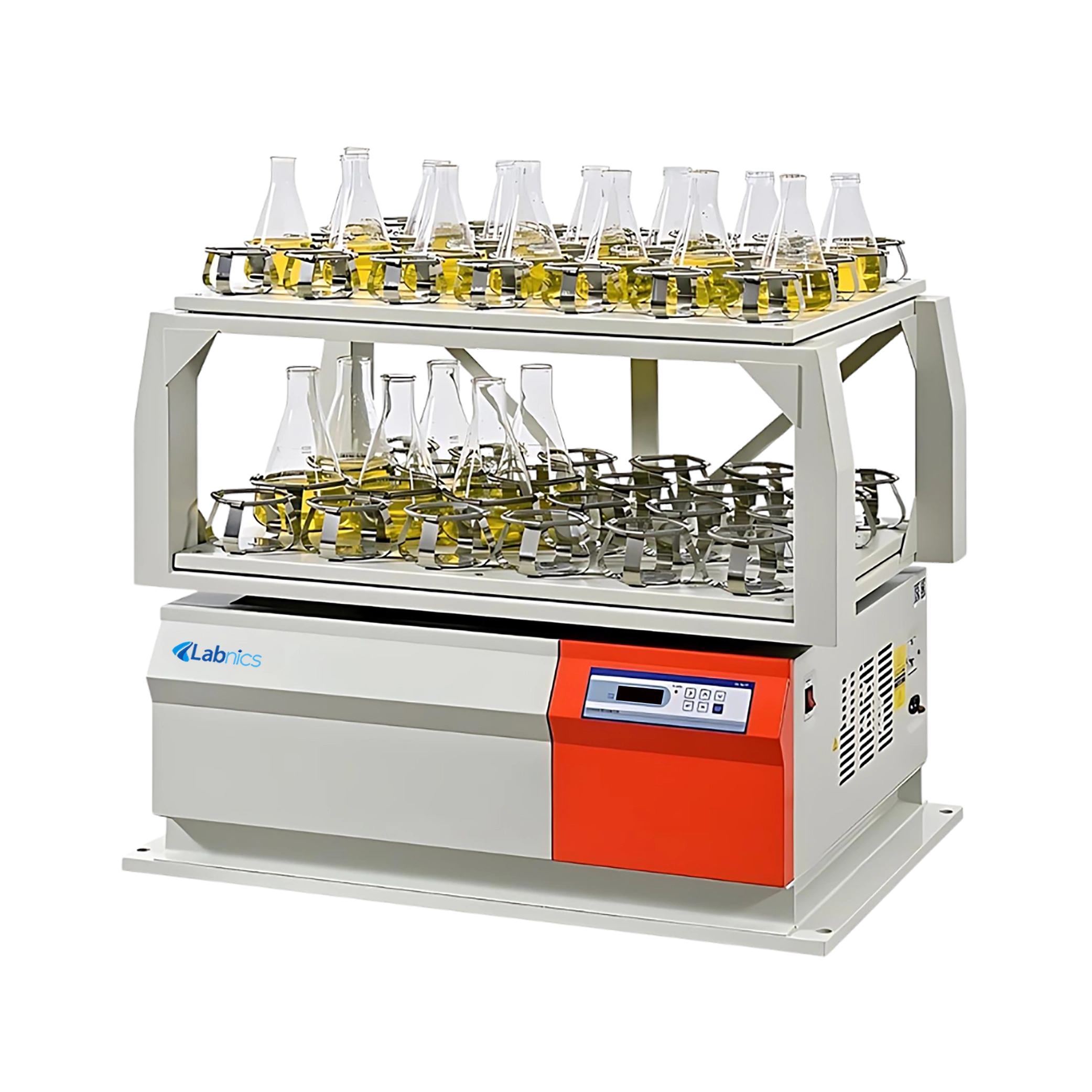

Large Capacity Orbital Shaker NLOS-200 is designed with two trays to support high-volume applications. It supports a maximum load of 1000 ml×48, 500 ml×70, and 250 ml×108. This unit operates within a rotation speed range of 30 to 300 rpm to deliver precise performance. It adopts natural convection circulation to maintain stable conditions throughout operation. Our shaker comes with an emergency stop function to ensure safety and reliable protection for users and samples.
$5,613.00
Specifications
| Maximum loading capacity | 1000ml×48 500ml×70 250ml×108 |
| Tray quantity | 2 |
| Rotation way | Rotary |
| Rotation speed | 30 to 300rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 50mm |
| Curve editing | 8-segment rotational speed programming setting |
| Timing range | 0 to 9999H/0 to 9999min |
| Display | 7-inch TFT touch screen HD |
| Control | P.I.D microcomputer |
| Circulation mode | Natural convection |
| Drive mode | Single-axis balanced drive |
| Safety function | Emergency stop, hardware interlock, software interlock, overspeed and stall audible and visual alarms, short circuit, electric leakage, and overload protection devices. |
| Bearings | NSK original imported double row bearings |
| Power consumption | 290W |
| Power supply | 220V±10%, 50/60Hz |
| Tray size | 840×620mm |
| External dimension | 900×675×790mm |
| Net weight | 332 kg |
Features
Applications
Ask Expert
FAQ for Large Capacity Orbital Shaker NLOS-200
1: Is the Large Capacity Orbital Shaker NLOS-200 easy to operate and monitor?
The 7-inch color touchscreen display makes operation simple and convenient by showing multiple parameters at once. The interface allows easy programming, monitoring, and parameter recall for smooth workflows.
2: How does the Large Capacity Orbital Shaker NLOS-200 ensure durability and reliability?
Durability is ensured through the use of finely processed ductile iron and carefully selected high-quality core components. This construction provides excellent stability, reduced noise, and a long service lifespan even under continuous heavy-duty use.
3: Can experimental data be exported or saved?
The Large Capacity Orbital Shaker supports optional USB data export, enabling seamless record-keeping and compliance. It also supports 3Q verification, which is valuable for maintaining quality assurance in regulated environments.
4: How does the Large Capacity Orbital Shaker NLOS-200 maintain stable operating conditions?
Stable operation is achieved through natural convection circulation and a balanced drive system. These features ensure smooth orbital motion and consistent results during extended experiments.
5: How should the Large Capacity Orbital Shaker NLOS-200 be stored when not in use?
The Large Capacity Orbital Shaker should be stored in a clean, dry environment away from direct sunlight and corrosive chemicals. Ensuring stable room temperature and minimal vibration helps maintain mechanical stability and electronics reliability.
6: Is the Large Capacity Orbital Shaker safe to operate?
Our Large Capacity Orbital Shakers include secure tray clamps and safety features to prevent spillage or sample accidents. They can be operated confidently, even with large or heavy sample loads. This enhances both safety and reliability in busy lab settings.
7: How easy is the Large Capacity Orbital Shaker to clean and maintain?
The Large Capacity Orbital Shakers are designed with smooth surfaces and removable trays, making cleaning fast and straightforward. Hygiene standards can be maintained without complicated procedures. Regular maintenance is simple, ensuring long-term reliable operation.
8: How precise is the shaking motion?
The Large Capacity Orbital Shakers provide smooth and uniform orbital motion, ensuring thorough mixing without disturbing the samples. Results remain consistent and reliable. This precision is especially important for sensitive experiments.
9: Is the Large Capacity Orbital Shaker suitable for sensitive biological samples?
Our Large Capacity Orbital Shakers provide gentle, controlled shaking options suitable for delicate cell cultures and biological samples. Sensitive materials can be handled without risk of damage. This makes them ideal for both research and clinical labs.
Labnics Large Capacity Orbital Shakers support multiple flasks and bottles simultaneously, allowing efficient handling of large sample volumes. They provide adjustable speed for gentle to vigorous shaking. These units feature two or more trays to maximize workspace efficiency.
They are made of durable, corrosion-resistant materials for long-lasting performance.
Our shakers include digital controls for easy monitoring of speed and time.
