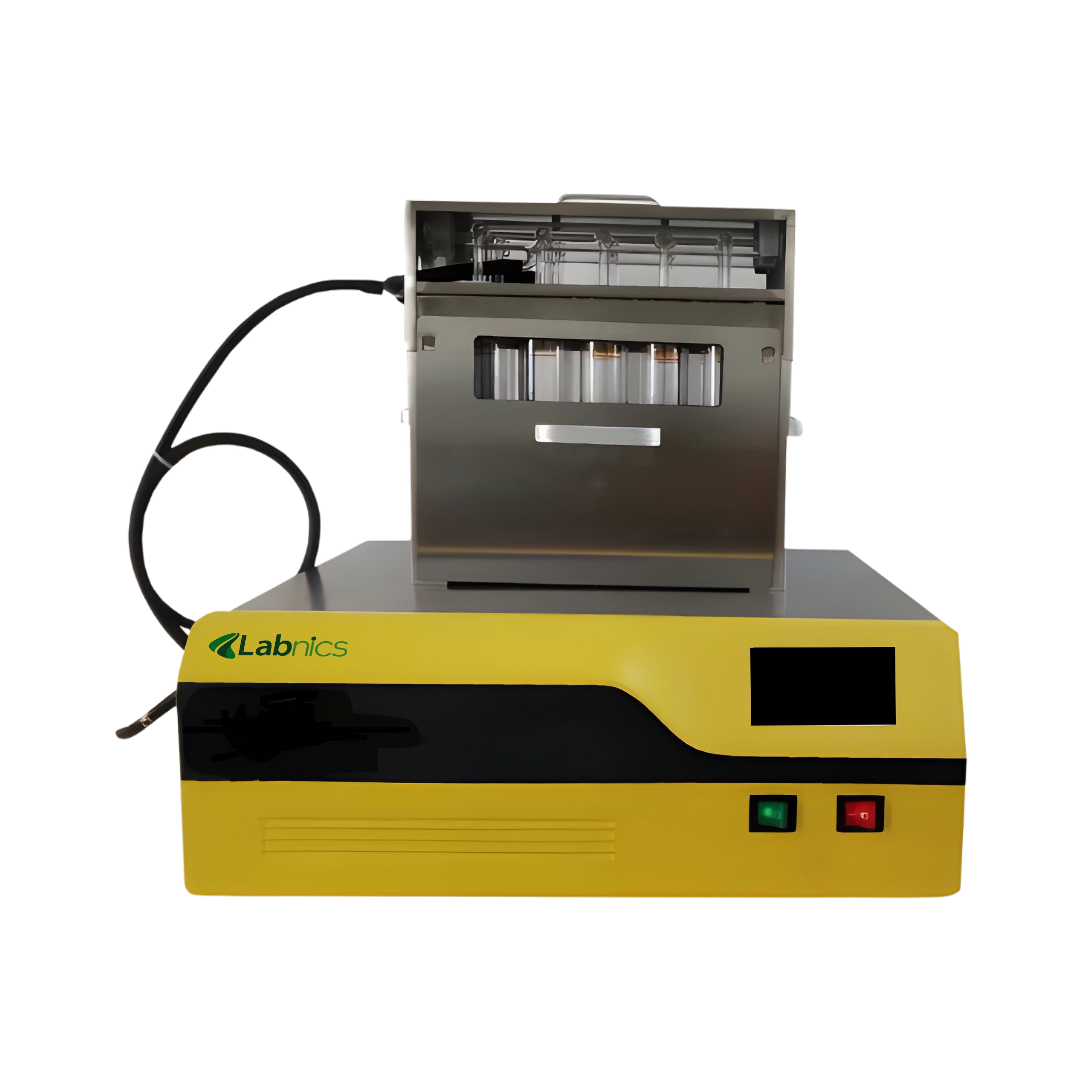

Infrared Digestion Furnace NIDF-102
Infrared Digestion Furnace NIDF-102 is a compact, double-shell aluminium digestion unit employed for Kjeldahl digestion of a wide variety of samples with nitrogen content in the micro and macro range. Adopting infrared technology, it results in rapid heating and cooling of sample which saves on digestion time and ensures high sample throughput. More than 90% of protein-containing samples and over 60% of all Nitrogen-containing samples can be processed using this digestion unit.
| Sample capacity | 20 |
| Heating module | Infrared |
| Control mode | Digital |
| Temperature range | Room temperature - 600 °C |
| Temperature accuracy | ± 1 °C |
| Digestion time | 60 min - 90 min per batch |
| Digestion tube volume | 300 ml |
| Power | 2.5 kW |
| Power supply | AC 110/220 V, 50/60 Hz |
Used for various pre-processing of analytical sample and digestion of the sample that is to be analysed in Kjeldahl analyser.
| Sample capacity | 20 |
| Digestion tube volume | 300ml |
| Digestion tube diameter | 42 mm |
| Heating module | PID temperature control |
| Sample capacity | 6 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample capacity | 12 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample capacity | 24 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample capacity | 36 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample capacity | 48 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample capacity | 60 |
| Digestion tube volume | 50 ml |
| Digestion tube diameter | 32 mm |
| Digestion tube height | 60 mm |
| Sample vessel | 12 / batch |
| Vessel volume | 100 mL |
| Microwave power | 0-3000W, adjustable |
| Microwave frequency | 2450MHz |
| Sample vessel | 18 / batch |
| Vessel volume | 100 mL |
| Microwave power | 0-3000W, adjustable |
| Microwave frequency | 2450MHz |
| Sample vessel | 40 / batch |
| Vessel volume | 40 mL |
| Microwave power | 0-3000W, adjustable |
| Microwave frequency | 2450MHz |
| Cavity | 48 L Resonant Cavity |
| Cavity coating | SS316 with 10-layer Teflon |
| Power output | 1600 W |
| Digestion method | Microwave heating |
