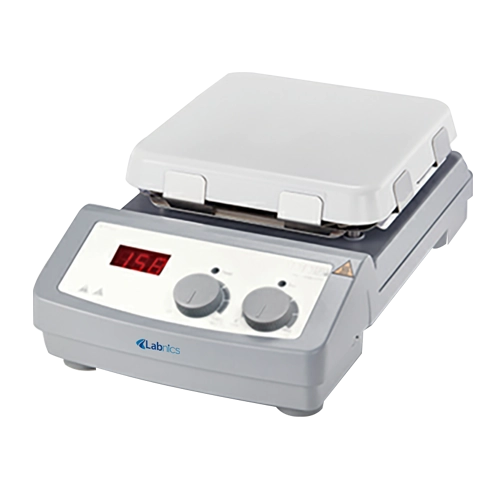

Hotplate Magnetic Stirrer NHMS-305 is a motor driven stirring pan with constant supply of adjustable temperature and speed. The stirrer enables in achieving smooth mixing, dilution, dissolving and emulsification procedures under specified conditions. It is equipped with Polytetrafluoroethylene (PTFE) stirring bar with non-wetting, high density and high temperature resistant properties. The magnetic stirrer is integrated with heating system to increase the solubility of a chemical compound.
Specifications
| Work plate material | Glass ceramic |
| Work plate size | 184 × 184 mm |
| Stirring Capacity | 1 L – 10 L |
| Heating output | 1000 W |
| Temperature range | 5 °C ~ 550 °C |
| Maximum temperature | 580 °C |
| Temperature Accuracy | ±1 ℃ |
| Speed range | 0 ~1500 rpm |
| Display | LED |
| Stirrer bar | 80 mm PTFE stirrer bar |
| Relative humidity | 0.8 |
| Power consumption | 1030 W |
| Power supply | AC 110/220V ± 10%, 50/60Hz |
| Dimension (W × D × H) | 215 × 360 × 112 mm |
| Package dimension (W × D × H) | 280 × 420 × 200 mm |
| Weight | 6.5 kg |
Features
Applications
Ask Expert
| Top plate dimension | 180×180mm |
| Stirring capacity | 50ml-5000ml |
| Maximum temperature for top plate | 325°C |
| Top plate dimension | 280×280mm |
| Stirring capacity | 50ml-15000ml |
| Maximum temperature for top plate | 325°C |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Work plate material | Stainless steel with ceramic coating |
| Work plate size | Φ 135 mm |
| Stirring capacity | 20 L |
| Work plate Dimension | φ135mm (5 inches) |
| Work plate material | Stainless steel with ceramic coat |
| Motor type | Brushless DC motor |
| Work plate Dimension | 184 ×184 mm |
| Work plate Material | Glass ceramic |
| Heating Position | 1 |
| Maximum temperature setting | 450℃ |
| Maximum temperature setting with E-sensor | 300℃ |
| Safety temperature | 50 to 500 ℃ |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 50ml-1000ml |
| No of Positions | 2 |
| Stirring Bar Speed Range | 100~1800rpm |
| Stirring Bar Capacity for each position | 500ml-5000ml |
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
| Stirring capacity | 40L |
| Motor input power | 120W |
| Motor output power | 100W |
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
