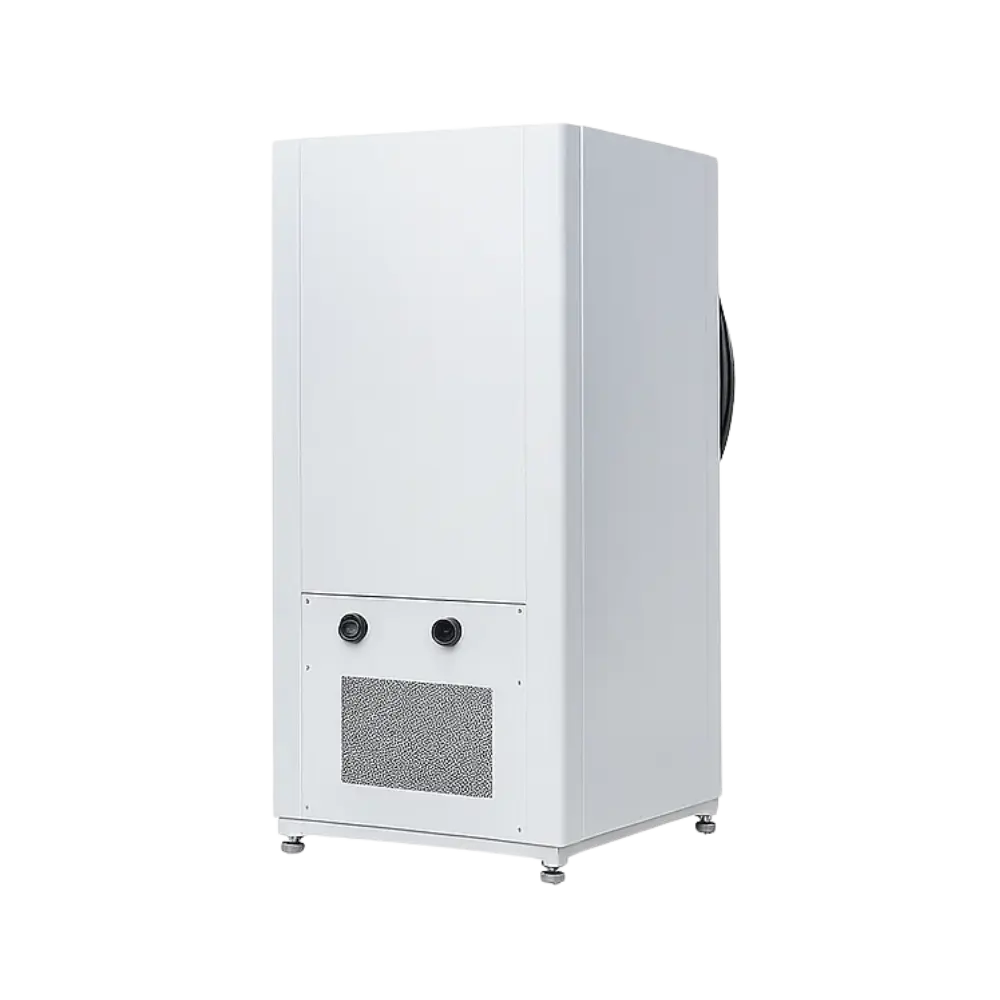

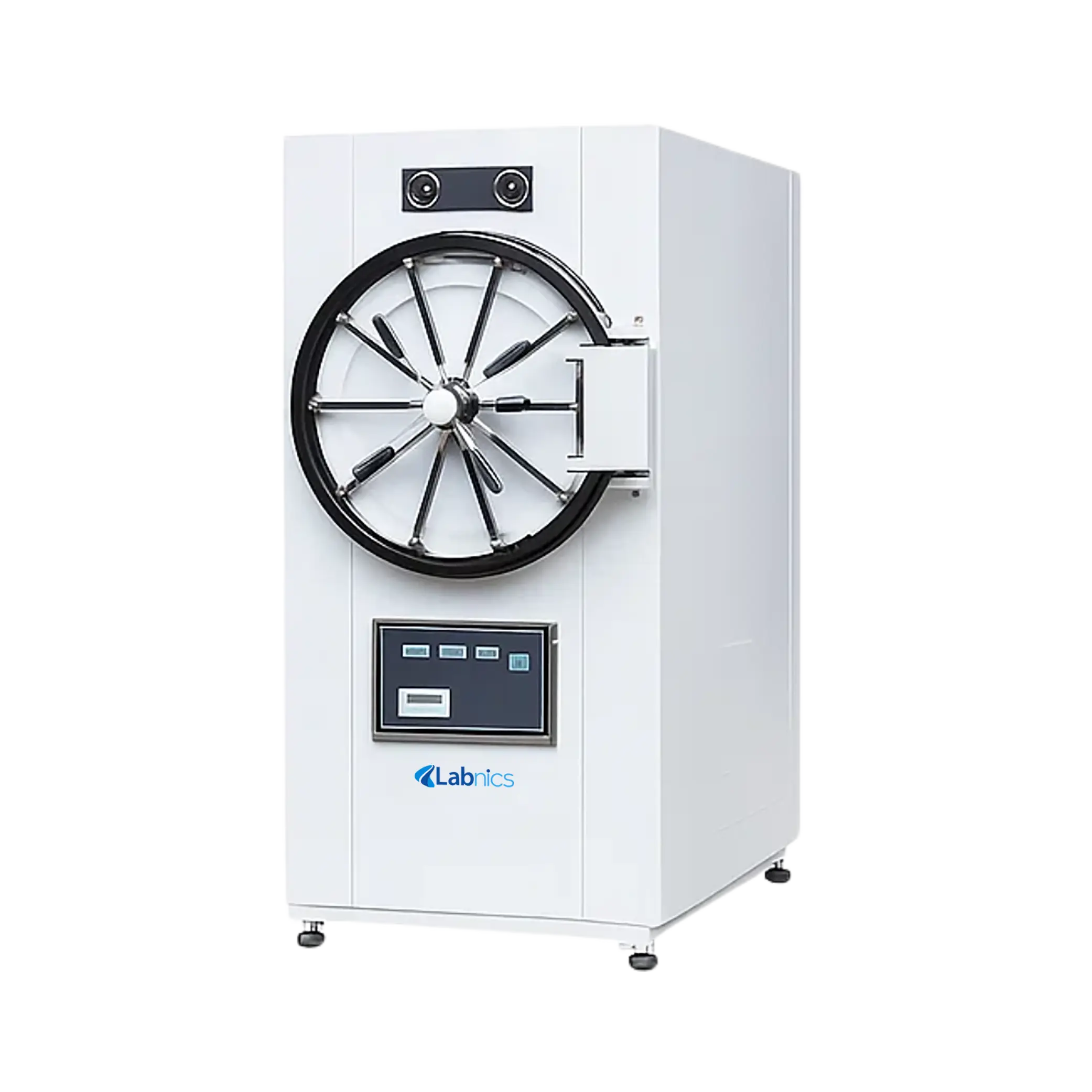

Horizontal Autoclave NHA-200 is designed with a 150-liter capacity to handle large volumes. It features an adjustable temperature range from 40°C to 134°C for efficient sterilization. The chamber is constructed from electro-polished stainless steel for durability and corrosion resistance. This microcomputer-controlled unit is equipped with heaters for reliable and consistent heating. Our autoclave includes a color touchscreen for intuitive control and easy monitoring.
Specifications
| Capacity | 150 L |
| Body | Stainless Steel |
| Type | Pressure Steam Sterilization |
| Chamber Volume | Φ 440 × 1000 mm |
| Working Pressure | 0.22 Mpa |
| Working Temperature | 134°C |
| Adjustable Temperature Range | 40°C to 134°C |
| Auto-Relief Valve Pressure | > 0.24 MPa |
| Door Opening Pressure Threshold | ≤ 0.027 MPa |
| Heat Average | ≤ ± 2°C |
| Time for Sterilization | 0 to 99 min |
| Time for Drying | 0 to 99 min |
| Power | 9KW/380V 50Hz |
| Dimension | 1400 × 650 × 1600 mm |
| Packing Dimension | 1560 × 820 × 1820 mm |
| Net Weight | 340 Kg |
| Gross Weight | 430 Kg |
Features
Applications
Ask Expert
FAQ for Horizontal Autoclave NHA-200
1: What temperature range does the Horizontal Autoclave NHA-200 offer?
The Horizontal Autoclave NHA-200 provides an adjustable temperature range from 40°C to 134°C, allowing for flexible sterilization of both heat-sensitive and heat-resistant materials.
2: What type of control system is used in the Horizontal Autoclave NHA-200?
Our Horizontal Autoclave NHA-200 features a microcomputer-based control system with a color touchscreen interface, enabling precise operation, easy monitoring, and user-friendly interaction during the sterilization process.
3: What safety mechanisms are included in the Horizontal Autoclave NHA-200?
The Horizontal Autoclave NHA-200 is equipped with over-temperature and over-pressure protection, an auto-relief valve, a door pressure interlock system, and a safety valve test function to ensure maximum operational safety.
4: Does the Horizontal Autoclave NHA-200 support data management?
Yes, the Horizontal Autoclave NHA-200 includes a built-in printer and an integrated USB data port, allowing users to export and print sterilization records for documentation and compliance purposes.
5: What material is used to construct the chamber of the Horizontal Autoclave NHA-200?
The chamber of the Horizontal Autoclave NHA-200 is made of electro-polished stainless steel, offering excellent corrosion resistance, high durability, and easy maintenance.
Labnics Horizontal Autoclave includes safety features such as over-temperature and pressure protection. They offer automatic-controlled functions for smooth and efficient sterilization operations. These autoclaves have a drying option for the complete drying of items after the process. They include an automatic shutdown control after sterilization for safety. Our units are equipped with LED displays for clear and easy monitoring.
