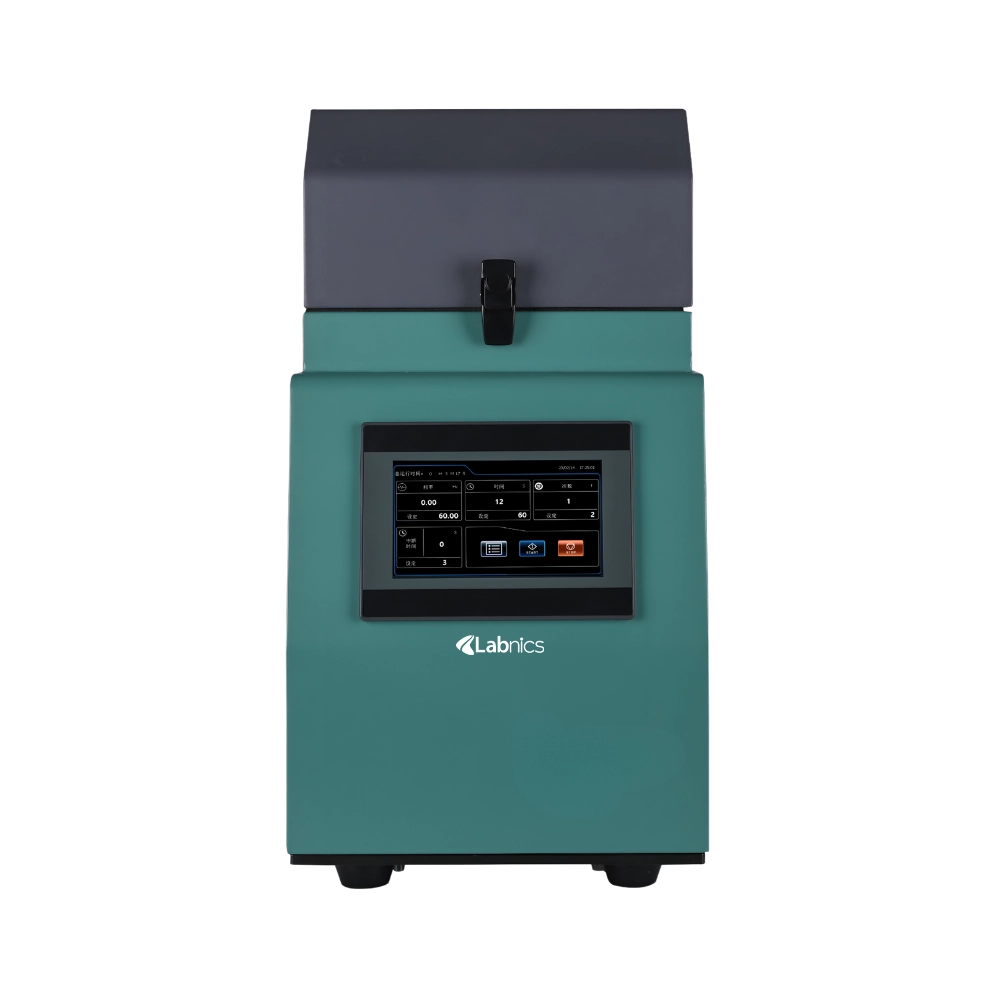

High Throughput Tissue Grinder NHTG-101

---

$3,900.00

Buy Now Data Sheet

Specifications

Sample handling capacity	96×0.2 to 0.5ml 48×2ml 24×5 to 10ml 12×15ml 4×25ml 2×50ml Choose two of them
Vibration frequency range	0 to 70HZ, 0 to 2100rpm
Typical crushing time	155 to 2min
Liquid-crystal display	7-inch touch screen, display working status, convenient and Intuitive operation
Number of grinding platforms	More than 2 grinding tanks can be used
Feed and discharge size	Maximum feed size: no requirement Final discharge particle size: ≤3µm.
Grinding bead material	Hard steel, stainless steel, tungsten carbide, agate, zirconia, ceramic, chrome steel, quartz sand
Grinding bead size	0.1 to 30mm
Liquid nitrogen pre-cooling function	Yes
Stroke of fixture	40mm(vertical)
Grinding time range	OS 99995
Grinding tank material	Hard steel, stainless steel, tungsten carbide, agate, zirconia, TEfion aluminum alloy
Speed up/speed cut	Maximum speed was reached within 2 seconds. Minimum speed was reached within 2 seconds
Noise level	<50dB
Type of protection	IP 30
Power	350W
Dimensions (L×W×H)	380×340×350mm

Features

Multiple grinding tanks

7-inch touch screen display

Rapid speed change

Compact design

Protection against objects

Applications

High Throughput Tissue Grinder NHTG-101 ensures efficient grinding of biological samples and food. It is used in pharmaceutics, research labs, and mining industries.
