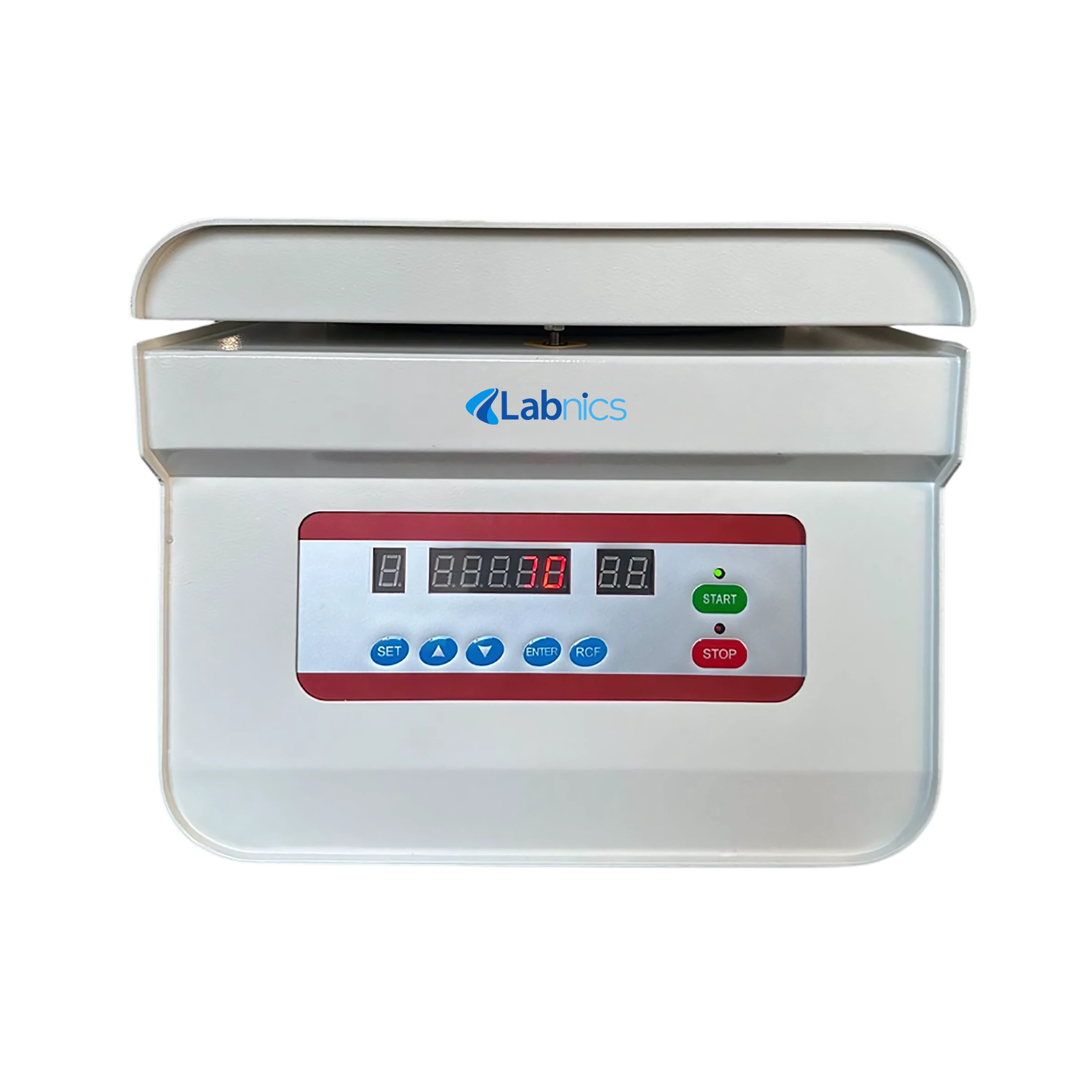

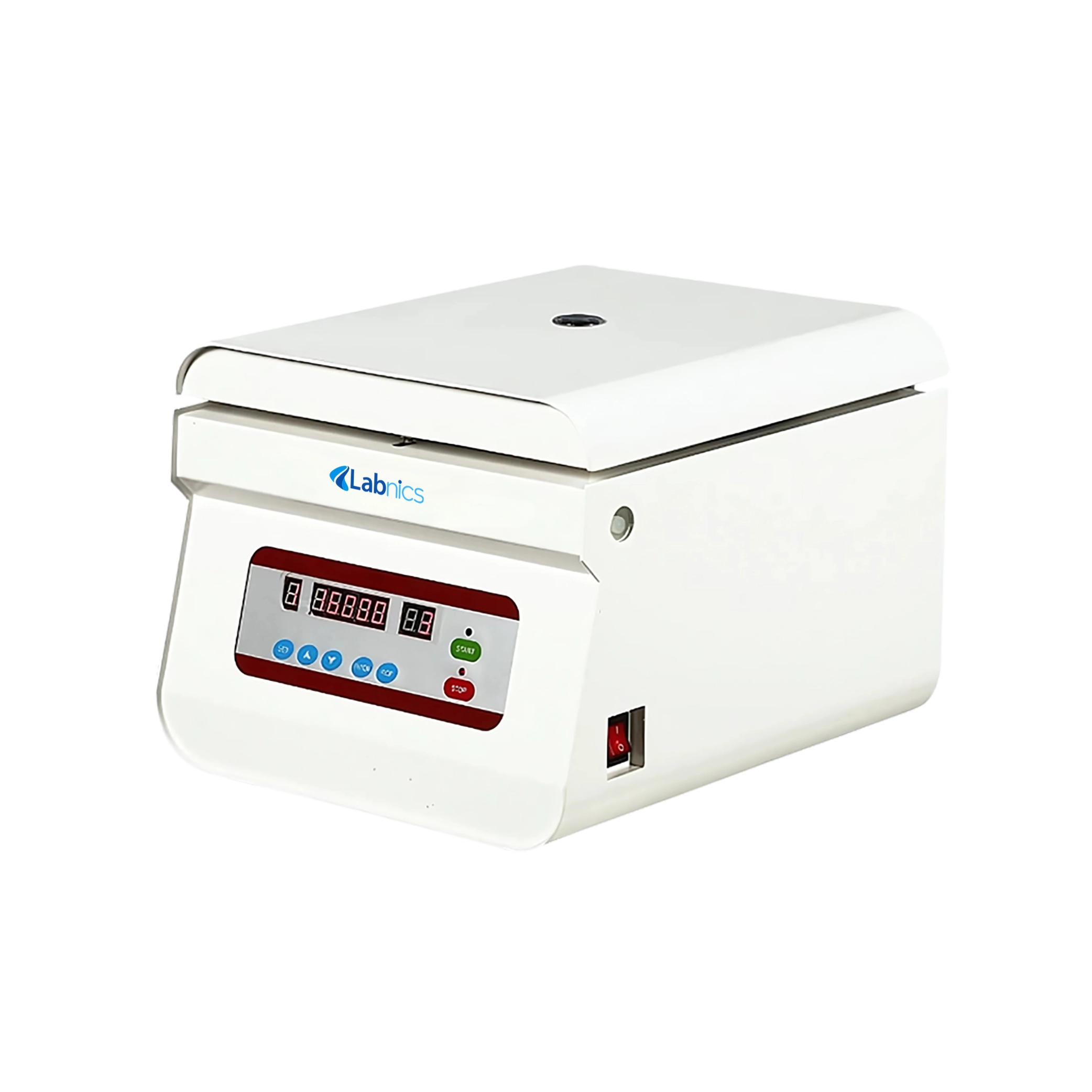

Benchtop High Speed Centrifuge NHSC-102

Benchtop High Speed Centrifuge NHSC-102 offers rapid acceleration up to 16500 rpm and accommodates a maximum of 6 × 100 ml for efficient sample processing. With a brushless motor and frequency drive, it ensures gentle start-up, minimizing sample disturbance. It is crafted with a stainless-steel chamber and solid metal body for durability. Equipped with large LCD screen for clear display and easy adjustment of parameters without stopping the operation.

---

$2,400.00

Buy Now Catalog

Specifications

Maximum RPM	16500 r/min
Maximum RCF	21800 × g
Maximum Capacity	6 × 100 ml
Speed Accuracy	±50 r/min
Timer Range	0 to 99 min
Noise	≤60 dB(A)
Motor	Brushless Converter Motor
Display	LCD /Digital display
Power Supply	AC220 V &110 V 50Hz 5A
Dimension (L × W × H)	410 × 352 × 310 mm
Net Weight	30 kg

Features

• Electric door lid protection for safe operation
• Reliable drive system for consistent performance
• Includes over-speed and imbalance protection
• Low noise operation
• Easy loading and unloading of samples
• Manual emergency lid release for power interruptions

Applications

• Benchtop High Speed Centrifuge is used for rapid separation of particles based on density using centrifugal force. It is widely used in various areas like biotechnology, molecular biology, clinical laboratories, medical, hospital and research institutes and organizations.

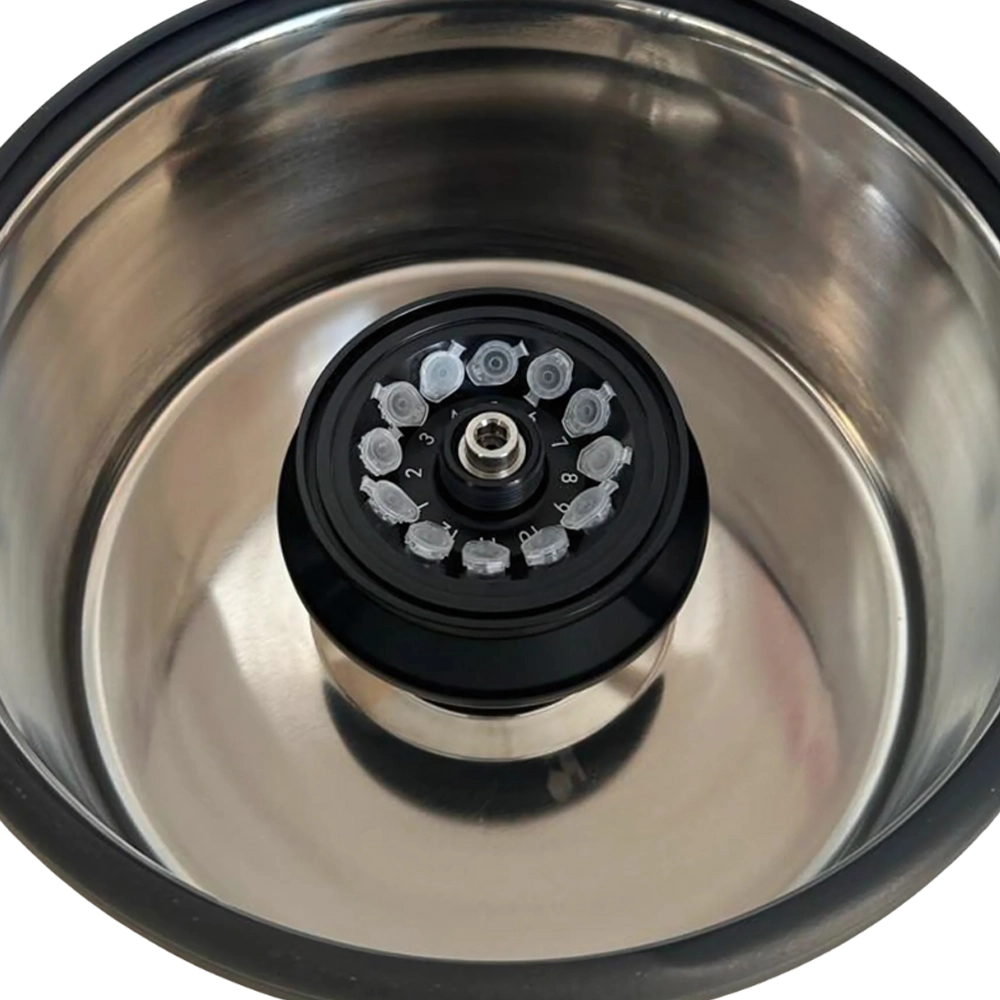

Rotors Selection

Rotor No.	Maximum Capacity (mL)	Maximum Speed (rpm)	Maximum RCF (×g)
Angle Rotor 01	12×1.5/2.2ml	16500	19500
Angle Rotor 02	8/10/12×5ml	13000	11400
Angle Rotor 03	24×1.5/2.2ml	15000	21800
Angle Rotor 04	48×0.5/1.5ml	13500	14800
Angle Rotor 05	36×1.5/2.2ml	13500	17600
Angle Rotor 06	6×50ml	12000	15140
Angle Rotor 07	4×100ml	10000	10460
Angle Rotor 08	8×50ml	8000	7670
Angle Rotor 09	12×15ml	9000	9850
Angle Rotor 10	12×1.5/2ml	16500	19500
Angle Rotor 11	12×0.5/0.2ml	16500	19500
Angle Rotor 12	8×5ml	13000	11400
Angle Rotor 13	12×10ml	12000	14800
Angle Rotor 14	24×1.5/2ml	15000	19800
Angle Rotor 15	48×0.5/0.2ml	13500	14800
Angle Rotor 16	36×1.5/2ml	13500	17600
Angle Rotor 17	6×30ml	12000	15140
Angle Rotor 18	6×70ml	10000	9200
Angle Rotor 19	6×100ml	8000	7670
Angle Rotor 20	6×120ml	8000	7590
Angle Rotor 21	12×10ml	12000	13200
Angle Rotor 22	6×12/15ml	9500	8950
