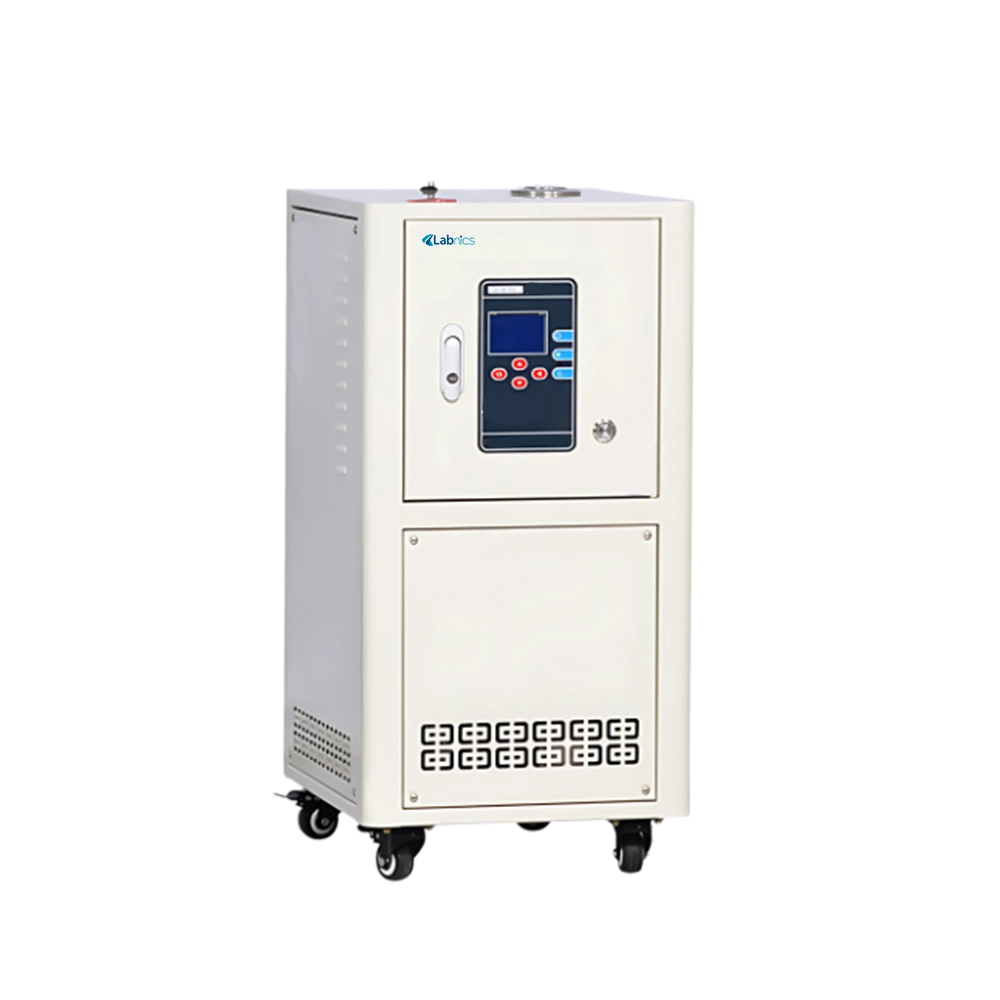

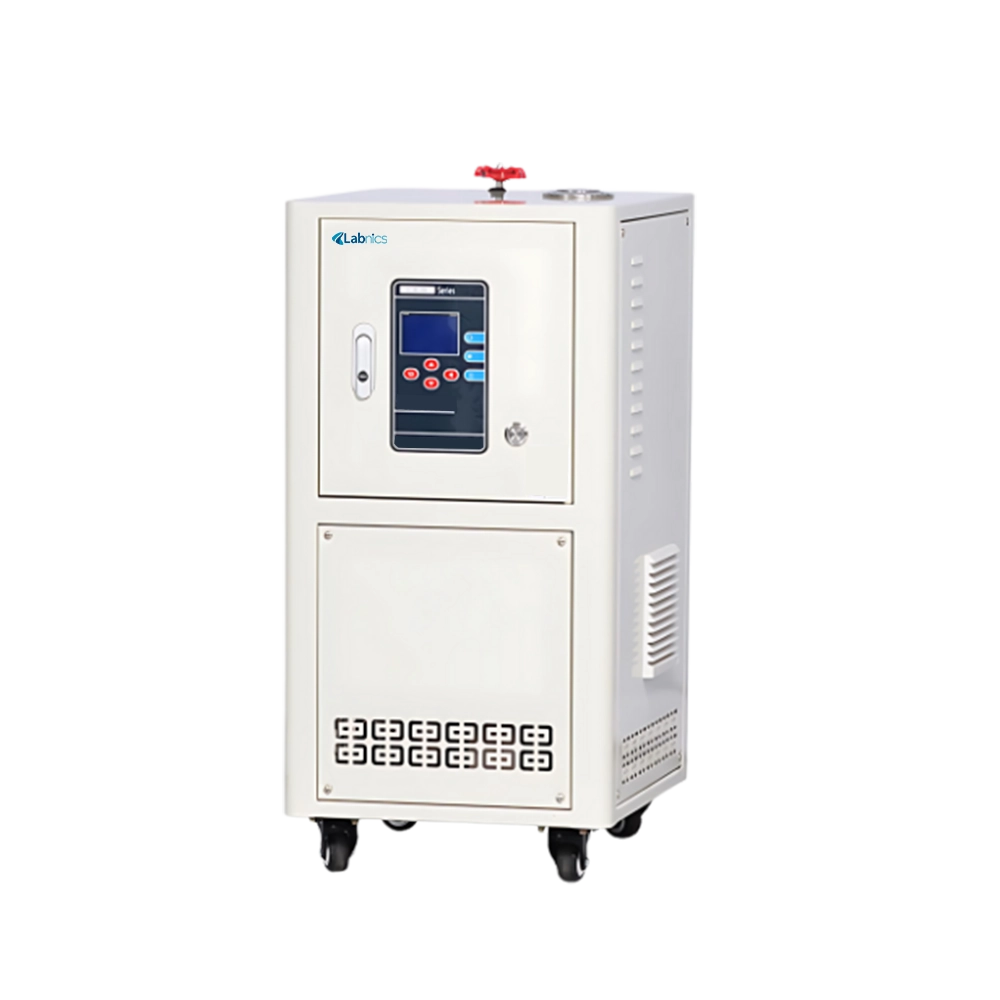

Heating Circulator NHTC-107

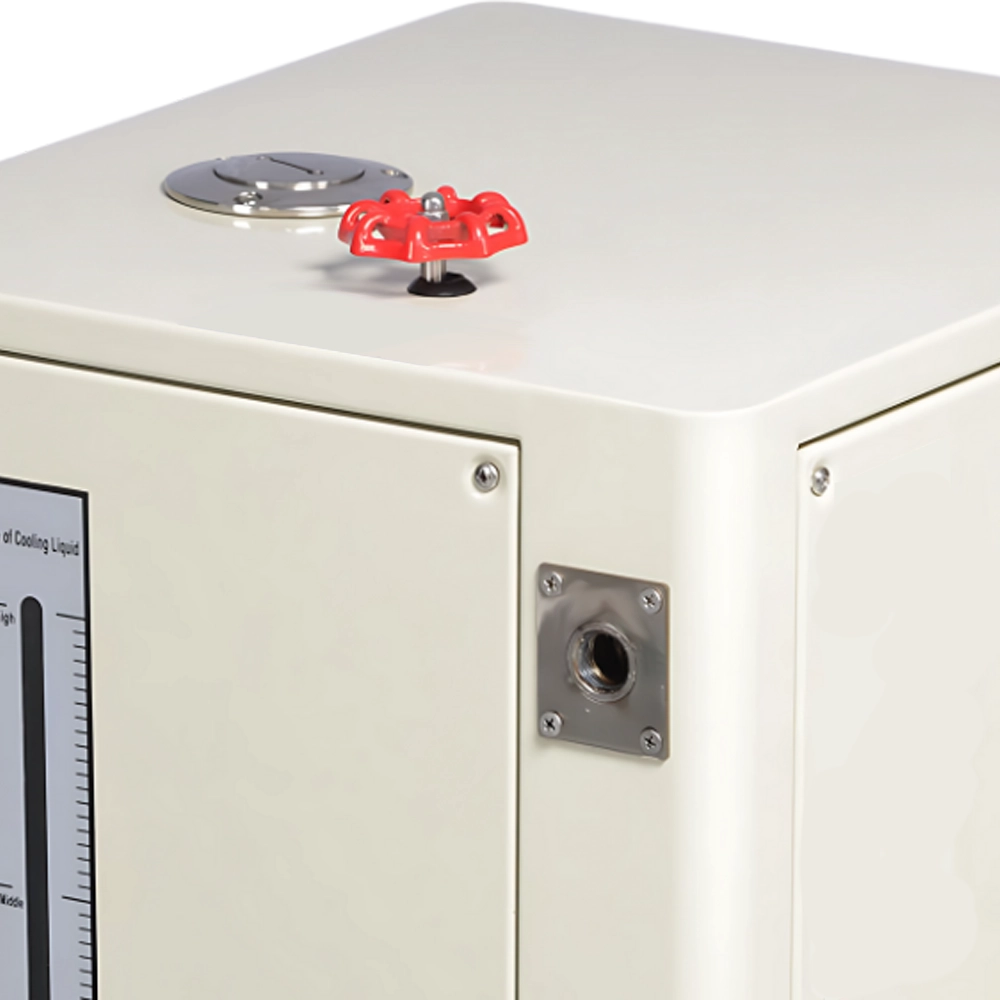

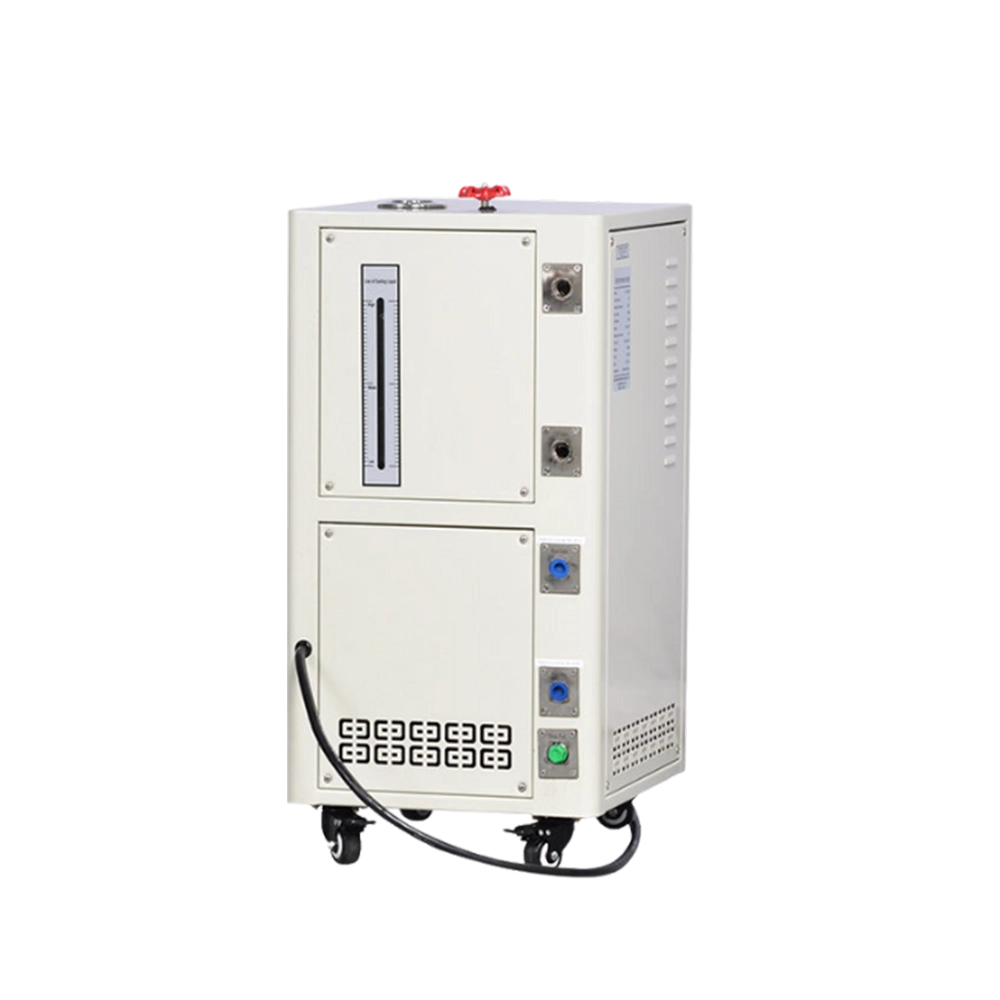

Heating Circulator NHTC-107 is designed with a 3.8L capacity, providing ample space for efficient fluid circulation and stable temperature control. It integrates a plate heat exchanger for effective cooling of the heat transfer fluid. Our circulator features a unique oil mist cooling function, prolonging the oil's life and improving system efficiency. It includes an exhaust valve to safely release gas buildup during heating. This unit comes with a drain port for easy discharge of waste liquid.
Capacity | 3.8L |
Temperature range | RT to 200°C |
Temperature accuracy | ±0.5°C |
Ambient temperature | 5 to 30°C |
Ambient humidity | 45 to 80%RH |
Circulating pump type | Vortex pump |
Circulating pump pressure | 2bar |
Cycle interface | DN15 |
Cooling water interface | DN15 |
Rated flow | 35L/min |
Heating method | Electric heating |
Cooling method | Water cooling |
Temperature sensor | PT100 |
Water cooler | Plate heat exchanger |
PLC control system | Siemens S7-200smart |
PLC protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) |
PLC operation panel | 7-inch Siemens color touch screen (optional 10-inch) |
PLC programming | 5 programs can be edited, each with up to 40 steps |
PLC control mode | Material temperature and equipment outlet temperature can be switched automatically |
PLC data output | Support U disk data output, can be outputted temperature data in TXT format |
Display | LCD |
Safety protection |
Self-diagnosis High-pressure switch Overload relay Over-temperature alarm |
Heating power | 5kW |
Cooling capacity (200°C) | 5.5kW |
Cooling capacity (100°C) | 4kW |
Cooling capacity (65°C) | 1.8kW |
Power consumption | 5.9kW |
Power supply |
220V,1P/3P 380V, 3P 50/60Hz |
Weight | 78kg |
Heating Circulator NHTC-107 is used to provide precise temperature control by circulating heated fluid. It is widely utilized across industries such as pharmaceuticals, chemicals, automotive, food and beverage, plastics, and biotechnology.
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc
