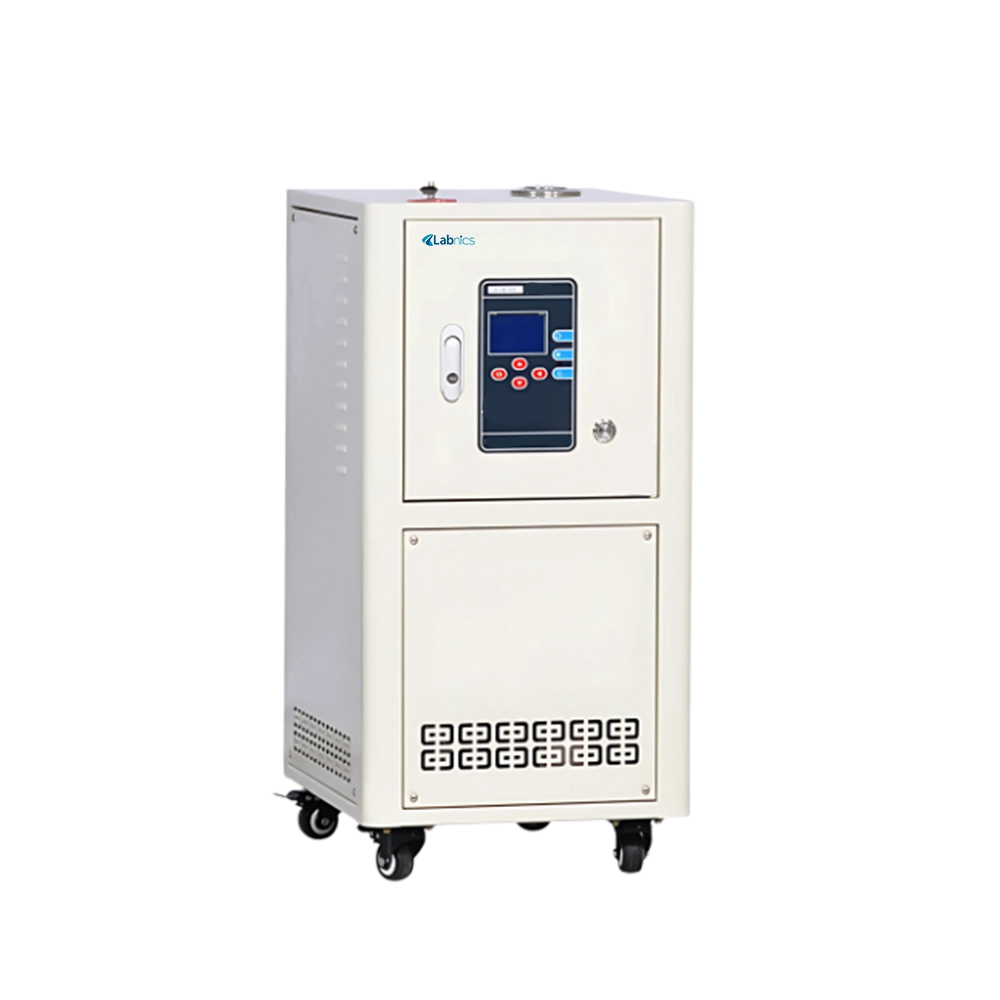

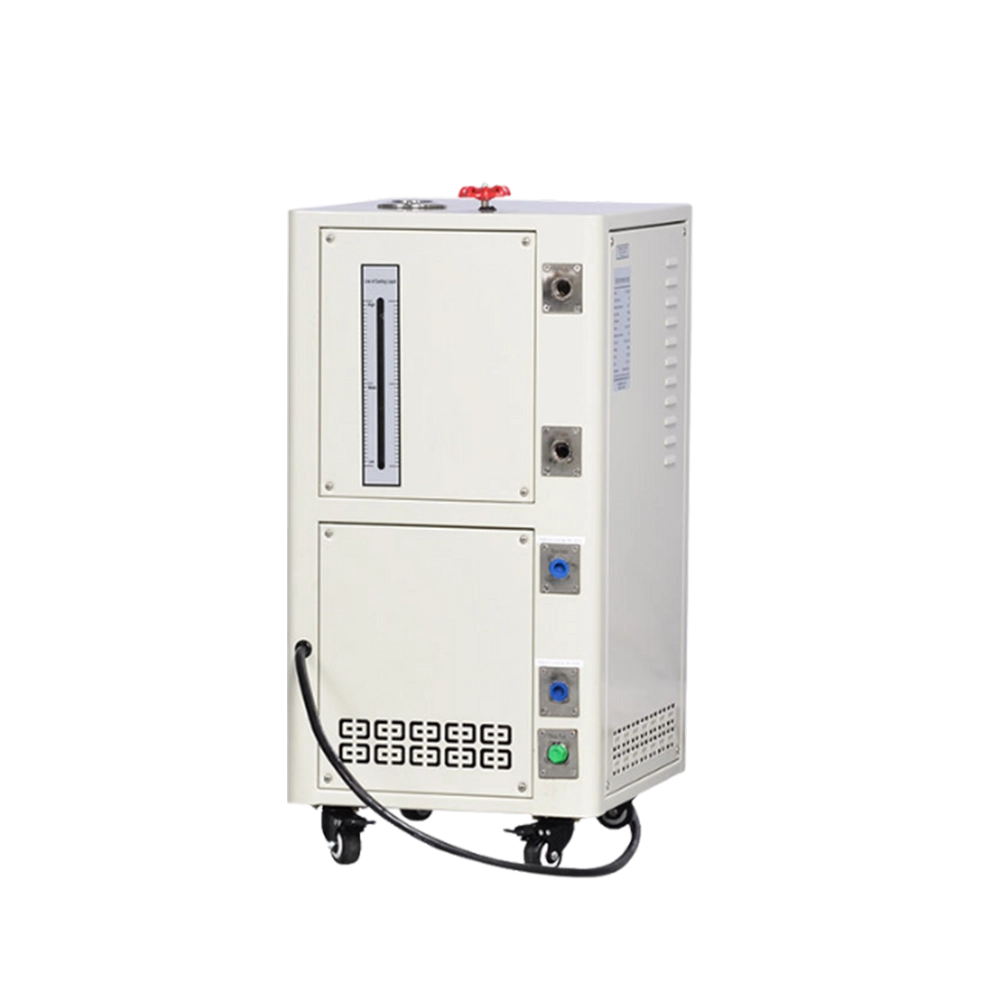

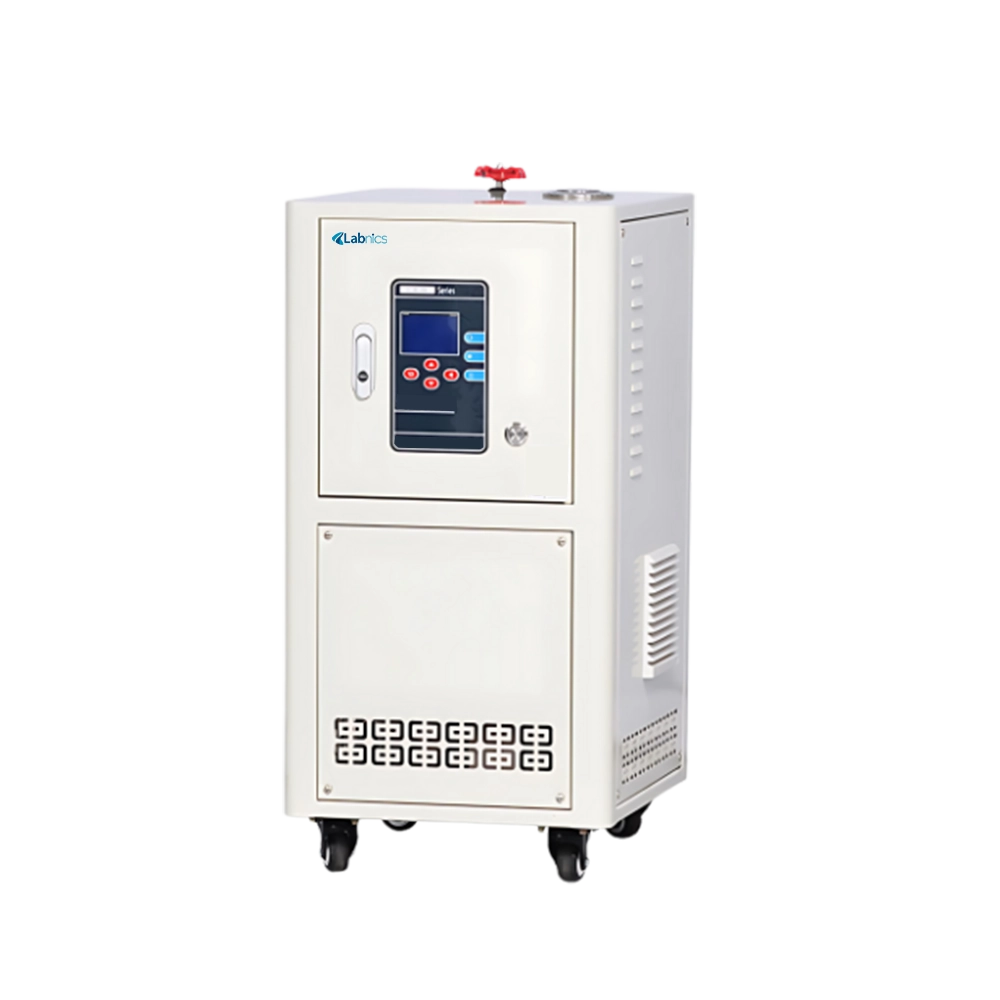

Heating Circulator NHTC-102

Name: Heating Circulator NHTC-102
Brand: Labnics
SKU: NHTC-102
Rating: 4.9 (675 reviews)

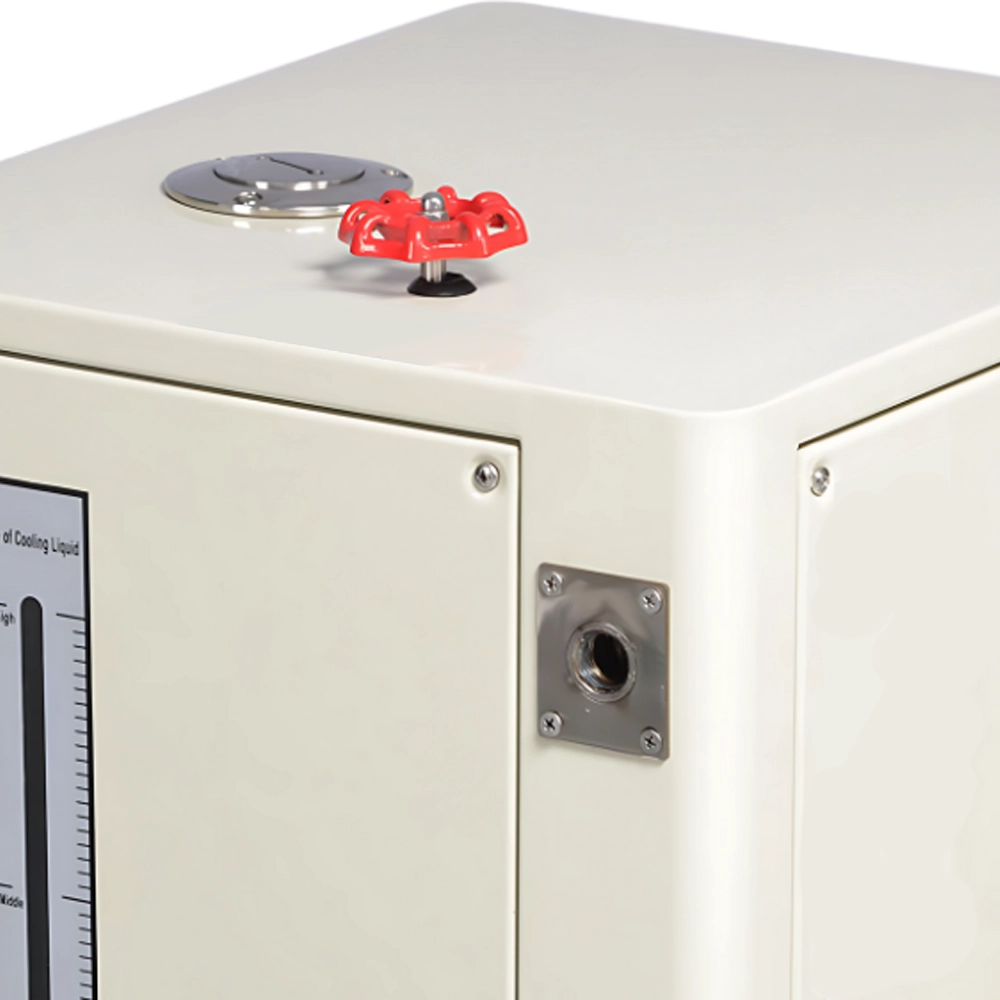

Heating Circulator NHTC-102 offers a 35L capacity, providing ample space for a variety of applications. It utilizes PID temperature control for accurate and stable regulation. Our unit is crafted with high-quality stainless steel, ensuring durability and resistance to corrosion. It includes multiple safety features such as over-temperature, overload, and over-current protection. This circulator is equipped with an exhaust valve to facilitate gas removal, enhancing both safety and reliability.

$6,625.00

Data Sheet

Specifications

Capacity	35L
Temperature range	RT to 200°C
Temperature accuracy	±0.5°C
Ambient temperature	5 to 30°C
Ambient humidity	45 to 80%RH
Circulating pump type	Vortex pump
Circulating pump pressure	2.5bar
Cycle interface	DN25
Cooling water interface	DN20
Rated flow	50L/min
Heating method	Electric heating
Cooling method	Water cooling
Temperature sensor	PT100
Water cooler	Plate heat exchanger
PLC control system	Siemens S7-200smart
PLC protocol	Modbus RTU protocol RS485 interface (optional RS232 Ethernet)
PLC operation panel	7-inch Siemens color touch screen (optional 10-inch)
PLC programming	5 programs can be edited, each with up to 40 steps
PLC control mode	Material temperature and equipment outlet temperature can be switched automatically
PLC data output	Support U disk data output, can be outputted temperature data in TXT format
Display	LCD
Safety protection	Self-diagnosis High-pressure switch Overload relay Over-temperature alarm
Heating power	15kW
Cooling capacity (200°C)	15kW
Cooling capacity (100°C)	12kW
Cooling capacity (65°C)	5kW
Power consumption	16.5kW
Power supply	220V/380V/480V, 50/60Hz
Net Dimensions	830 x 690 x 1230mm
Weight	100kg

Features

Oil mist cooling function
Casters for easy mobility
Large LCD for easy monitoring
Side inlet and exhaust design
Cooling water injection option
Drain port for waste liquids
Support U disk data output

Applications

Heating Circulator NHTC-102 is used to ensure consistent and precise temperature control by circulating heated fluid. It is utilized in laboratory experiments, industrial applications, medical sterilization, food processing, and environmental testing to maintain optimal conditions.

Standard Accessories

Stainless steel hose with thermal insulation (3.6 meters/piece),1pc Main engine, 1 set Matching valves, 2 sets Raw tape, 1 roll Operation manual, 1pc

Ask Expert

FAQ for Heating Circulator NHTC-102

1: Is there any specific training required to operate a Heating Circulator NHTC-102?

Not necessarily. Heating Circulator NHTC-102 are user-friendly with intuitive controls, but basic training or reviewing the user manual is recommended for safe and optimal use.

2: What is the difference between a heating circulator and a water bath?

While both heat fluids, a heating circulator provides active circulation for uniform temperature distribution and can connect to external equipment, unlike a standard water bath.

3: Can Heating Circulator NHTC-102 be used for high-viscosity fluids?

Heating Circulator NHTC-102 is designed with stronger pumps capable of handling viscous fluids; always check the pump specifications before use.

4: Is the Heating Circulator NHTC-102 suitable for continuous operation?

Yes. Heating Circulator NHTC-102 is designed for continuous 24/7 operation with efficient thermal control and system protection.

5: What type of bath liquids can be used in Heating Circulator NHTC-102?

Depending on the temperature range, water, silicone oils, and glycol-based fluids are commonly used.
