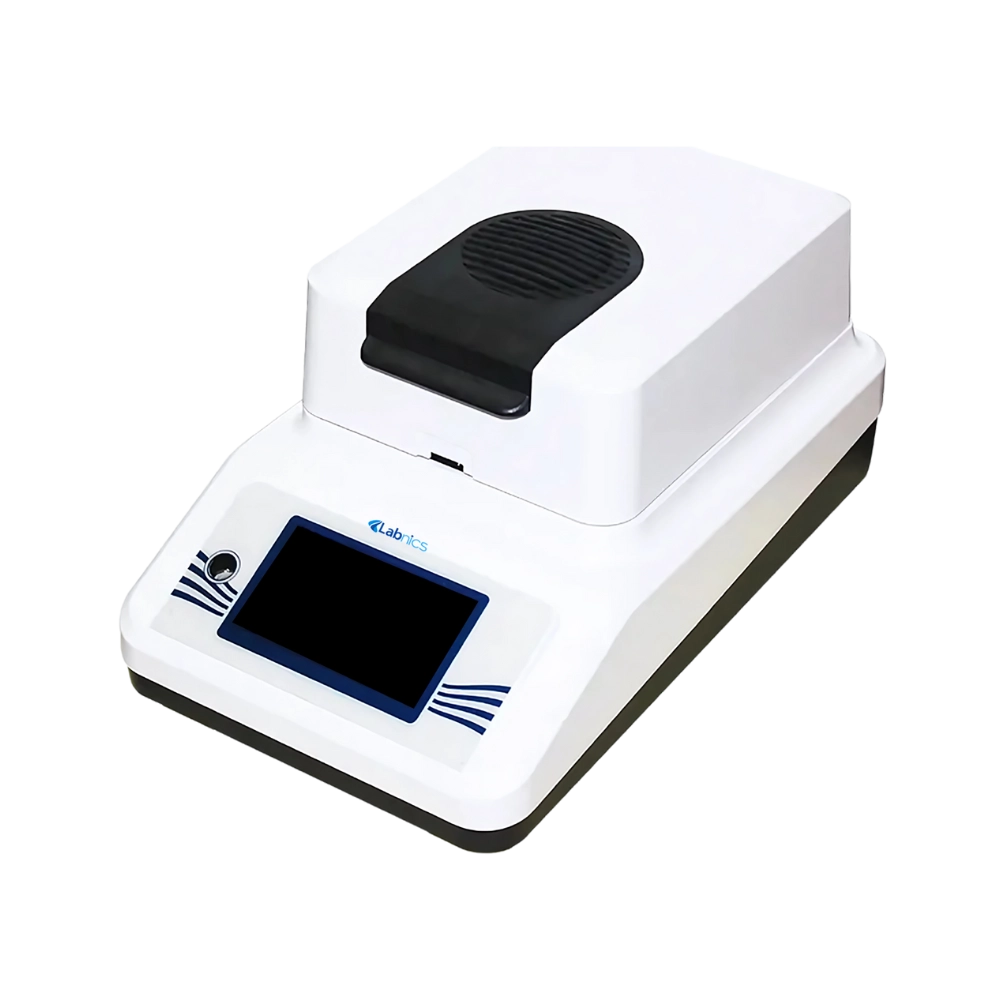

Halogen Moisture Analyzer NHMA-200 is designed with a 10 g capacity and 10 mg readability. It is equipped with a 4.3-inch colour touch screen for easy operation. This unit displays real-time curves for precise monitoring. It supports PC connectivity to ensure smooth data transfer and evaluation. Our analyzer offers automatic and timed test modes for different moisture analysis requirements.
Specifications
| Capacity | 10 g |
| Readability | 10 mg |
| Repeatability | 0.005 |
| Heat Up Time | 1 to 99 minutes |
| Calibration mode | External calibration |
| Pan Size | 90 mm |
| Heating Temperature | 50°C to 160°C |
| Ambient Temperature | 10°C to 30°C |
| Ambient Humidity | Up to 75% |
| Heating Source | Halogen Lamp |
| Heating Time | 30 minutes |
| Internal Dimension | 210 × 340 × 180 mm |
| External Dimension | 380 × 530 × 340 mm |
| Net weight | 3 Kg |
| Gross weight | 5 Kg |
Features
Applications
Ask Expert
| Capacity | 110 g / 10 mg |
| Readability | 0.01 g / 10 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 110 g / 5 mg |
| Readability | 0.005 g / 5 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 110 g / 2 mg |
| Readability | 0.002 g / 2 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 110 g / 1 mg |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 110 g / 1 mg |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 200 g / 1 mg |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 199°C |
| Capacity | 110 g |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 230°C |
| Capacity | 110 g |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 230°C |
| Capacity | 210 g |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 230°C |
| Capacity | 210 g |
| Readability | 0.001 g / 1 mg |
| Temperature range | 40°C - 230°C |
| Maximum capacity | 100g |
| Accuracy | 1mg |
| Calibration method | External calibration |
| Capacity | 110 g/10 mg |
| Readability | 10 mg |
| Moisture Range | 0.0%-100% |
.png "Halogen Moisture Analyzer NHMA-201")
| Capacity | 50 g |
| Readability | 1mg |
| Repeatability | 0.002 |
.png "Halogen Moisture Analyzer NHMA-202")
| Capacity | 50 g |
| Readability | 5 mg |
| Repeatability | 0.003 |
.png "Halogen Moisture Analyzer NHMA-203")
| Capacity | 100 g |
| Readability | 1 mg |
| Repeatability | 0.003 |
