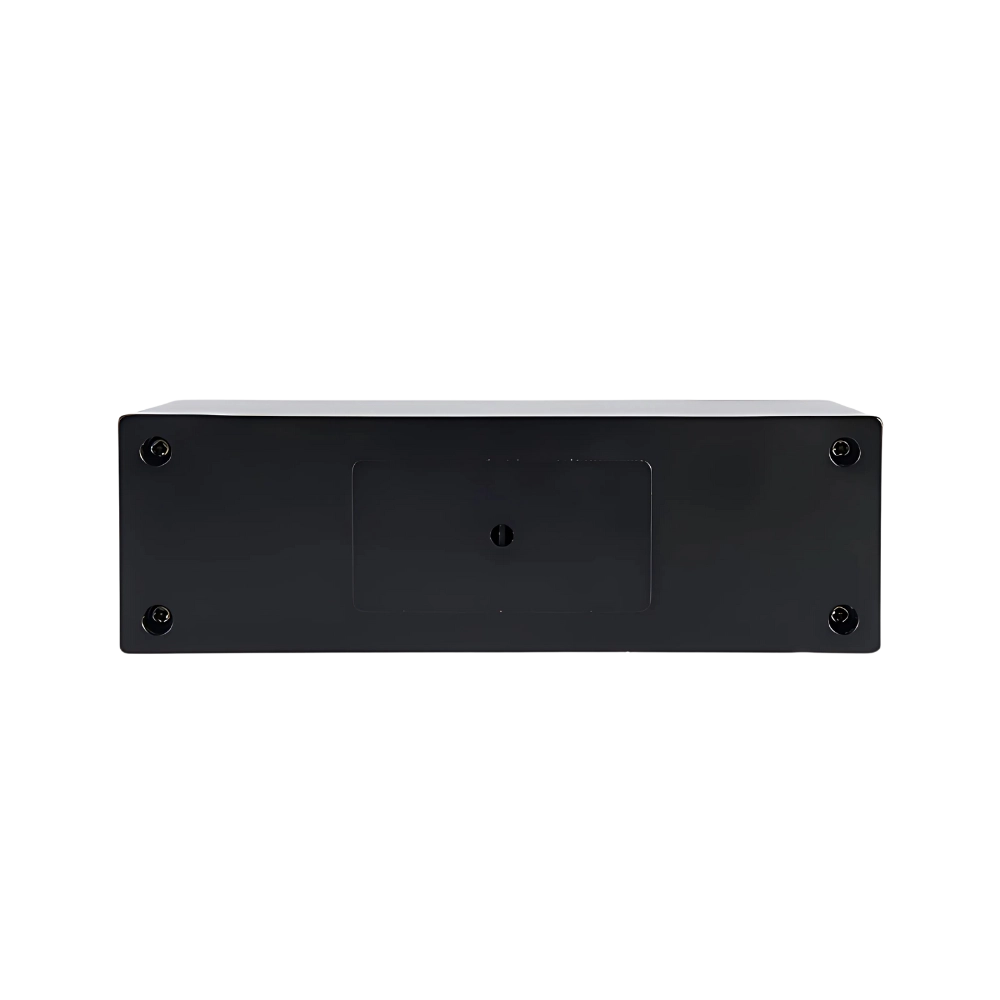

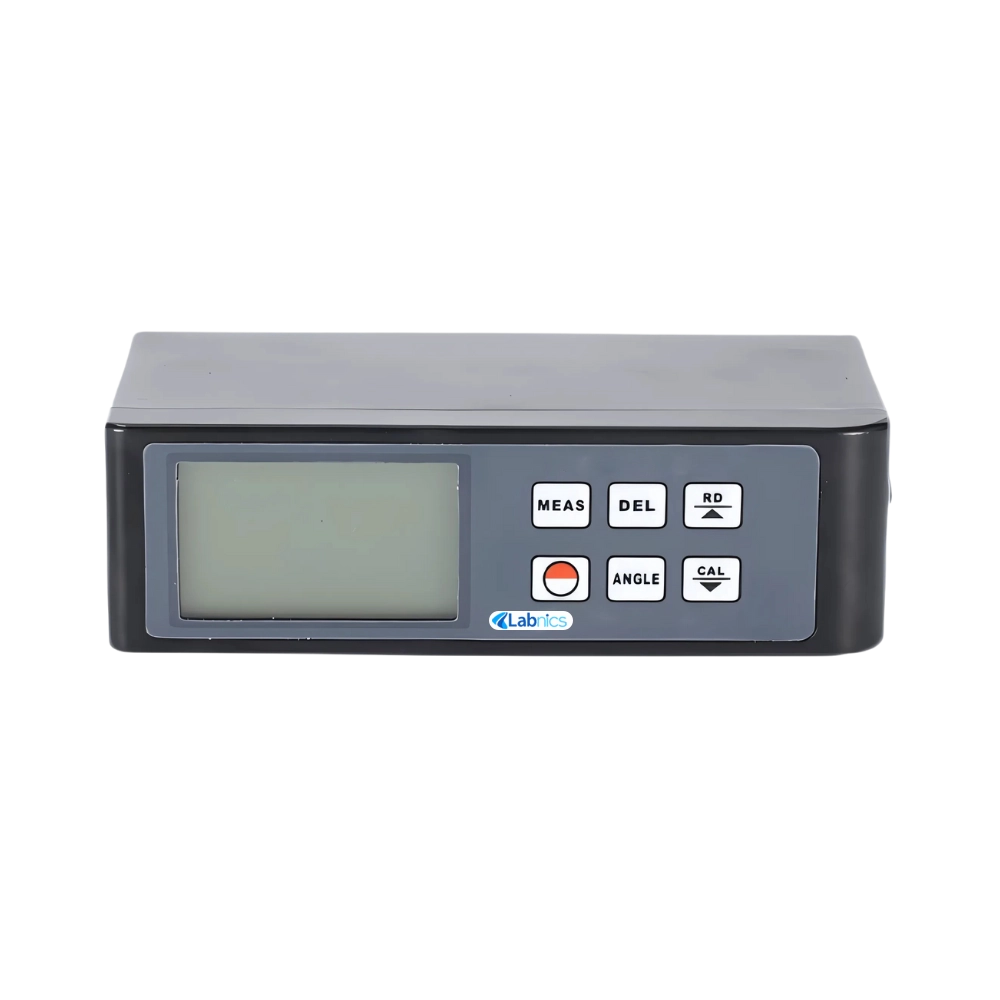

Gloss Meter NGSM-202
Gloss Meter NGSM-202 is designed with three angles of 20°, 60°, and 85° to measure gloss on different surfaces. It offers a measurement range from 0.1 to 200 GU for versatile use. This meter is powered by a long-lasting built-in lithium-ion rechargeable battery. It features a 4-digit backlit LCD for clear and easy reading. Our unit complies with international standards for reliable and accurate performance.
| Display | 4 Digits backlit LCD |
| Measuring angle | 20°/60°/85° |
| Range | 0.1 to 200 Gloss Units |
| Accuracy | ±1.5GU |
| Resolution | 0.1 |
| Repeatability | ±0.5GU |
| Measuring area | 7×14mm (Ellipse) |
| Data memorized | 254 groups |
| Temperature | 0 to 40°C |
| Humidity | <85% RH |
| Power supply | 3.7V lithium-ion rechargeable battery |
| Dimension | 140×45×75mm |
| Weight | 305g (including battery) |
Gloss Meter NGSM-202 is used to measure surface gloss and ensure uniform quality and finish in different materials. It is widely applied in industries such as automotive, paint and coatings, plastics, packaging, printing, electronics, textiles, metal manufacturing, furniture, ceramics, and glass production.
Holder with calibration standard
RS-232C data cable with software
Labnics Gloss Meters feature specific measuring angles to accommodate various surface types and gloss levels. They are designed for high accuracy and can be calibrated to ensure precise readings. These units can measure a broad range of gloss levels, from low-gloss matte finishes to high-gloss, mirror-like surfaces. They come equipped with a clear and easy-to-read LCD for convenient viewing of measurements. Our gloss meters include internal memory for storing data and facilitating easy access to past measurements.
