Flame Photometer NFP-100

Flame Photometer NFP-100

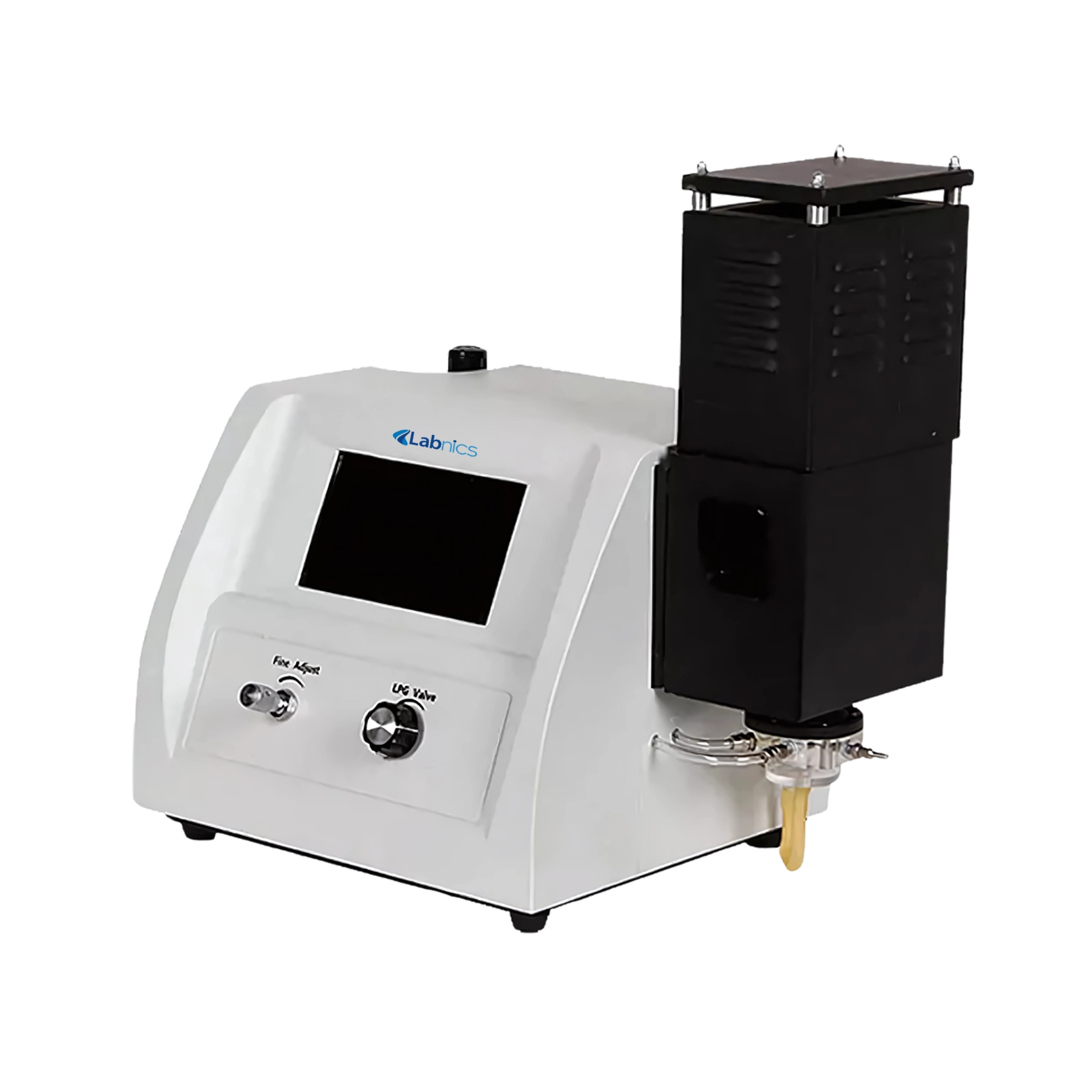

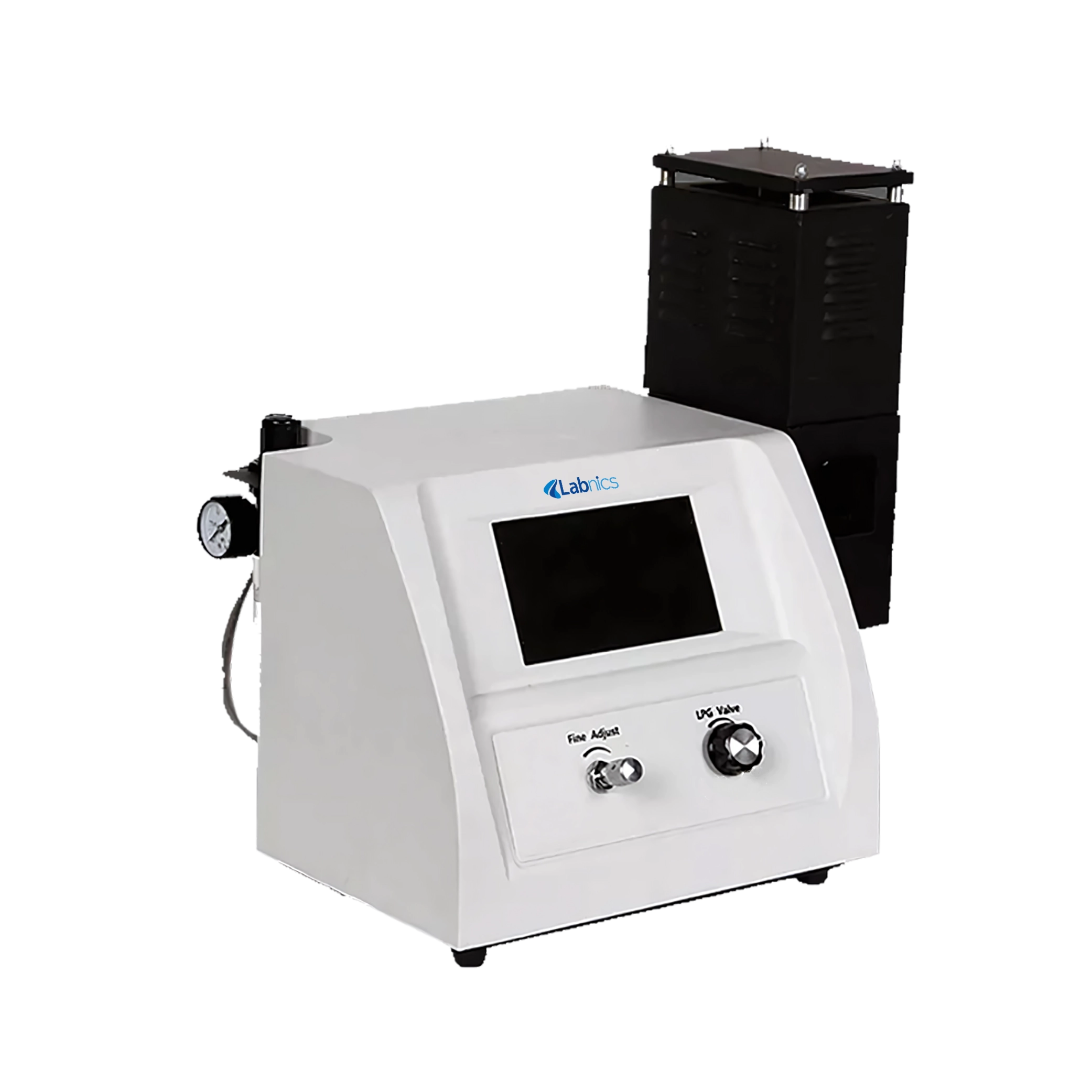

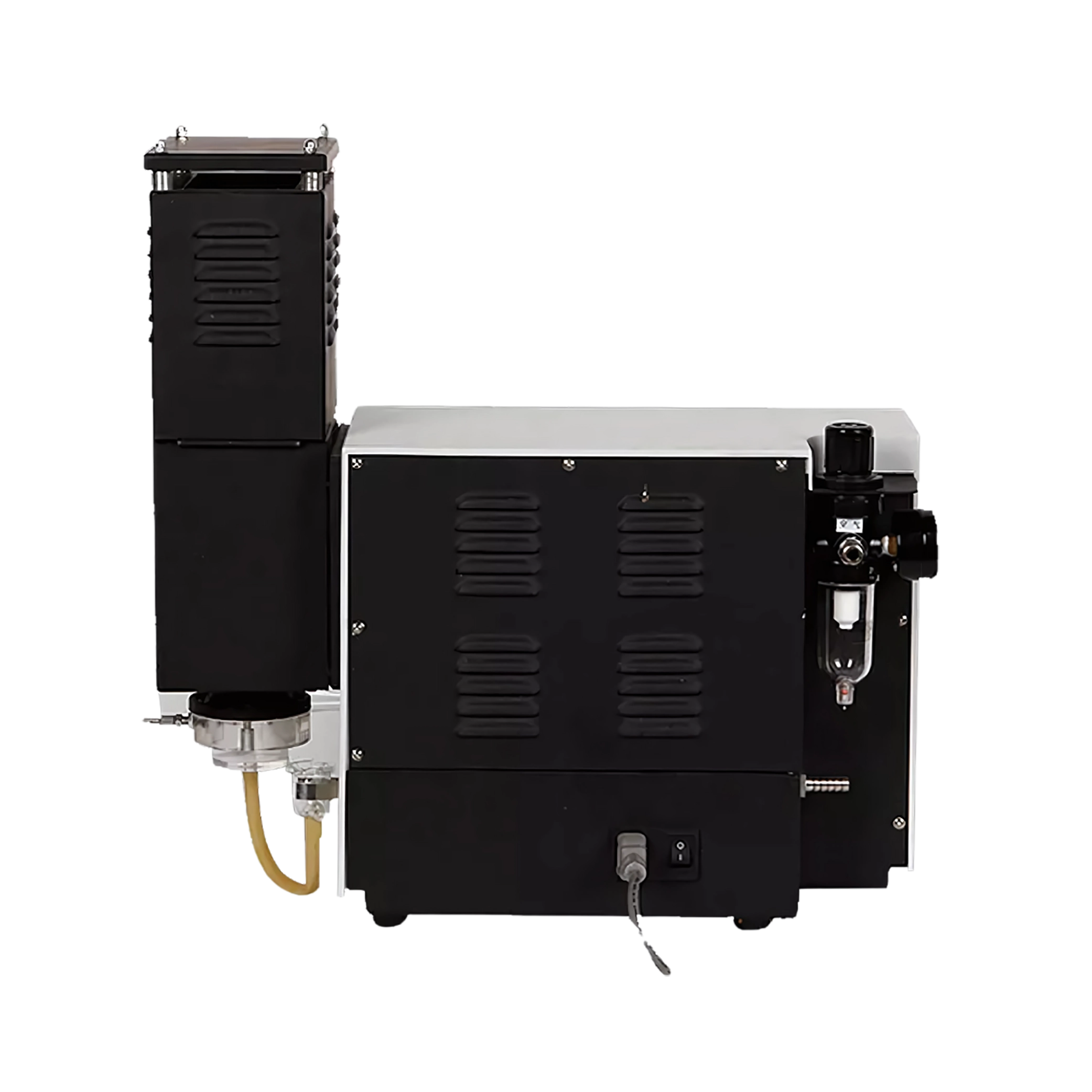

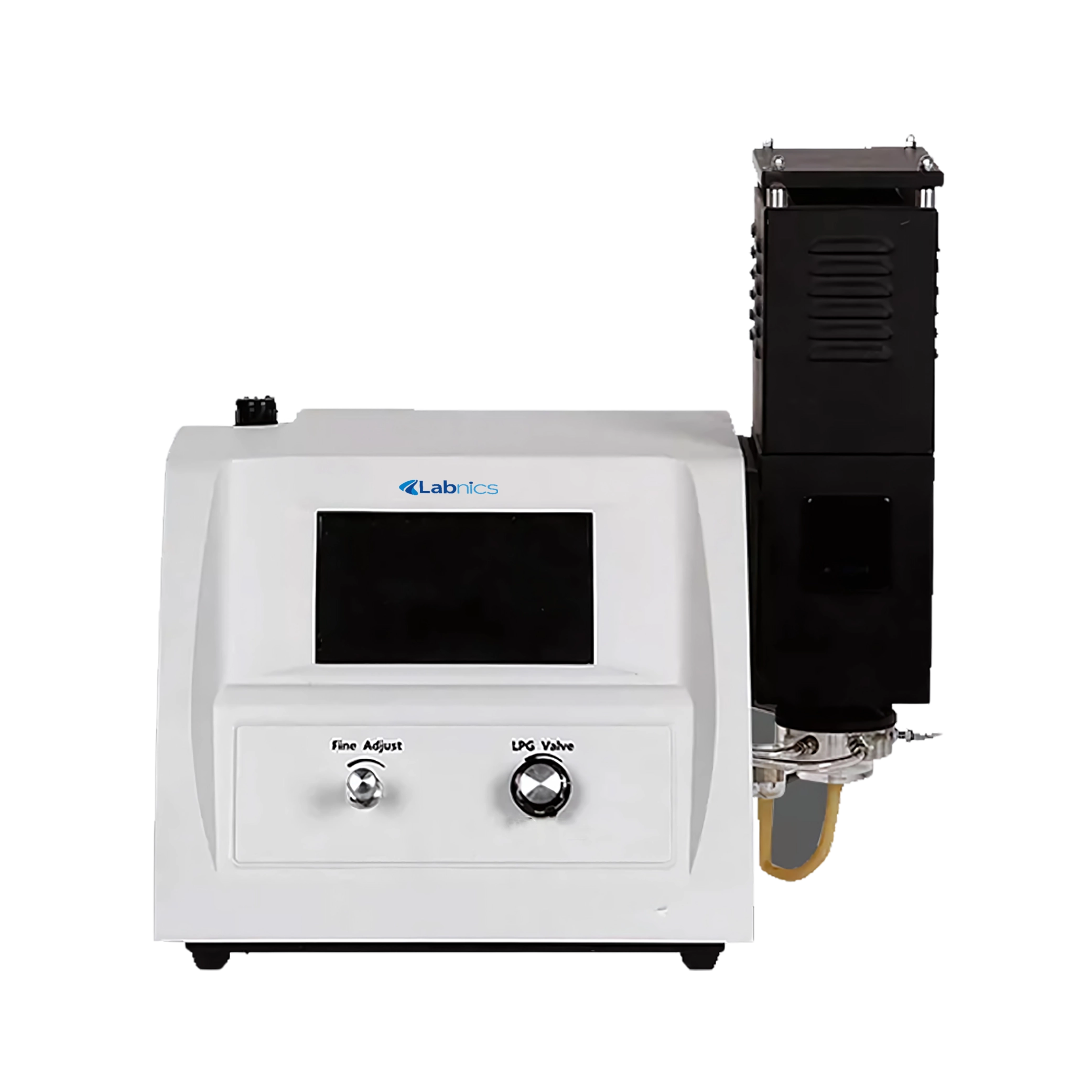

Flame Photometer NFP-100 is an analytical instrument that determines concentration of metal ions like K and Na in a test sample on the basis of their flame color and excitation wavelengths. It is supported with USB interface for data transfer and storage. It is featured with large color screen that displays and represents analyzed data in graphical curve format.


Catalog

Specifications

Testing Elements K,Na
Display Value Optical power
No of Channels 2
Data Range 0000~9999
Range K (0-100 ppm), Na(0-160 ppm)
LOD (in ppm) K (0.01 ppm), Na(0.01 ppm)
Linear Error K (0.195 ppm), Na (0.69 ppm)
Response time <8s
Sample uptake <6ml/min
Stability <3% drift over 15s during continuous aspiration
Reproducibility <3% coefficient of variation for 7 consecutive samples
Fuel LPG
Power consumption 250 W
Power supply AC 220V±22V 50Hz±1Hz
Working Temperature 10°C -35°C
Relative Humidity ≤ 85% RH
Overall Dimensions 780×560×390 mm
Weight 18 kg

Features

  • 7 inch Color touch screen display
  • It allows pre- selection of flame sizes
  • It is equipped with flame out protection devices
  • It is supported with air compressor that ensures essential stable flame conditions
  • It provides selection of different concentration units
  • It is featured with multilingual user interface

Applications

  • It has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries.

Ask Expert

Related Models Of Flame Photometer

Labnics Flame Photometer are designed to measure the concentration of metal ions using flame color and excitation wavelengths. These units come with a color touch screen display for clear data visualization. Our units are equipped with flame out protection devices for safe operation. They include an air compressor to ensure stable flame conditions. These units feature a multilingual user interface for easy operation in various settings.

Flame Photometer NFP-102

Testing Elements K, Na and Li
Display Value Concentration value
No of Channels 3
Catalog

Flame Photometer NFP-103

Testing Elements K, Na and Ca
Display Value Concentration value
No of Channels 3
Catalog

Flame Photometer NFP-104

Testing Elements K, Na and Ba
Display Value Concentration value
No of Channels 3
Catalog
Flame Photometer NFP-105
Testing Elements K, Li, Na, and Ca
Display Value Concentration value
No of Channels 4
Catalog
Flame Photometer NFP-106
Testing Elements K, Li, Na, Ca and Ba
Display Value Concentration value
No of Channels 5
Catalog

Flame Photometer NFP-101

Testing Elements K, Na
Display Concentration value
Element Display Channels Max. 3 channel
Catalog
