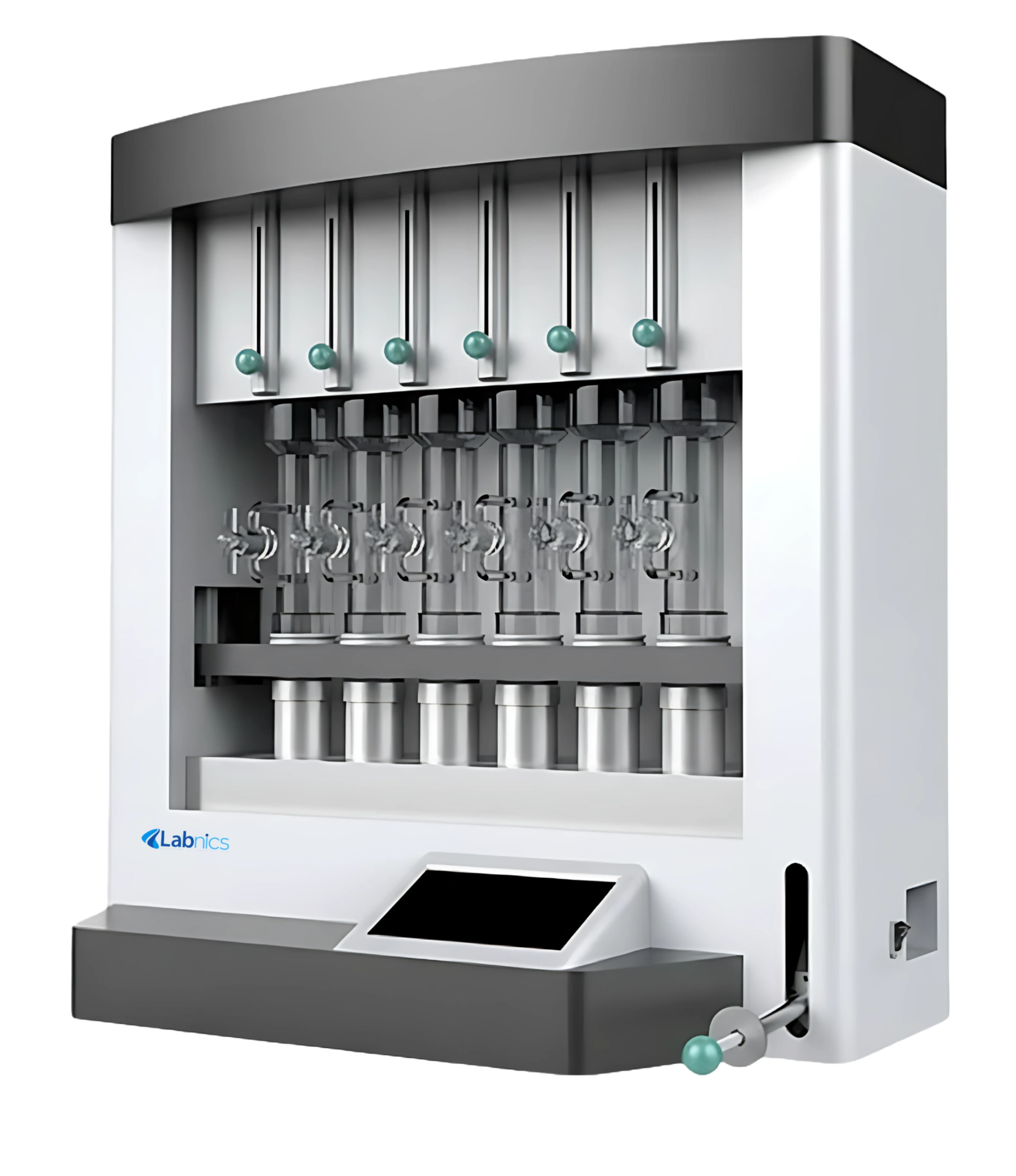

Labnics Fat Analyzer NASE-100 supports fat testing and crude fat analysis in food, feed, grain and oil samples. The fat analysis equipment offers a 0.1–100% measuring range and 0.5–20 g sample capacity for varied sample requirements. Six-sample batch operation and ≥85% solvent recovery support convenient food fat analysis.
$5,775.00
| Measuring Range | 0.1% to 100% |
| Sample Weight | 0.5 to 20 g |
| Temperature Range | RT+5 to 280 ℃ |
| Temperature Accuracy | ±1 ℃ |
| Capacity / Batch | 6 pcs |
| Solvent Recovery Rate | ≥85% |
| Extraction Time | Adjustable |
| Solvent Volume | 80 ml |
| Power Supply | 220 V 50/60 Hz; optional 110 V |
| Power Consumption | 1000 W |
| Dimension | 650 × 320 × 680 mm |
| Packing Dimension | 730 × 400 × 760 mm |
| Net Weight | 35 kg |
| Gross Weight | 50 kg |
Metal Bath Heating — Provides controlled heating from RT+5 to 280°C.
Over-Temperature Alarm — Alerts when the temperature exceeds the set limit.
Duration Control — Supports controlled extraction time during testing.
Flexible Lifting Operation — Facilitates smooth lifting during sample processing.
Air-Layer Insulation — Supports heat insulation and heat preservation.
Six-Sample Batch Capacity — Allows simultaneous processing of six samples.
Solvent Recovery — Provides ≥85% solvent recovery.
Smart Control — Supports convenient operation and process management.
Food Processing Industries | Agricultural Laboratories | Animal Feed Industries | Environmental Monitoring Laboratories |
Determines fat content in food and oil products with metal bath heating and leak-free solvent recovery | Measures crude fat in grain and feed samples with wide temperature control and over temperature alarm | Analyzes fat content in animal feed with isolated circuit extraction and duration control system | Monitors fat compounds in soil and fertilizer samples with a programmable timer and an LCD temperature display |
