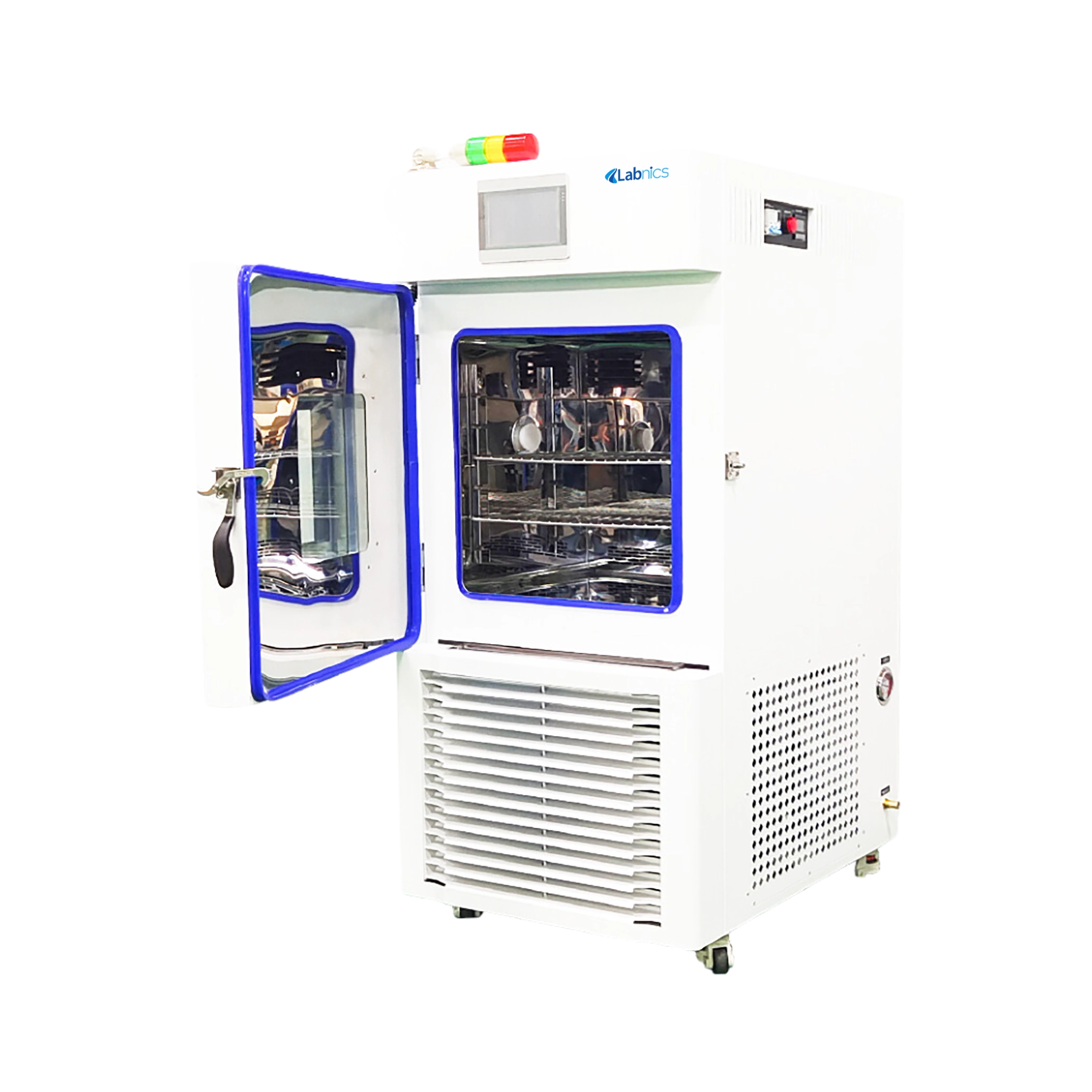

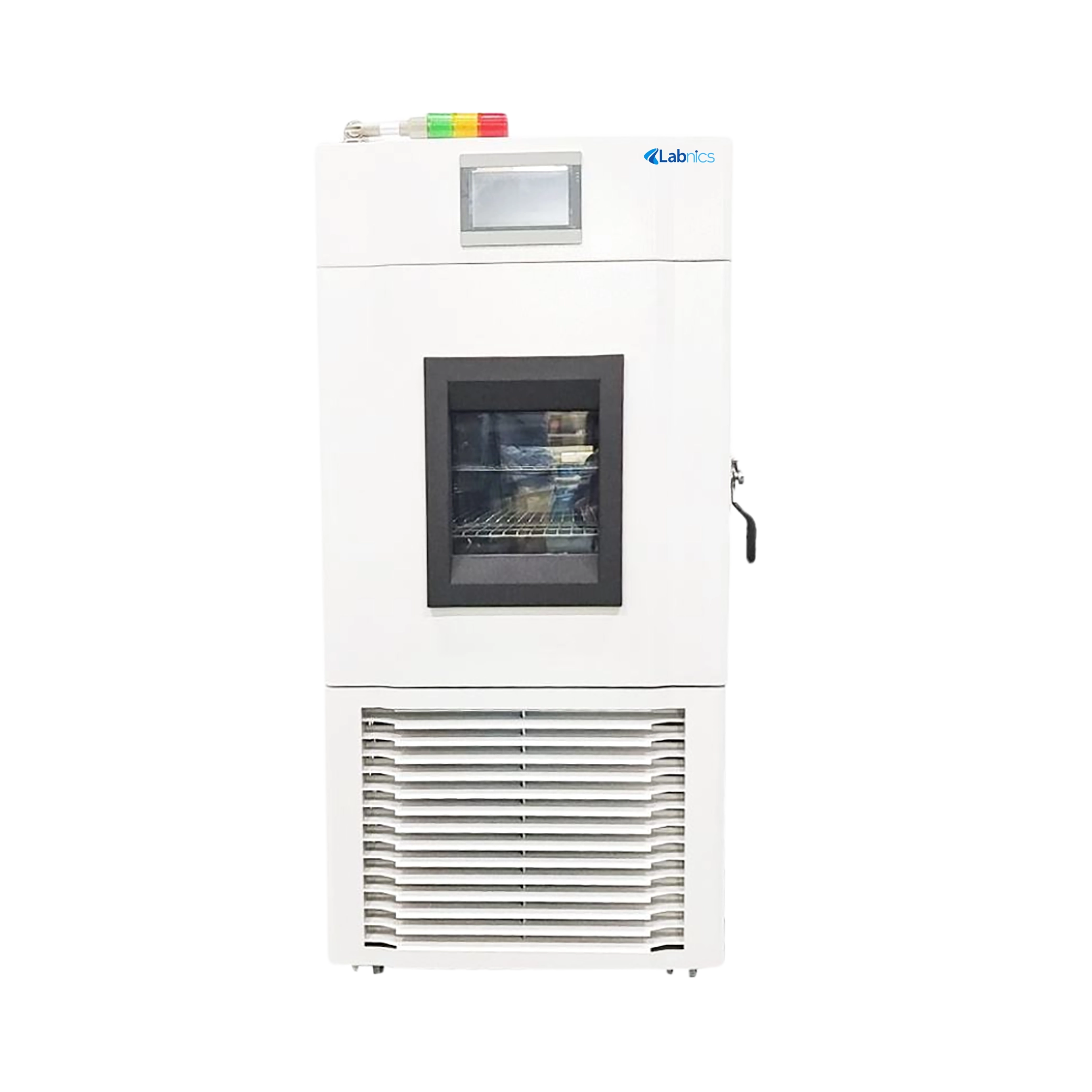

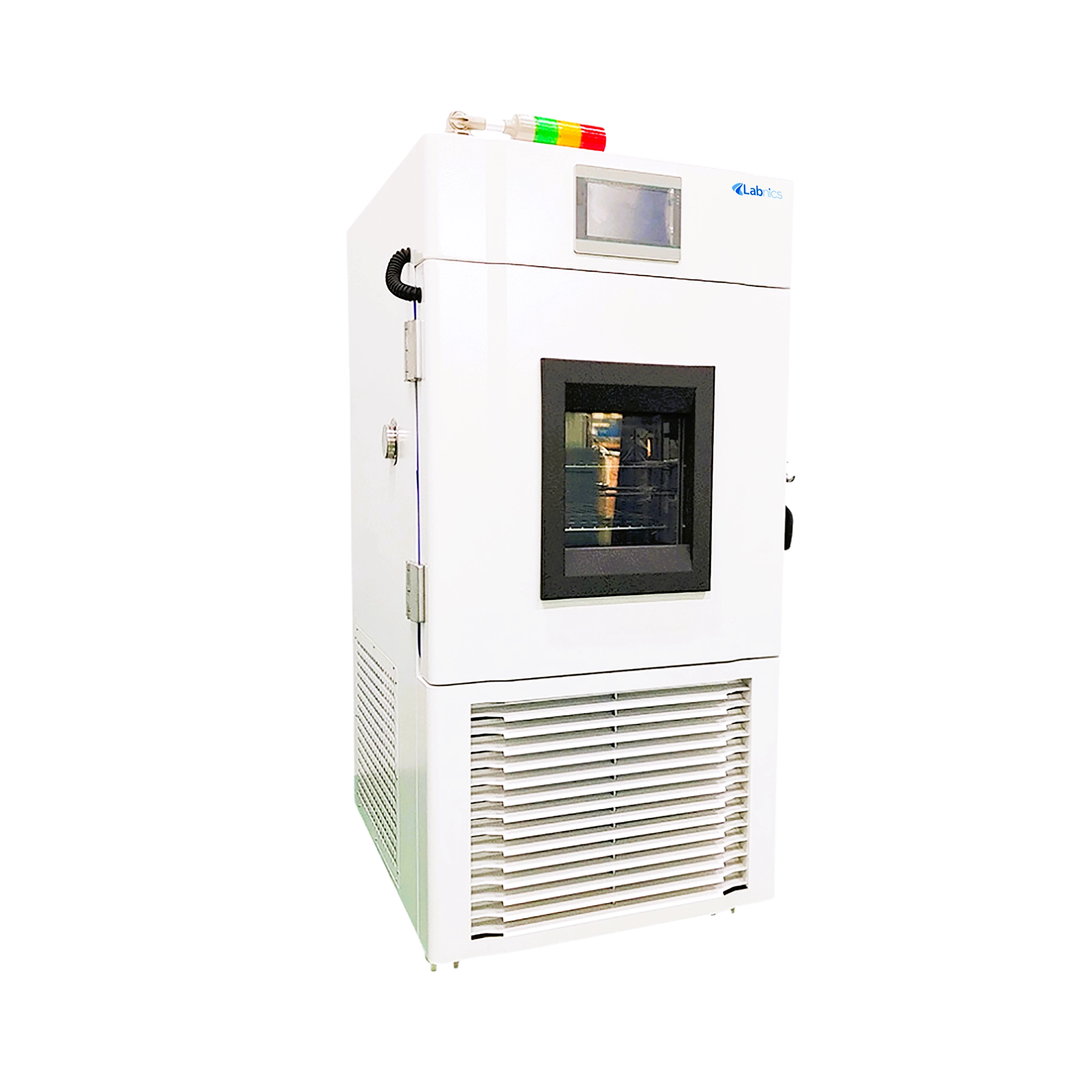

Environmental Test Chamber NETC-401

Environmental Test Chamber NETC-401 features a 150L capacity, making it ideal for various testing applications. It employs a unique air duct circulation system to ensure uniform temperature and humidity distribution. This unit is designed with a Φ25mm test port, providing convenient access. It includes a screen lock function that prevents accidental interference, ensuring continuous operation. Our chamber comes with a touchscreen display that offers a user-friendly interface for easy program editing and monitoring.

---

$4,688.00

Buy Now Catalog

Specifications

Capacity	150L
Working temperature	RT +5 to -35°C
Temperature control range	5 to 85°C RT+10 to 85°C -10 to 85°C -20 to 85°C
Temperature resolution	0.1°C
Temperature fluctuation	±0.5 to 1.0°C
Humidity control range	30 to 95%RH; 60 to 95%RH
Humidity deviation	±3%RH
Temperature probe	PT100
Humidity probe	Capacitive digital
Carrying basket	2
Display	LCD
Power consumption	1600W
Power supply	AC220/50Hz
Chamber dimension	480×400×780mm
External dimension	600×680×1520mm

Features

• Remote monitoring and control options
• Energy-efficient and eco-friendly design
• Robust safety features and alarms
• Easy-to-clean stainless steel interior
• Multi-stage programmable PID controller
• Real-time status display and curves
• High-quality compressor and circulation fan

Applications

• Environmental Test Chamber NETC-401 is used to replicate diverse environmental conditions to evaluate the performance of products under controlled temperature and humidity. It is widely used in industries such as electronics, automotive, aerospace, pharmaceuticals, food, and construction for testing and quality assurance.
