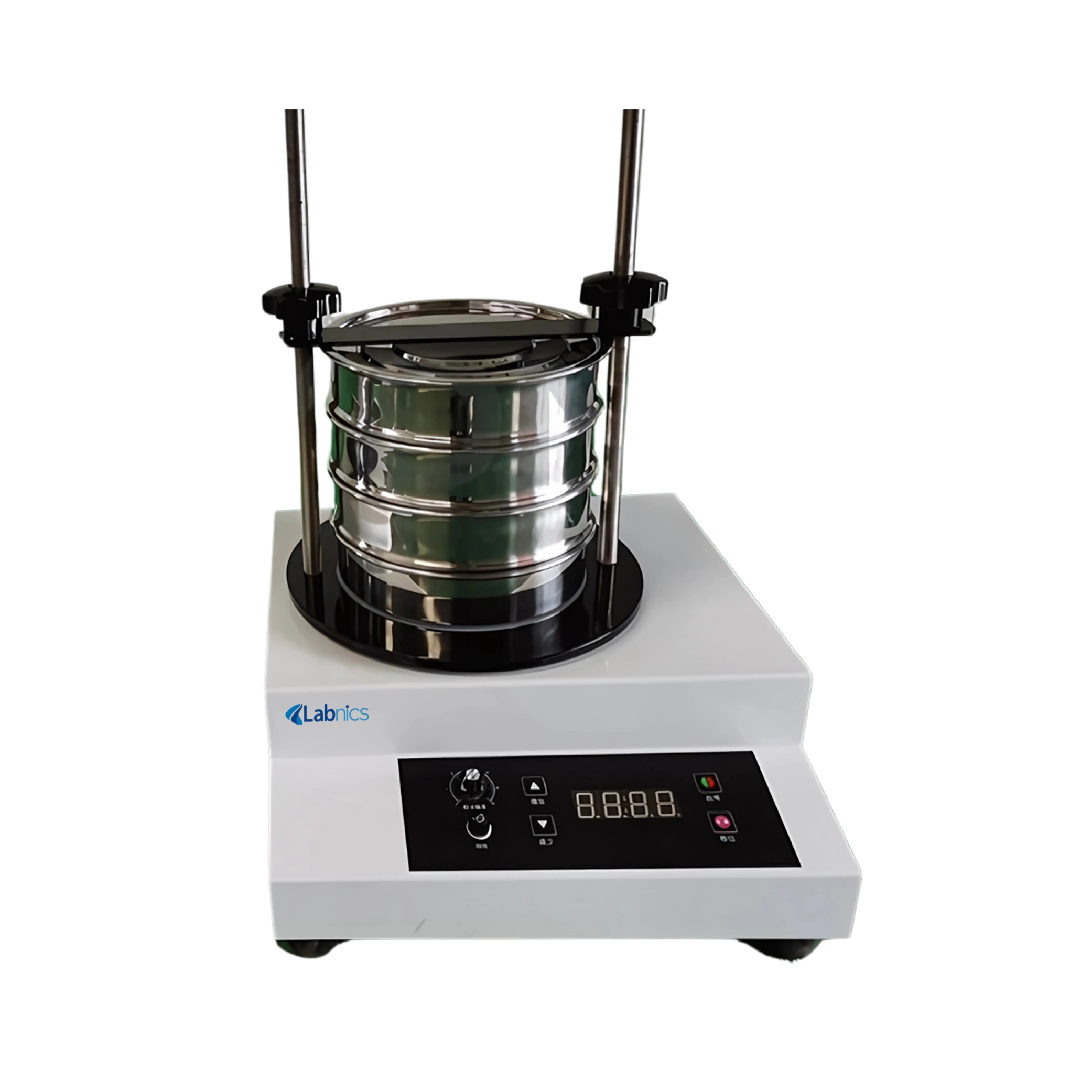

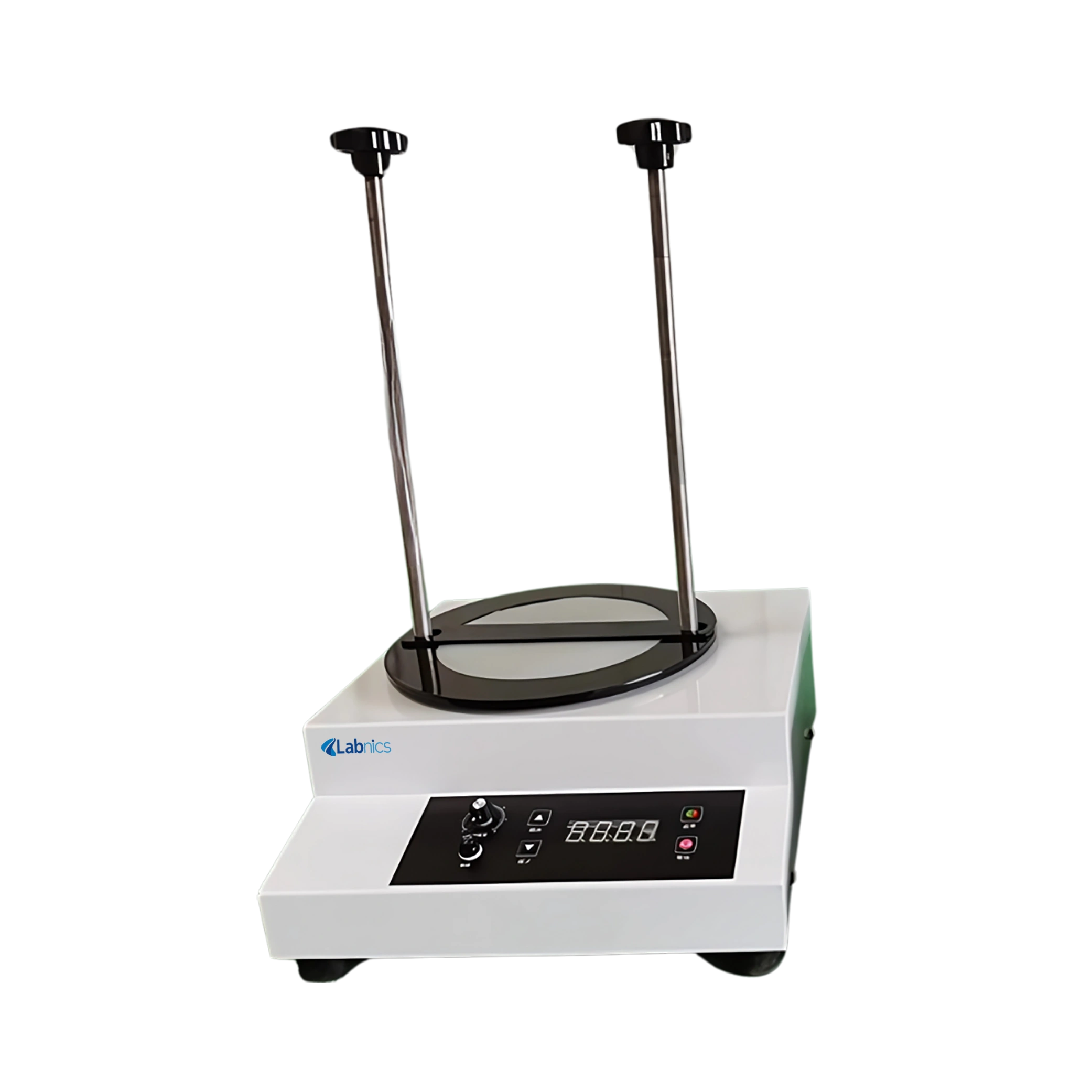

Electromagnetic Sieve Shaker NEMS-100

Electromagnetic Sieve Shaker NEMS-100 is mainly used to measure the particle size distribution of raw materials and determine the impurity content or solid content in liquids. It has compact structure, low noise, high efficiency, and high precision. Features 1 to 8 sieve working layers which rotates at speed of 3000 rpm for fine particle distribution analysis. Equipped with high-quality vertical vibration motors or electromagnets, it generates multidimensional high-frequency vibrations for effective screening tests.

Get Quote Download Catalog

Specifications

Maximum working layers	1-7 layer
Sieve diameter	Ø 75 × 100 × 200 Mm
Granularity	0.02-80 Mm
Noise	≤ 50 DB
Feeding capacity	≤ 200 G
Amplitude	≤ 3 Mm
Voltage	220V 50/60 Hz
Speed	3000 R/min
Power	0.5 Kw
Overall dimension (W × D × H)	390 × 410 × 620 mm
Weight	46 Kg

Features

✔ Small size, light weight, and movable electromagnetic sieve shaker
✔ With adjustable amplitude and timer, it ensures consistent sieving superior to manual methods
✔ Precision screening, capable of screening up to 500 mesh
✔ Low noise, low consumption
✔ Offering diverse structures with a combination of carbon steel sprayed and stainless steel to meet customer needs

Applications

It is widely employed in scientific labs and quality control units and is designed for measuring particle size distribution and determining impurity or solid content in liquids.
