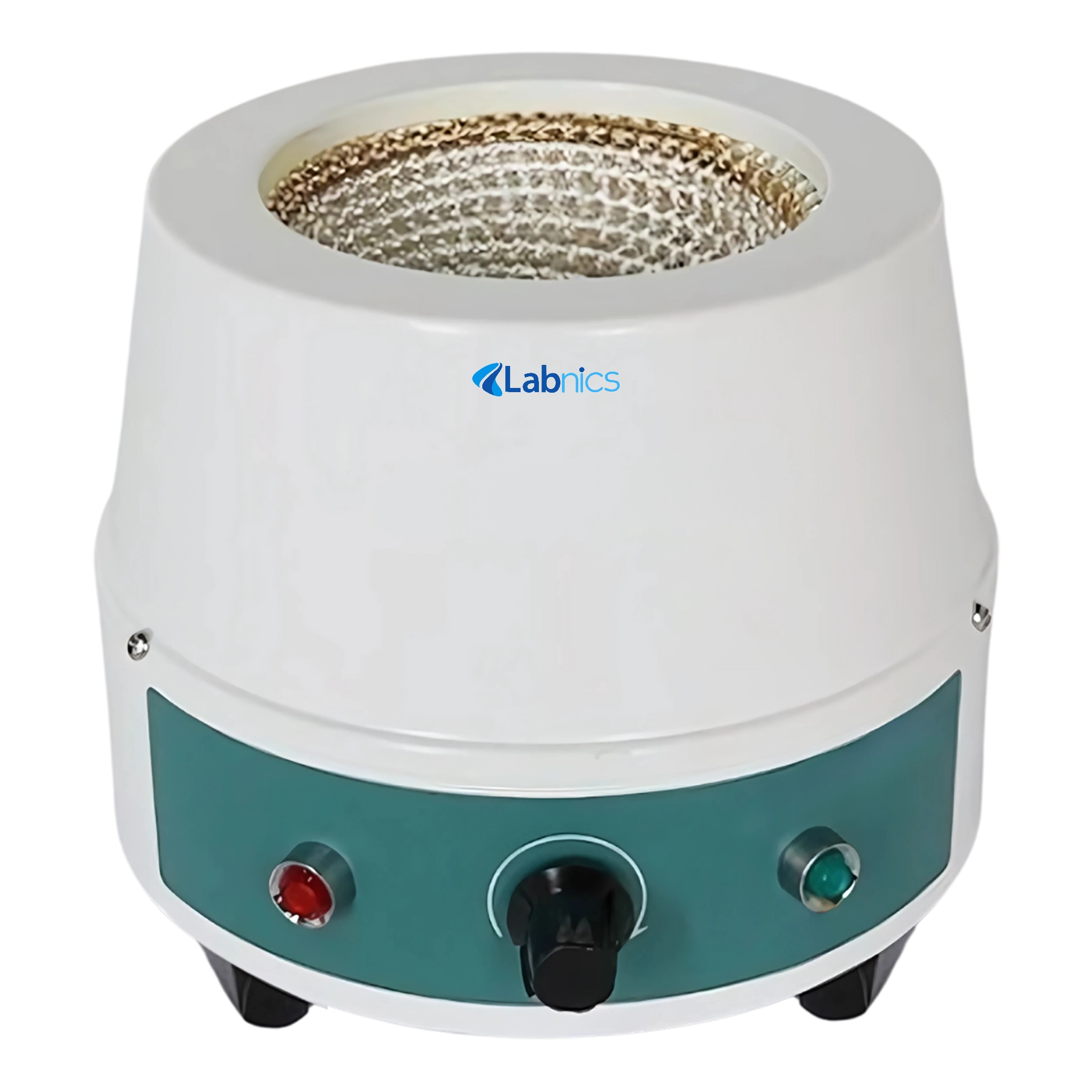

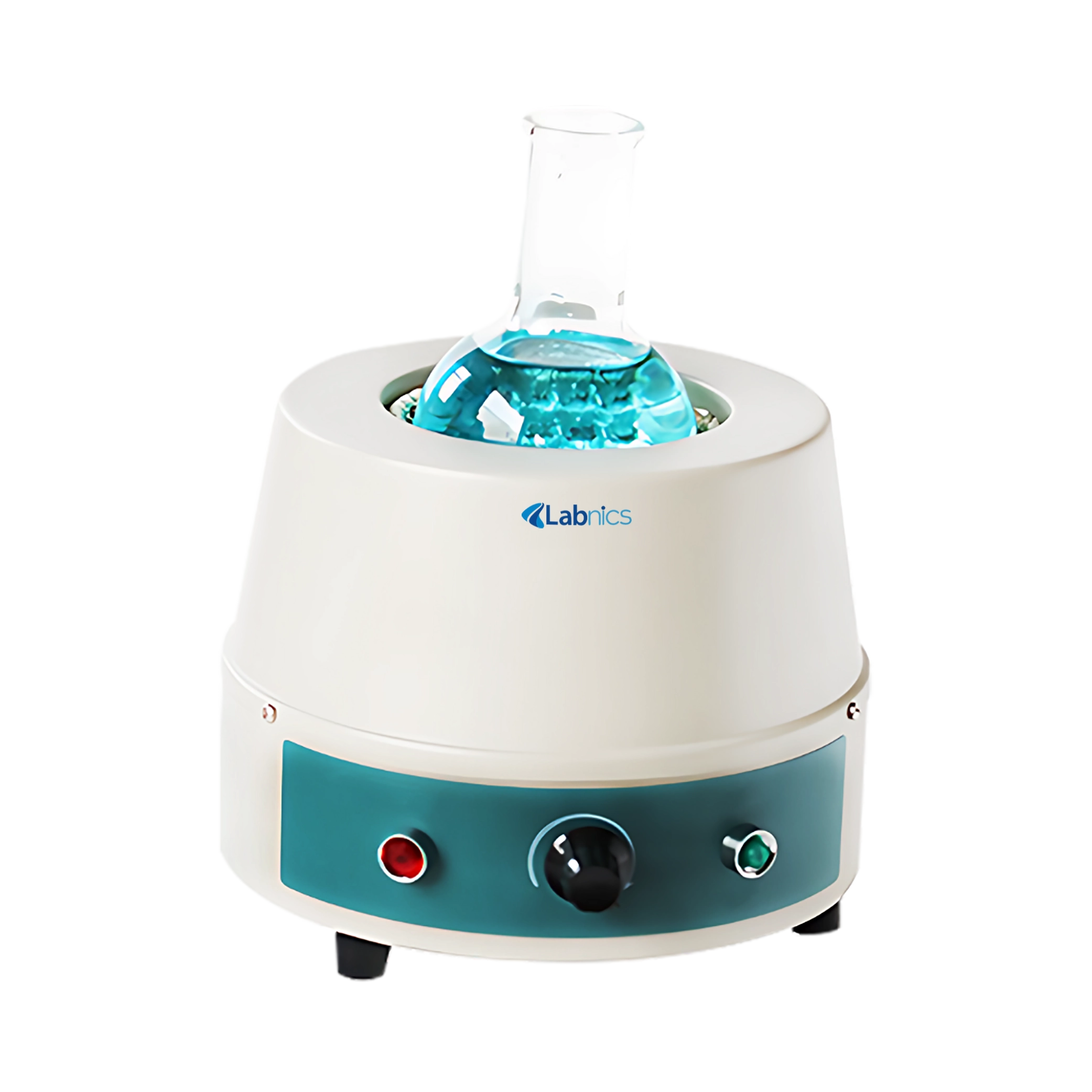

Electric Heating Mantle NEHM-104 is a compact laboratory equipment which is used to heat or temper a liquid by means of the heating elements present in the heating mantle. Equipped with PID temperature controller, it provides uniform heat distribution for round bottom flasks. The mantle is designed in a manner to securely hold flasks so that the top half of the flask is easily visible during operation.
Specifications
| Capacity | 1000 ml |
| Heating mode | Surface heating conduction |
| Maximum temperature | 380 °C |
| Power | 350 W |
| Heating element | Nichrome wire |
| Working time | Continuous |
| Exterior dimension | φ 280 × 220 mm |
| Packaging dimension | 280 × 280 × 300 mm |
| Power supply | AC 110/220 V , 50/60 Hz |
| Net Weight | 5.5 kg |
| Gross Weight | 6 kg |
Features
Applications
Ask Expert
