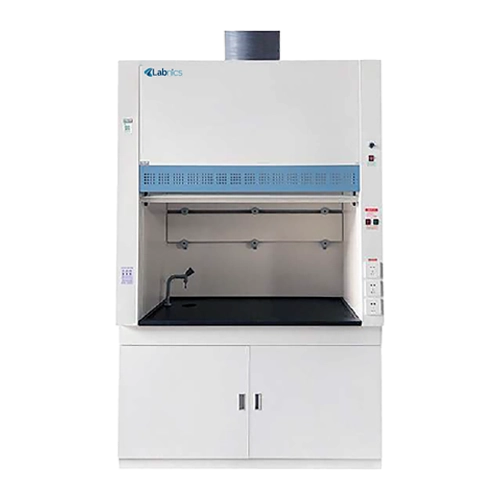

Ducted Fume Hood NDFH-105

Ducted Fume Hood NDFH-105

Ducted Fume Hood NDFH- 105 also known as fume cupboard is designed to draw air away from the working area to protect the user from inhaling hazardous air contaminants or other toxic chemicals. The fume hoods create a negative air pressure environment by pulling the contaminated air up and away from the user's breathing zone and into a ventilation system or filter chamber. Anti-corrosive, anti-acid compact panel ensures safe working environment.


Catalog

Specifications

Overall dimension (L × W × H) 1800 × 800 × 2350 mm
Working area dimension (L × W × H) 1550 × 700 × 1150 mm
Surface wind speed 0.3 to 0.6 m/s
Light LED lamp
Exhaust duct diameter 250 mm
Sliding door thickness 5 mm
PP cup diameter 100 mm
Worktop thickness 12.7 mm
Inner lining board thickness 5 mm
Shell thickness 1.0 mm
Axial fan flow 110 W
Air Flow Velocity 1850 m3/h
Rated Power 2000 W
Noise level ≤ 60dB
Power Supply AC 110 V/ 220 V; 50-60 Hz

Features

  • Main body of 1.0mm thickness cold-rolled steel with epoxy resin powder coating
  • Work Top 12.7 mm thick solid physiochemical board
  • Corrosion and acid resistant work top
  • Tempered glass sliding door

Applications

  • Used in research & development processes, pharmaceutical laboratories, microbiological laboratories, quality control laboratories, etc.

Standard Accessories

Accessories No. Name
1 10A socket
2 Fan
3 Duct
4 Faucet (water type)
5 Sink (water type)
6 LED

Optional Accessories

Accessories No. Name
1 LCD panel
2 Gascock
3 Drip rack
4 Electric damper
5 Manual damper

Ask Expert

Related Models Of Ducted Fume Hood

Labnics Ducted Fume Hood have advanced airflow systems that effectively remove hazardous air contaminants. They have sliding doors for easy access and safe containment of hazardous fumes. Their main bodies are constructed from thick steel with a protective coating, ensuring durability. They create a negative air pressure environment that directs contaminated air away for safety. Our fume hoods have integrated LED lighting for improved visibility in the workspace.

Ducted Fume Hood NDFH-100

Overall dimension (L × W × H) 800 × 650 × 1900 mm
Working area dimension (L × W × H) 600 × 600 × 750 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog

Ducted Fume Hood NDFH-101

Overall dimension (L × W × H) 1000 × 650 × 1900 mm
Working area dimension (L × W × H) 800 × 600 × 750 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog

Ducted Fume Hood NDFH-102

Overall dimension (L × W × H) 1200 × 650 × 1900 mm
Working area dimension (L × W × H) 1000 × 600 × 750 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog
Ducted Fume Hood NDFH-103
Overall dimension (L × W × H) 1500 × 650 × 1900 mm
Working area dimension (L × W × H) 1300 × 600 × 750 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog
Ducted Fume Hood NDFH-104
Overall dimension (L × W × H) 1200 × 800 × 2350 mm
Working area dimension (L × W × H) 950 × 700 × 1150 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog

Ducted Fume Hood NDFH-106

Overall dimension (L × W × H) 1500 × 800 × 2350 mm
Working area dimension (L × W × H) 1250 × 700 × 1150 mm
Surface wind speed 0.3 to 0.6 m/s
Catalog

Ducted Fume Hood NDFH-107

External Dimension (W × D × H) 1800 × 850 × 2350 mm
Internal Dimension (W × D × H) 1560 × 680 × 1150 mm
Base Cabinet Dimension (W × D × H) 1800 × 800 × 850 mm (removable)
Catalog

Ductless Fume Hood

Labnics Ductless Fume Hood uses HEPA filters to purify and redirect contaminated air back into the workspace. They include plexiglass windows for increased safety and monitoring. These fume hoods provide a safe work environment and protect against exposure to harmful chemicals. They are made of steel with a protective coating that ensures durability and resistance to corrosion. Our units include wheels for easy movement and enhanced portability.

Ductless Fume Hood NDFH-200

Overall dimension (L × W × H) 800 × 650 × 1900 mm
Working area dimension (L × W × H) 725 × 620 × 700 mm
Air speed 220 – 1200 m3/h
Catalog

Ductless Fume Hood NDFH-201

Overall dimension (L × W × H) 1000 × 650 × 1900 mm
Working area dimension (L × W × H) 920 × 620 × 700 mm
Air speed 220 – 1200 m3/h
Catalog
Ductless Fume Hood NDFH-202
Overall dimension (L × W × H) 1200 × 650 × 1900 mm
Working area dimension (L × W × H) 1125 × 620 × 700 mm
Air speed 220 – 1200 m3/h
Catalog

Benchtop Downdraft Hood

Labnics Benchtop Downdraft Hood features adjustable alarm settings that notify users of temperature or humidity deviations. These units are constructed from durable materials for superior chemical resistance and longevity. They feature a bottom exhaust system that efficiently removes air and contaminants from the workspace. They utilize dual-layer filters for enhanced air quality management. Our hoods come with advanced software for improved control and management of the functions.

Benchtop Downdraft Hood NDDH-100
External Dimensions 900 × 750 × 1245 mm
Internal Dimensions 875 × 568 × 700 mm
Working Area Dimensions 813 mm × 610 mm
Catalog
