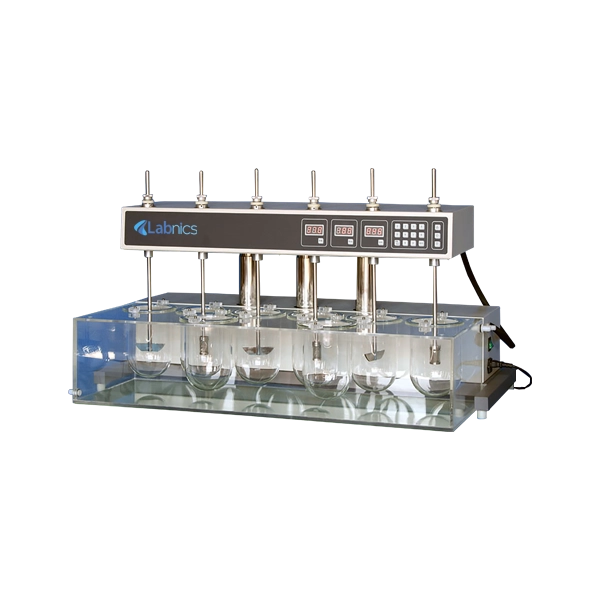

Dissolution Tester NDST-104

Dissolution Tester NDST-104

Dissolution Tester NDST-104

Dissolution Tester NDST-104 comes with an automated head movement, has a configuration of eight vessels and six poles. The basket units and paddle units are made of stainless steel that aids in resistance to high temperature. Speed ranging from 20 to 200 rpm with a temperature ranging at 45 ̊C.

Specifications

Configuration Eight vessels and eight poles
Head Movement Auto
Speed Range 20 to 200rpm
Speed Accuracy ± 2rpm
Temperature Range RT 45.0℃
Temperature Accuracy ± 0.3℃
Time Range Nine points (1 to 999) min
Timer Accuracy ± 0.3%
Basket Radial Run-Out ± 1 mm
Paddle Radial Run-Out ± 0.5 mm
Axis Rotation Concentricity ± 2.0 mm
Electrical Supply AC 220 V 50 HZ
Heating Power 1000 W
Power 1200 W
Net Weight/Gross Weight 58 kg/96 kg
Overall Dimension 96 × 52 × 48 cm
Packing Dimension 120 × 63 × 60 cm

Features

Applications

It is widely used for detecting velocity and extent of pharmic dissolution from tablet, capsule in prescriptive menstruum.
