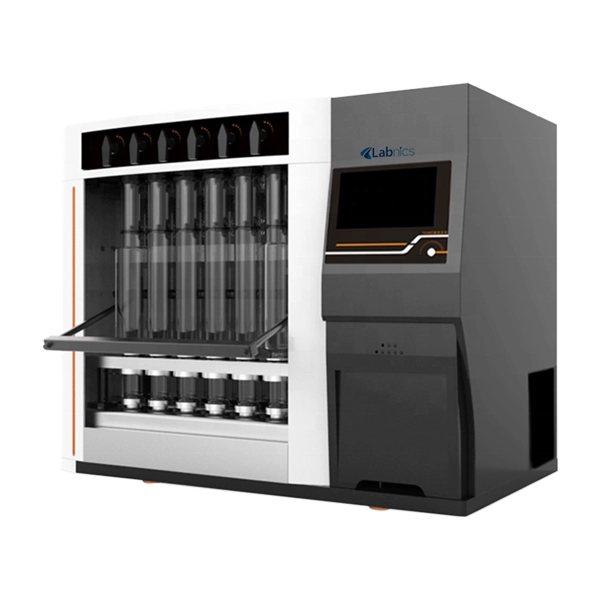

Fiber Analyzer NFA-100

Fiber Analyzer NFA-100 is a semi-automated fibre analyser, suitable for the determination of raw/crude fibre. It employs the conventional Weende method for fibre analysis. With advanced design and easy operation, this machine helps determine the neutral detergent fibre (NDF), acid detergent fibre (ADF) as well as hemicellulose and acid detergent lignin (ADL).

---

Get Quote Catalog

Specifications

Measuring range	0.1 % - 100 %
Sample weight	0.5 g - 3 g
Repeatability error	Raw Fibre Content below 10% - ≤ 0.4% ; Raw Fibre Content above 10% - ≤ 1%
Capacity	6 samples / batch
Pre-heating time	10 mins - 12 mins
Boiling time	13 mins -15 mins
Display	LCD
Rated power	2.2 KW
Power supply	110/220 V ± 10 %, 50/60 Hz
Dimension (L × W × H)	885 × 615 × 775 mm
Weight	118 kg

Features

• Resistant to corrosion
• Operator safety, protection against overflow of corrosive liquids
• Low energy consumption, eco-friendly
• Built-in pre-heating function
• 5 different crucible specifications to meet different sample need

Applications

• Employed in plant, feed, food and other agricultural fields for determination of crude fibre, neutral detergent fibre (NDF), acid detergent fibre (ADF) as well as for hemicellulose and acid detergent lignin (ADL).
