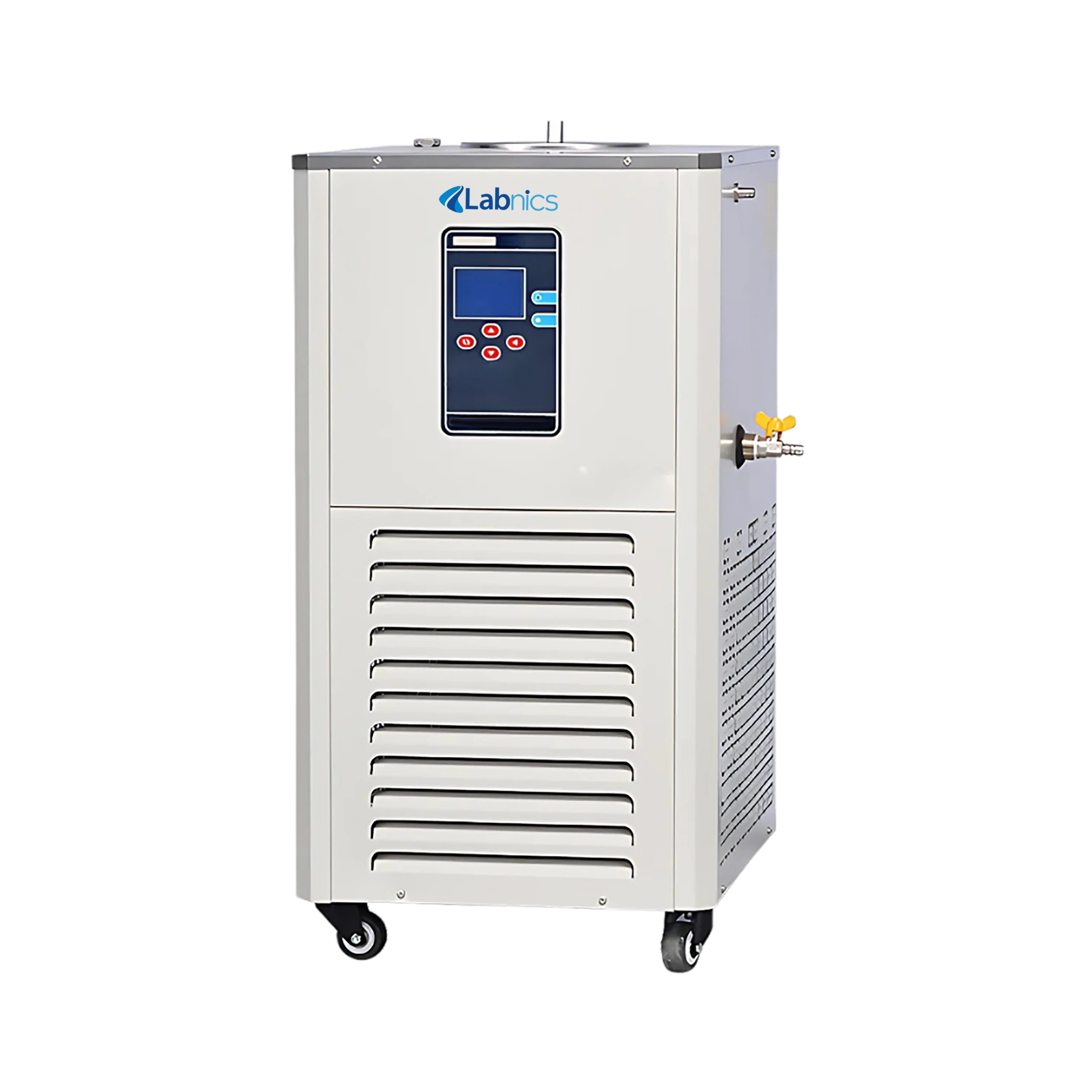

Cooling Circulator NLCC-200 offers a tank capacity of 20 liters for effective thermal fluid management. It operates within a temperature range of -20°C to RT with a precision of ±1°C. This unit comes with a closed-type compressor for stable cooling. It features a digital display that allows easy monitoring and control of key parameters. Our circulator includes a cooling grid that enhances heat exchange efficiency for reliable temperature regulation.
Overvoltage, time delay, overcurrent, overheating, leakage protector
Refrigerant
R404A
Compressor type
Closed
No. of compressor
1
Compressor power consumption
1.125 kW
Compressor current
5.1 A
Condenser type
Air cooling
No. of condenser
1
Condenser fan type
External rotor axial flow fan
Evaporator type
Internally threaded copper pipe
External circulation interface
G1/2
Circulating pump type
Shield pump
Circulating pump rated head
6 m
Circulating pump rated flow
25 L/min
Circulating pump power consumption
100W
Circulating pump current
0.5 A
Cooling capacity at 20°C
2800W
Cooling capacity at 0°C
2300W
Cooling capacity at -25°C
600W
Overall power consumption
1.3 kW
Overall power supply
AC220V, 50Hz
Product dimension
570×490×840mm
Packaging dimension
660×560×1000mm
Product weight
71 kg
Packaging weight
95 kg
Features
Air-cooled condenser
Multiple safety protections
Internally threaded evaporator
Eco-friendly refrigerant
Corrosion-resistant components
Precision fluid circulation
Applications
Cooling Circulator NLCC-200 is used to provide precise and stable cooling for temperature-sensitive processes and equipment. It is commonly used in laboratories, chemical processing plants, and industrial research facilities.
Standard Accessories
One valve
One roll of raw meal
3.6m insulation silicone hose
Ask Expert
FAQ for Cooling Circulator NLCC-200
1: How efficient is the pump system?
The Cooling Circulator uses a shielded circulating pump with a flow rate of 25 L/min and a pump head of 6 meters. This ensures steady and reliable fluid circulation across various setups.
2: Can this Cooling Circulator NLCC-200 be connected to external systems?
Yes, our Cooling Circulator has an external circulation interface with a G1/2" inner thread and an 11 mm pagoda connector. This allows easy integration with other devices requiring cooling.
3: Is the refrigerant environmentally friendly?
Yes, our Cooling Circulator uses R404A refrigerant, which is known for its efficient cooling properties and environmental compliance. This makes it a reliable and responsible choice for long-term use.
4: Can the Cooling Circulator NLCC-200 handle continuous operation?
Yes, the Cooling Circulator is designed for stable, long-duration use with reliable cooling output and thermal protection features. This makes it ideal for continuous lab procedures or process cooling.
5: How often should the Cooling Circulator be cleaned?
It is recommended to clean the unit every 2 to 4 weeks depending on usage intensity and environmental conditions. Regular cleaning helps maintain efficient cooling and extends equipment life.
Labnics Cooling Circulators are designed with a PID temperature control system for fast and stable temperature regulation. They feature an LCD unit for accurate temperature readings and real-time monitoring. These units are equipped with a durable stainless-steel interior, ensuring stable performance. They offer high-quality compressors for high refrigeration speed and stable operation. Our circulators include integrated alarm systems and protection mechanisms.
