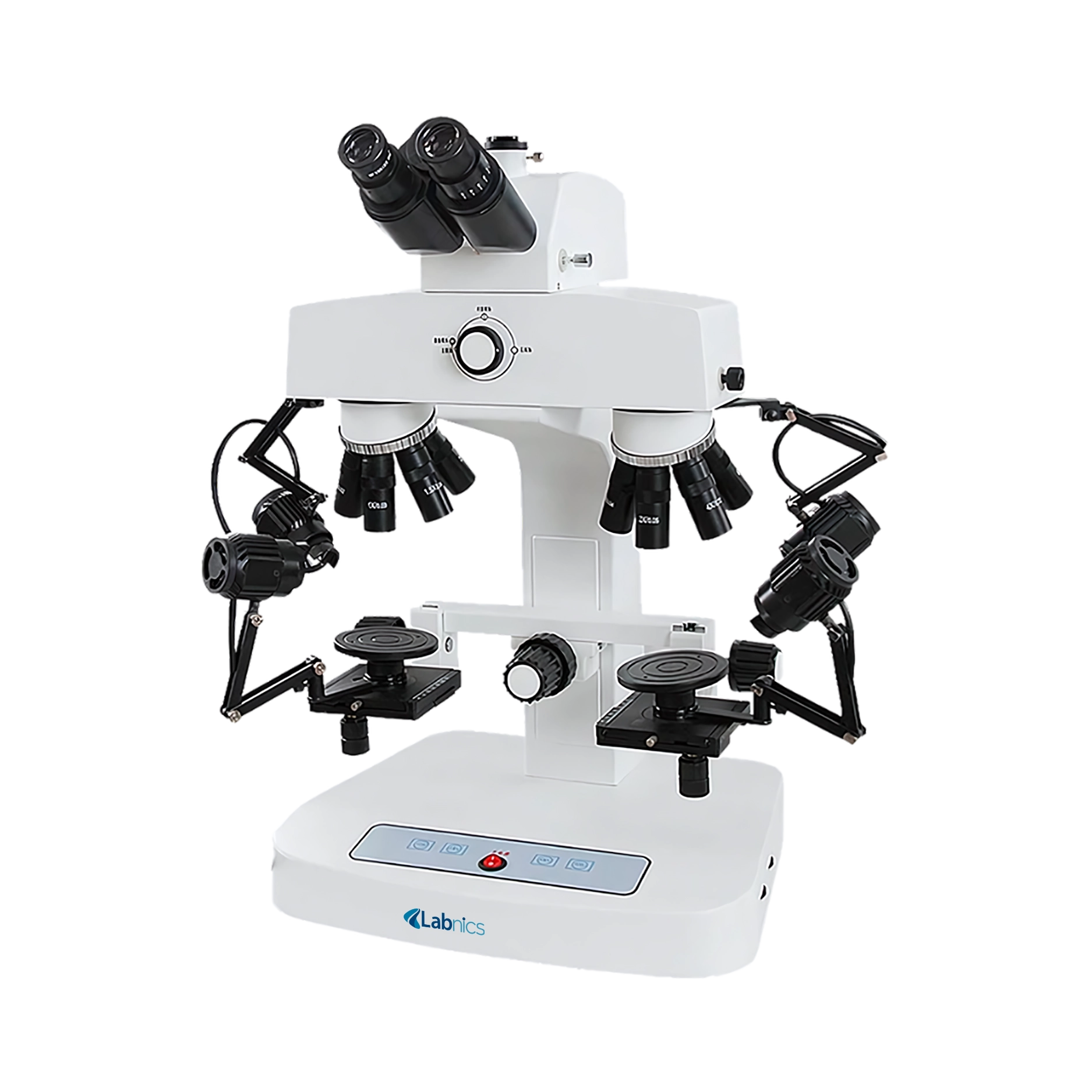

Forensic Comparison Microscope NFCM-100 provides magnification from 2x to 240x along with a field of view range of 2.3 to 62 mm. It features a touch panel control for independent or combined light source operation. This unit offers adjustable brightness and angle for flexible lighting control. It comes with a six-hole click stop nosepiece for quick objective switching. Our microscope includes a built-in high-resolution CCD camera for sharp image output.
$37,625.00
Specifications
| Magnification | 2x to 240x |
| Viewing Head | 0 to 45° tiltable binocular, interpupillary distance 48 to 75 mm, ±5 diopter adjustment |
| Eyepiece | WF10x/22mm and WF20x/12mm |
| Nosepiece | 6-hole click stop nosepiece |
| Objective | LWD infinity plan achromatic objectives (0.5x, 1x, 1.5x, 2x, 4x, 6x); auxiliary lenses (0.4x, 2.0x) |
| Working Distance | 101 mm |
| View Field | 2.3 to 62 mm |
| Magnification Correction | Built-in correcting lens |
| Separation Line Adjustment | Rear adjustment system with special driver |
| Working Stage | Square stage (90 × 90 mm, 54 mm range); round stage (90 mm dia., 0 to 45° inclined, 360° rotatable); joint movement range: L/R 54 mm, U/D 60 mm |
| Adapter | 0.5x CCD adapter, SLR camera photo adapter |
| CCD Camera | Built-in 3.0 MP, USB 2.0, 2048 × 1536 px, 3.2 µm pixel size |
| Software | Forensic image analysis with motorized/manual control for image comparison, stage movement, and rotation |
| Light Source | Halogen (12V/50W) and LED (5W) adjustable lights; coaxial, polarizing, bottom transmit, and UV lenses |
| Filters | Red, Blue, Yellow, Green |
| Power Supply | 80 to 240V |
| Dimensions | 40 × 60 × 72 cm |
Features
Applications
Optional Accessories
Light Source
Electric Bullet Holder
Electrical Elevating Working Table
Ask Expert
FAQ for Forensic Comparison Microscope NFCM-100
1: Why does the Forensic Comparison Microscope NFCM-100 offer a magnification range of 2x to 240x?
This wide magnification range in the Forensic Comparison Microscope NFCM-100 allows users to observe both general features and microscopic details, ensuring accurate comparison and identification of fine surface characteristics in forensic samples.
2: How does the Forensic Comparison Microscope NFCM-100 support high-quality imaging?
Our Forensic Comparison Microscope NFCM-100 features a built-in high-resolution CCD camera that captures sharp and detailed images, enabling digital documentation, analysis, and report generation for forensic evidence.
3: Can the lighting system in the Forensic Comparison Microscope NFCM-100 be adjusted for different sample types?
Yes, the Forensic Comparison Microscope NFCM-100 offers a touch panel-controlled lighting system with adjustable brightness and angle, along with halogen, LED, UV, and polarizing light options to accommodate a variety of forensic samples.
4: What makes the stage system of the Forensic Comparison Microscope NFCM-100 suitable for complex evidence analysis?
The Forensic Comparison Microscope NFCM-100 is equipped with a motorized 3D stage and both square and rotatable round stages, allowing precise positioning and comparison of irregularly shaped or detailed forensic samples.
5: What should I check if the Forensic Comparison Microscope NFCM-100 lighting system is not functioning?
If the lighting on the Forensic Comparison Microscope NFCM-100 fails, ensure the power source is connected properly, verify the voltage compatibility (80 to 240V), and use the touch panel to activate the correct light source.
6: How does the touch panel enhance usability in this Comparison Microscope?
The integrated touch panel on the Comparison Microscope allows easy control over light sources and operating modes. Users can quickly switch between combined or independent lighting and adjust brightness without using manual knobs, which simplifies operation and enhances workflow efficiency during detailed comparisons.
7: What should I do if the Comparison Microscope does not power on?
First, ensure the power cable is securely connected and that the main switch is turned on. Check the power outlet and verify that the voltage matches the required range for the Comparison Microscope. If the unit still does not respond, inspect the fuse or circuit breaker, and contact technical support if necessary.
8: What role does the adjustable observation head play in the Comparison Microscope?
Our Comparison Microscope features an adjustable observation head with tiltable angles and interpupillary adjustments. This ergonomic design ensures a comfortable viewing experience for users during extended periods of analysis, while also allowing fine-tuned alignment of both optical paths for accurate side-by-side comparison.
9: How does magnification correction enhance image clarity in the Comparison Microscope?
The built-in magnification correction lens in the Comparison Microscope compensates for optical distortions when switching between different objectives or eyepieces. This ensures consistent image clarity and alignment, which is essential for comparing fine details accurately across samples.
