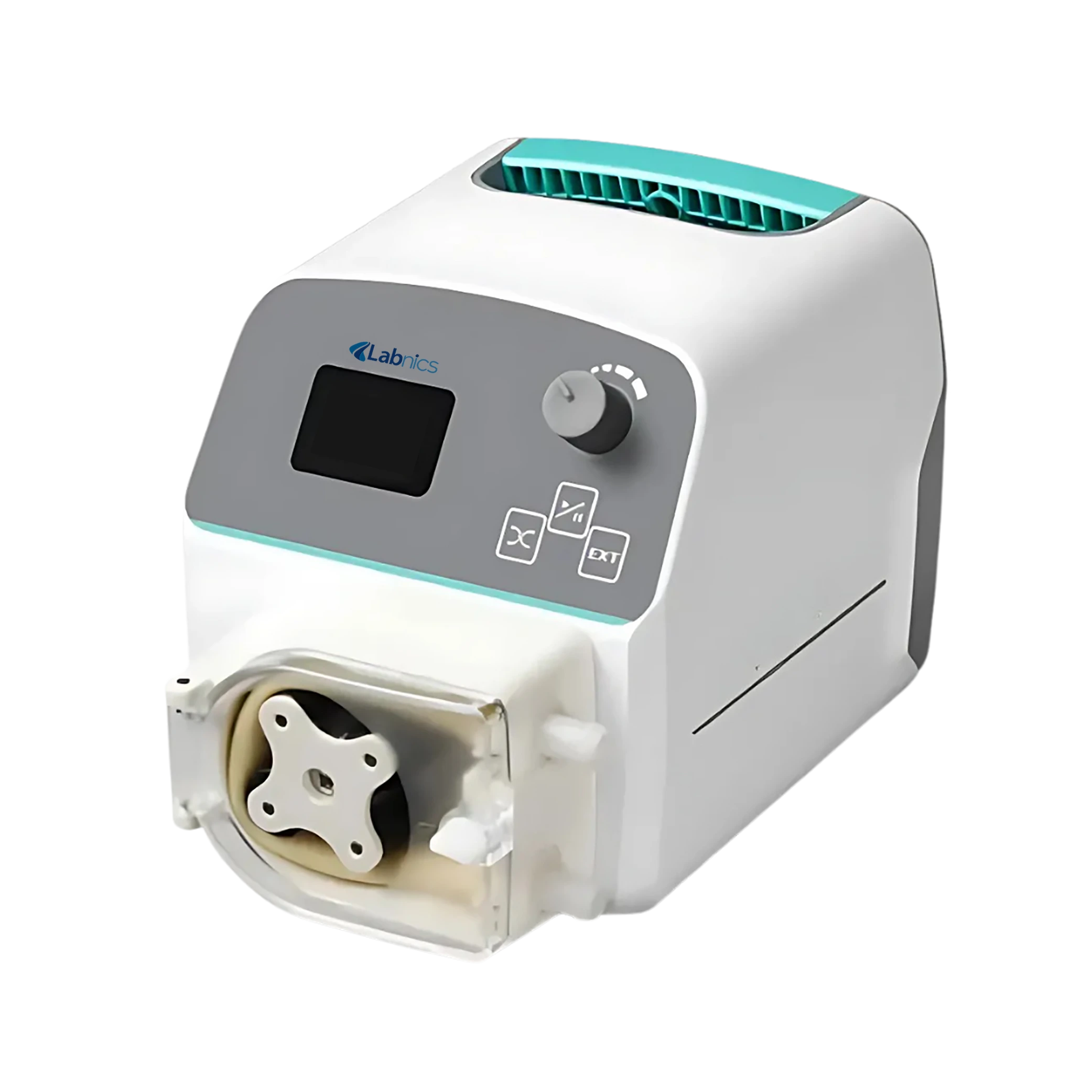

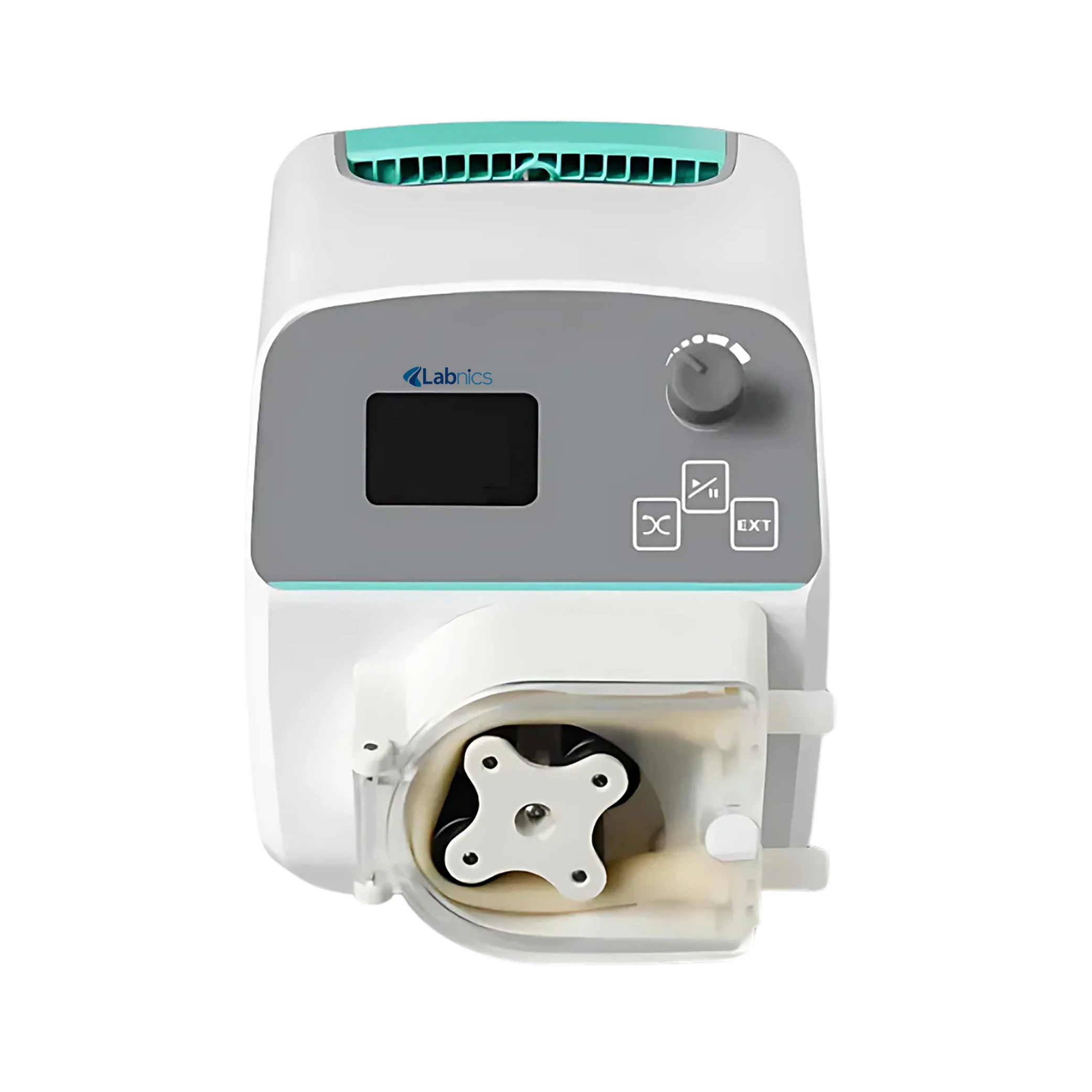

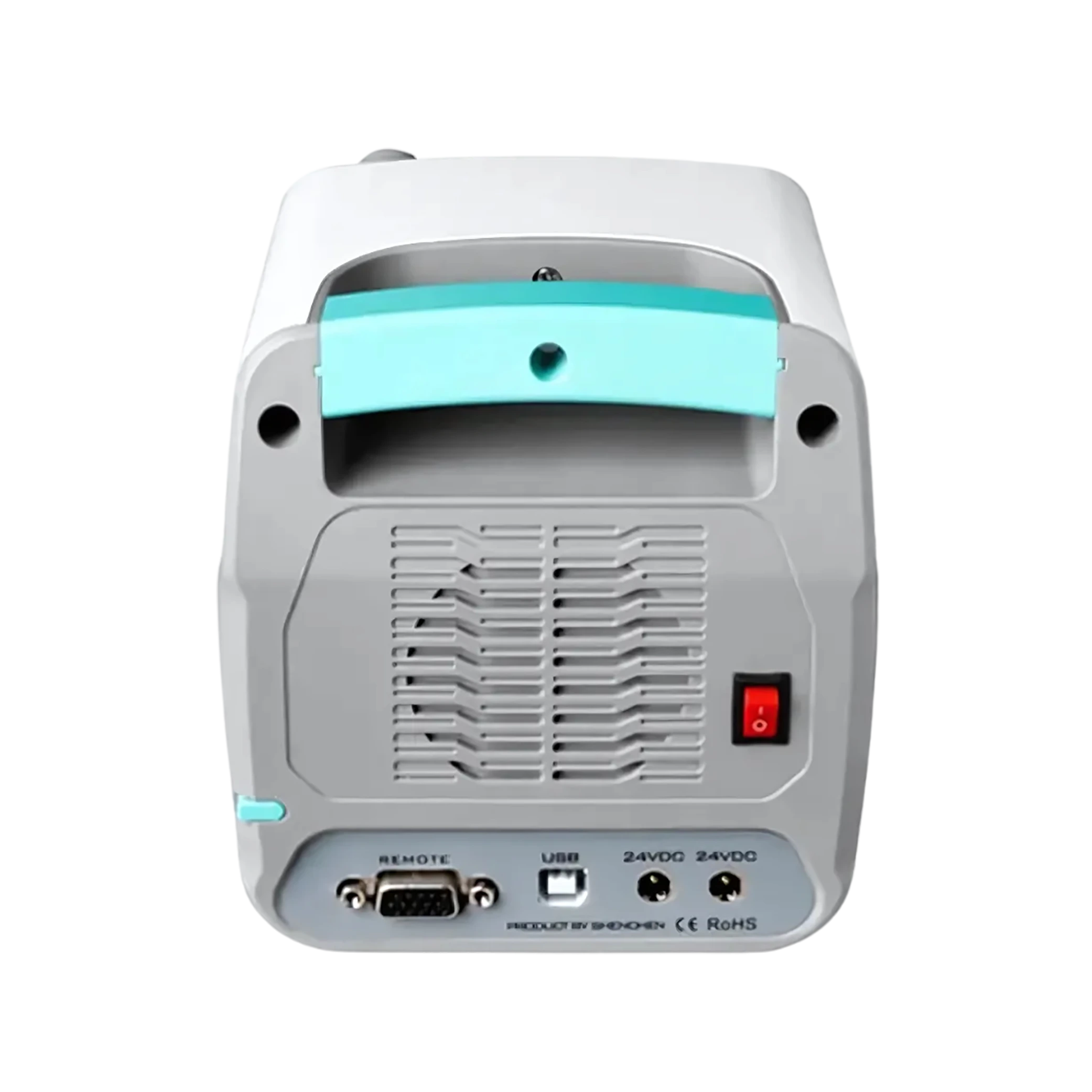

Compact Peristaltic Pump NCPP-101

Compact Peristaltic Pump NCPP-101

Compact Peristaltic Pump NCPP-101 provides flow control with rates ranging from 0.08 to 930 mL/min and an accuracy of less than 0.5%. It features an OLED screen that enables easy monitoring. Our peristaltic pump offers memory retention that saves user settings even during power interruptions. It uses an advanced digital knob control for precise speed adjustment. This unit has a compact design for convenient portability and space-saving installation.


$2,075.00

Catalog

Specifications

Flow Range 0.08 to 930 mL/min
Flow Accuracy <0.5%
Speed Range 0.1 to 350 RPM
Speed Resolution 0.1 RPM
Temperature Range 0 to 40°C
Relative Humidity <80%
Control Method Mechanical Keypad
Keypad Lifespan 300,000 times
External Control Start/stop direction control (switch signal), 0 to 5 V, 4 to 20 mA, 0 to 10 V (optional)
Communication Interface RS485 support MODBUS protocol
IP Rate IP31
Power Consumption 60 W
Power Supply DC24V/1A with power adapter
Dimension 180 × 115 × 125 mm
Weight 800 g

Features

  • Low power consumption
  • Stable flow rate
  • Various external control options
  • Transparent housing design
  • Durable PharMed tubing

Applications

  • Compact Peristaltic Pump NCPP-101 is used in laboratories and industries for precise fluid transfer and continuous dosing in pharmaceutical, chemical, and food processing applications.

Ask Expert

FAQ for Compact Peristaltic Pump NCPP-101

1: How does the OLED screen benefit users of the Compact Peristaltic Pump?

The OLED display provides clear, real-time information on motor speed and operation status, helping users operate the Compact Peristaltic Pump with accuracy and ease.

2: What makes the Compact Peristaltic Pump NCPP-101 suitable for lab use?

It features a robust ABS engineering plastic housing that offers excellent resistance to corrosion and static buildup, making it highly durable and safe for use in laboratory and industrial environments.

3: How is speed controlled on the Compact Peristaltic Pump?

Speed adjustment on the Compact Peristaltic Pump is achieved through a mechanical keypad combined with a digital control knob, allowing for smooth, accurate, and intuitive regulation of flow rates to suit various application needs.

4: Does the Compact Peristaltic Pump NCPP-101 retain settings after a power outage?

Yes, the Compact Peristaltic Pump is equipped with a memory backup system that automatically retains user-defined settings, ensuring seamless operation and eliminating the need to reconfigure the device after a power interruption.

5: What tubing does it use and how easy is replacement?

Our Compact Peristaltic Pump uses durable PharMed tubing, known for its extended lifespan and chemical resistance. The tubing is designed for quick and easy replacement, helping to reduce maintenance time and ensure continuous, reliable operation.


Compact Peristaltic Pump NCPP-101

Compact Peristaltic Pump NCPP-101

Related Models Of Compact Peristaltic Pump

Labnics Compact Peristaltic Pumps offer a knob-based system for parameter adjustment and fine-tuning performance. They come with a digital control interface that ensures easy and accurate functionality. These units support RS485 communication for seamless integration with automated setups. They have a compact and lightweight design for easy placement and portability. Our compact peristaltic pumps ensure low power consumption for energy-efficient and continuous operation.
