Coating Thickness Gauge NCTG-105 offers a minimum measuring area of 6 mm and a sample thickness as low as 0.3 mm. It features Bluetooth data output for quick and easy data sharing. The device stores calibration values and automatically detects substrates. It offers the option to switch between single and continuous modes easily. Our unit includes manual and auto power-off settings to conserve energy efficiently.
$1,375.00
Specifications
| Measuring Range | 0 to 1250 μm / 0 to 50 mil |
| Resolution | 0.1 μm / 1 μm |
| Accuracy | ±1 to 3%n or ±2.5 μm |
| Operating Principle | NF Type Eddy Current |
| Minimum Radius Workpiece | 3 mm (convex)/ 50 mm (concave) |
| Minimum Measuring Area | 6 mm |
| Minimum Sample Thickness | 0.3 mm |
| Metric / Imperial | Convertible |
| Operating Temperature | 0 to 50°C |
| Humidity | <80% RH |
| Battery Indicator | Low Battery Indicator |

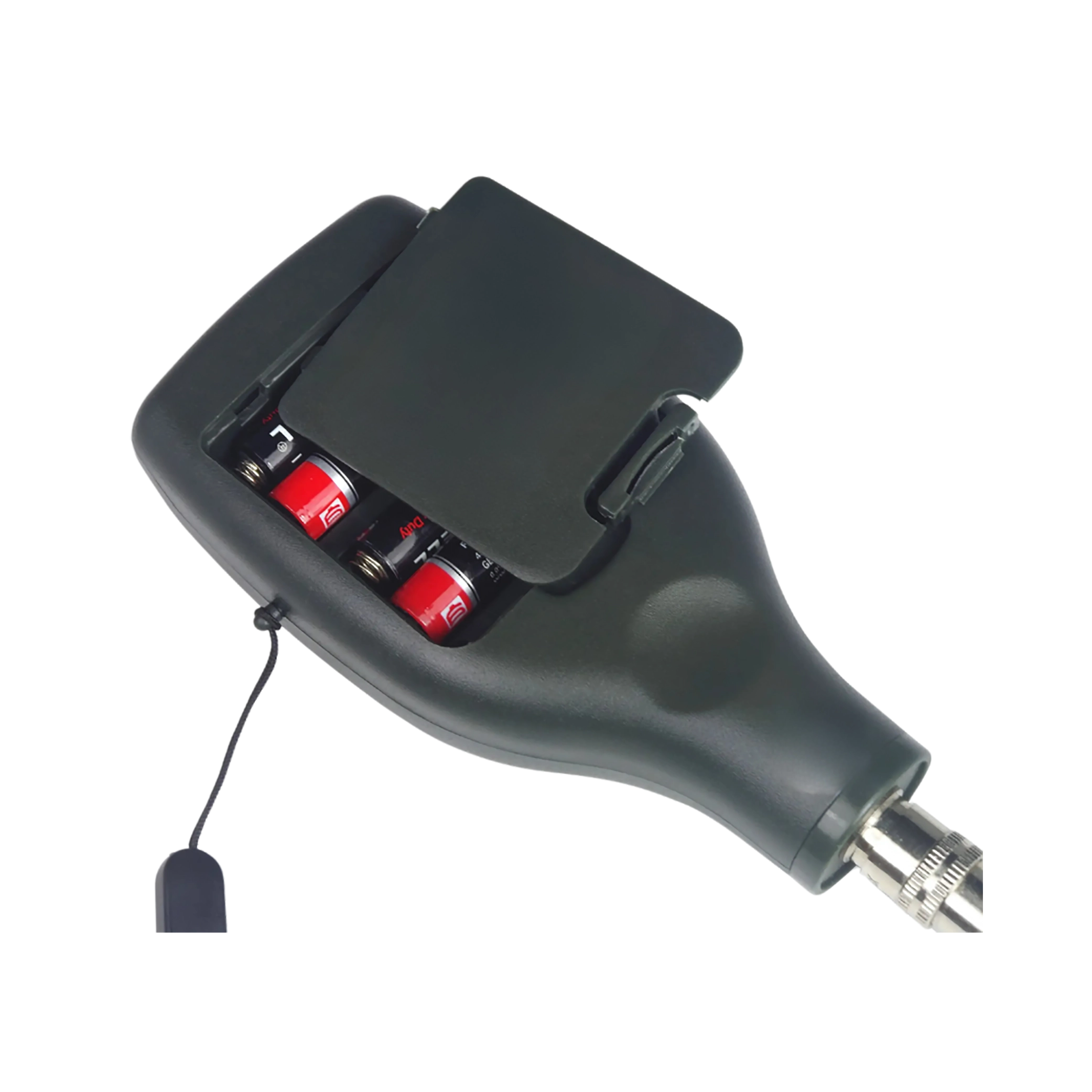

| Power Supply | 4 × 1.5V AAA (UM-4) Battery |
| Dimensions | 126 × 65 × 27 mm |
| Weight | 81 g |
Features
Applications
Standard Accessories
NF type probe × 1 pc
NF Calibration base × 1 pc
Calibration foils × 1 set
Carrying base × 1 pc
Operation manual × 1 pc
Ask Expert
FAQ for Coating Thickness Gauge NCTG-105
1: What happens if I forget to turn off the Coating Thickness Gauge NCTG-105?
The Coating Thickness Gauge includes both manual and automatic power-off functions to help conserve battery life and prevent unnecessary power usage.
2: Does the Coating Thickness Gauge store measurement data?
Yes, the Coating Thickness Gauge includes built-in memory to store previous readings. This is useful for batch testing and later data review.
3: Does the Coating Thickness Gauge NCTG-105 require frequent maintenance?
The Coating Thickness Gauge requires minimal maintenance. Keep the probe clean, avoid dropping the device, and store it in a dry, protective case when not in use to extend its lifespan.
4: What should I do if the Coating Thickness Gauge does not power on?
Check the battery condition and ensure it is correctly installed. If the issue persists, inspect the power button, replace the battery, or contact technical support for further troubleshooting.
5: What type of display does the Coating Thickness Gauge use?
The Coating Thickness Gauges feature a digital LCD display that provides clear readings and measurement feedback, often with backlight support for visibility in low-light conditions.
Labnics Coating Thickness Gauge offers a broad measurement range for versatile coating thickness measurements. They offer high resolution to deliver precise and accurate results. These units have data storage to efficiently track and access measurement records. They feature a clear backlit LCD for easy reading of measurements. Our thickness gauges allow convenient access to statistical data for comprehensive analysis.
