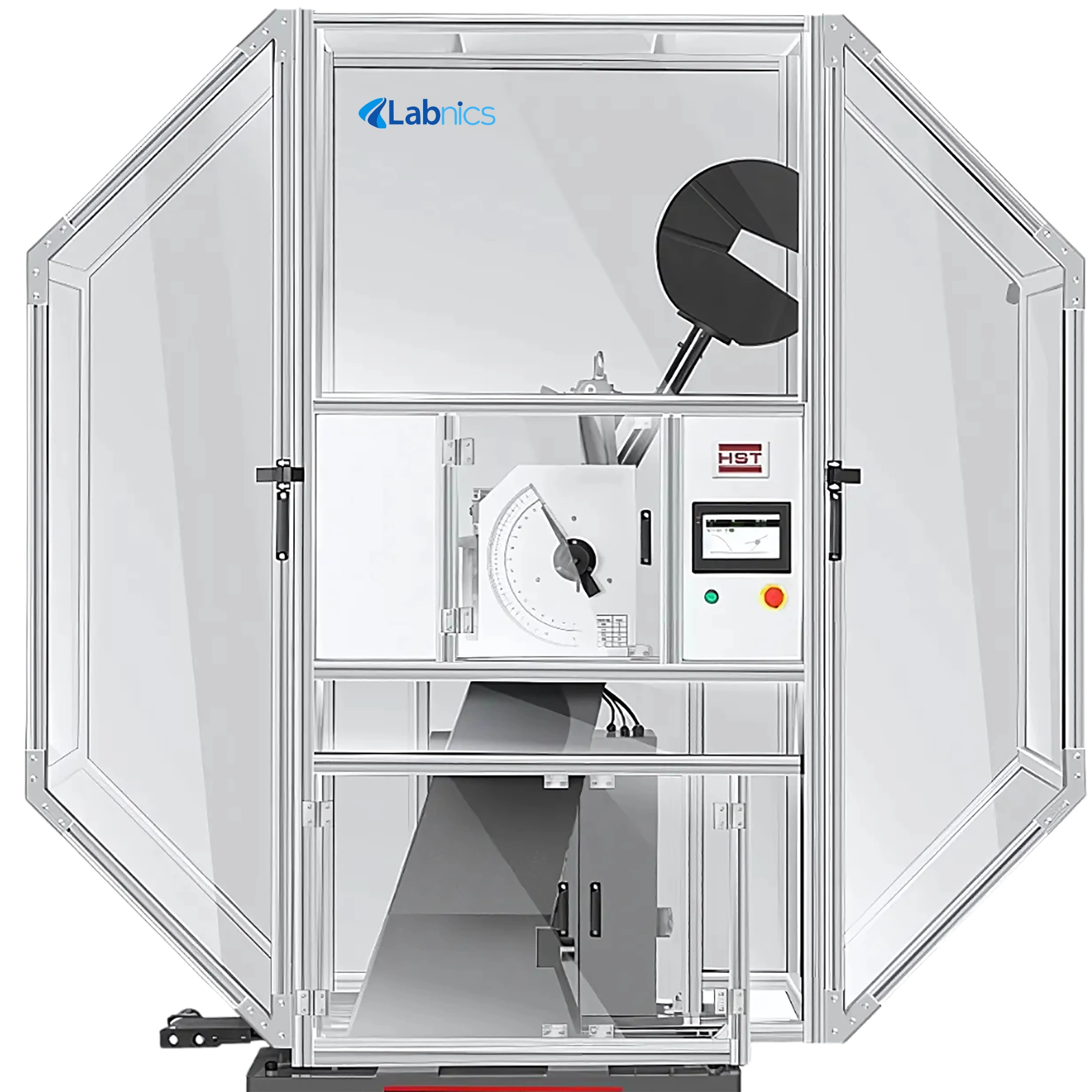

Charpy/Izod Impact Tester NTCI-200 features a high impact energy capacity of 300 J and a fine angle resolution of 0.025°. It has a rigid pendulum arm that prevents axial and transverse vibrations. This unit uses a double reduction gear system for efficient and reliable operation. It comes with a fully enclosed protective enclosure with an interlock door for enhanced safety. Our impact tester offers an electromagnetic release and clutch system for easy handling.
$18,750.00
| Maximum Impact Energy | 300 J |
| Pendulum Moment | 150 J: 80.3848 Nm 300 J: 150.7695 Nm |
| Pendulum Shaft to Impact Point Distance | 750 mm |
| Impact Speed | 5.24 m/s |
| Angle Resolution | 0.025° |
| Striking Angle | 150° ±1° |
| Support Span | 40 ±0.2 mm |
| Radius of Support Curvature | R1 to 1.5 mm |
| Angle of Support Taper | 11° ±1° |
| Striking Edge Radius | 2 mm (R2) or 8 mm (R8) |
| Striking Thickness | 16 mm |
| Striking Tip Angle | 30° |
| Standard Specimen Dimensions | 55 × 10 × 10 mm, 55 × 10 × 7.5 mm, 55 × 10 × 5 mm |
| Power Supply | 3 phase, AC 380 V ±10%, 50 Hz |
| Dimensions | 2220 × 900 × 2220 mm |
| Net Weight | 950 kg |
| Gross Weight | 1000 kg |
Cast frame stability
Symmetrical column support
Software control interface
Precision bearing system
Automatic specimen collection
Charpy/Izod Impact Tester NTCI-200 is used to evaluate the toughness and impact resistance of metallic materials across different conditions, and our impact tester is widely applied in research, quality control, and industrial testing.
300J Pendulum × 1 pc
High-precision Optical Encoder
Computer
Color Inkjet Printer
Wedge block
Span block
Specimen centering block
Centering tongs
Inside-hexagonal spanner
Anchor bolts
Automatic recycle system
