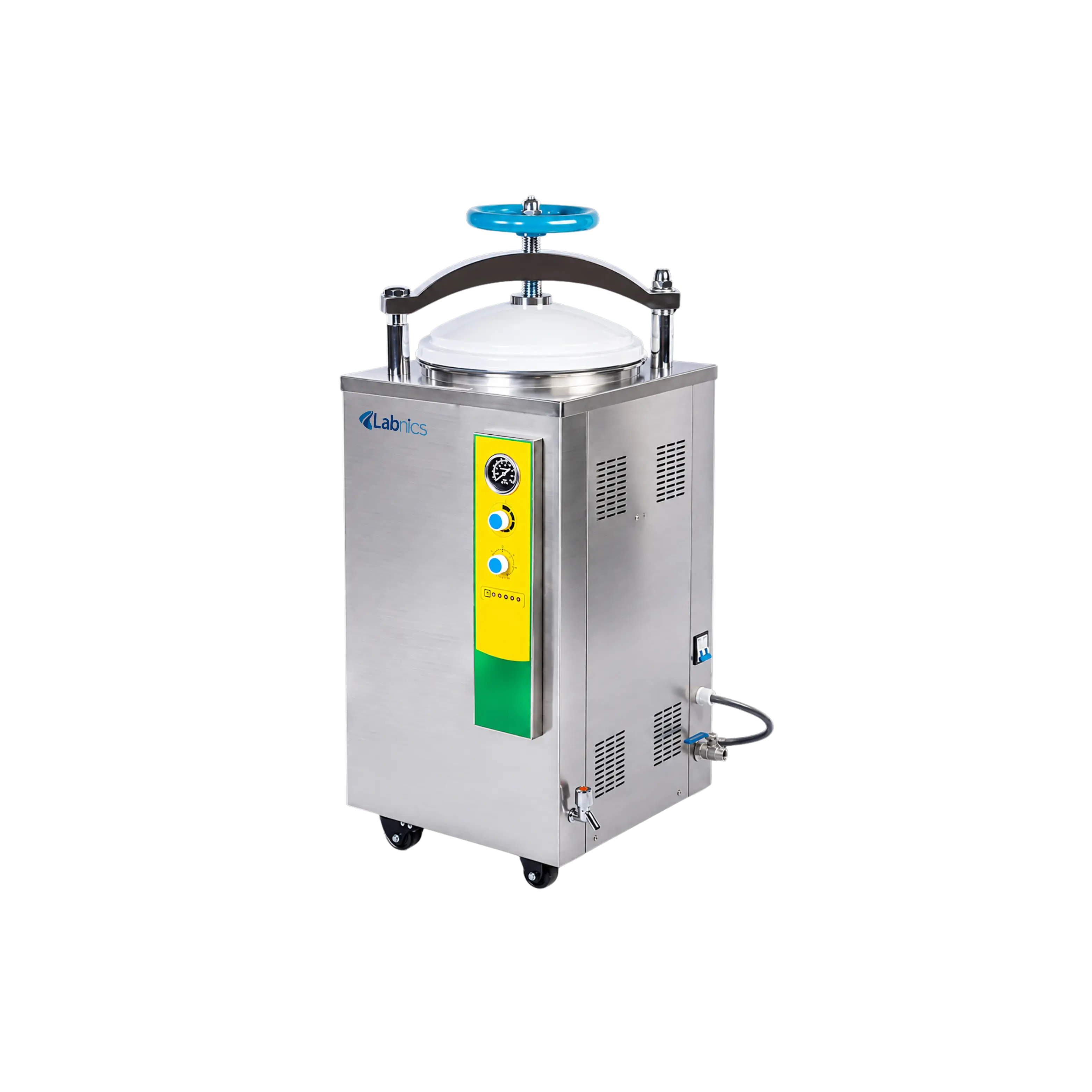

Vertical Autoclave NVA-205 offers a 50L capacity and operates within a working temperature range of 105°C to 134°C. It features a double-scale pressure gauge for precise control and monitoring. This unit has a self-inflating seal that ensures an airtight closure during sterilization. It includes stainless steel sterilizing baskets for easy loading and unloading of materials. Our vertical autoclave comes with automatic protective features that stop the cycle if temperature or pressure exceeds safe limits.
| Capacity | 50L |
| Chamber volume | 340×550mm |
| Working temperature | 134°C |
| Working pressure | 0.22Mpa |
| Temperature range | 105°C to 134°C |
| Max working pressure | 0.23Mpa |
| Heat average | ≤±1°C |
| Timer range | 0 to 60 min |
| Body | Stainless steel |
| Door | Wheel-type, quick-open door |
| Total CBM | 0.42CBM |
| Power consumption | 2×1.5kW |
| Power supply | AC220V, 50Hz |
| Overall dimension | 520×490×1150mm |
| Packaging dimension | 580×580×1250mm |
| Gross weight | 94kg |
| Net weight | 74kg |
Vertical Autoclave NVA-205 is used to ensure the safety and cleanliness of equipment by effectively sterilizing them through high-temperature steam. It is commonly employed in hospitals, dental clinics, pharmaceutical labs, and food-processing industries.
