Product Data Sheet · Laboratory Equipment

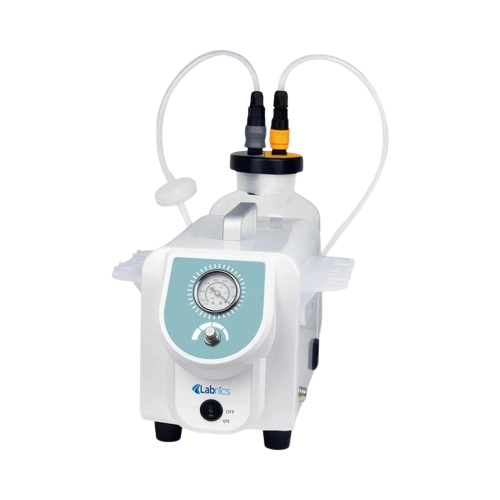

Vacuum Pump NVP-302 delivers a flow rate of 42 L/min, making it ideal for efficient operations. It achieves a vacuum degree of -0.08 MPa, providing reliable negative pressure performance. This unit includes a self-locking quick connector, allowing the pipeline to be separated easily. It features both a normally open control mode and a foot switch control mode, offering flexibility. Our pump displays vacuum levels through a vacuum gauge for accurate monitoring.
| Flow rate | 42 L/min |
|---|---|
| Vacuum degree | -0.08 MPa |
| Vacuum display mode | Vacuum gauge |
| Negative pressure adjustment range | 0 to -0.08 MPa |
| Liquid bottle capacity | 2500 ml |
| Foot switch | Yes |
| Power consumption | 180W |
| Power supply | AC 220V/110V, 50/60Hz |
| Fuse | 250V1A, Ф5x20 |
| Dimension | 248×475×350mm |
| Net weight | 9.2 kg |
Hand-held operator-1pc
Eight-channel retractable tip plastic extraction head-1pc
Eight-channel stainless steel extraction head-1pc
Single-channel plastic extraction head-1pc
Single-channel retractable tip plastic extraction head-1pc
Single-channel stainless steel extraction head-1pc
Foot switch
