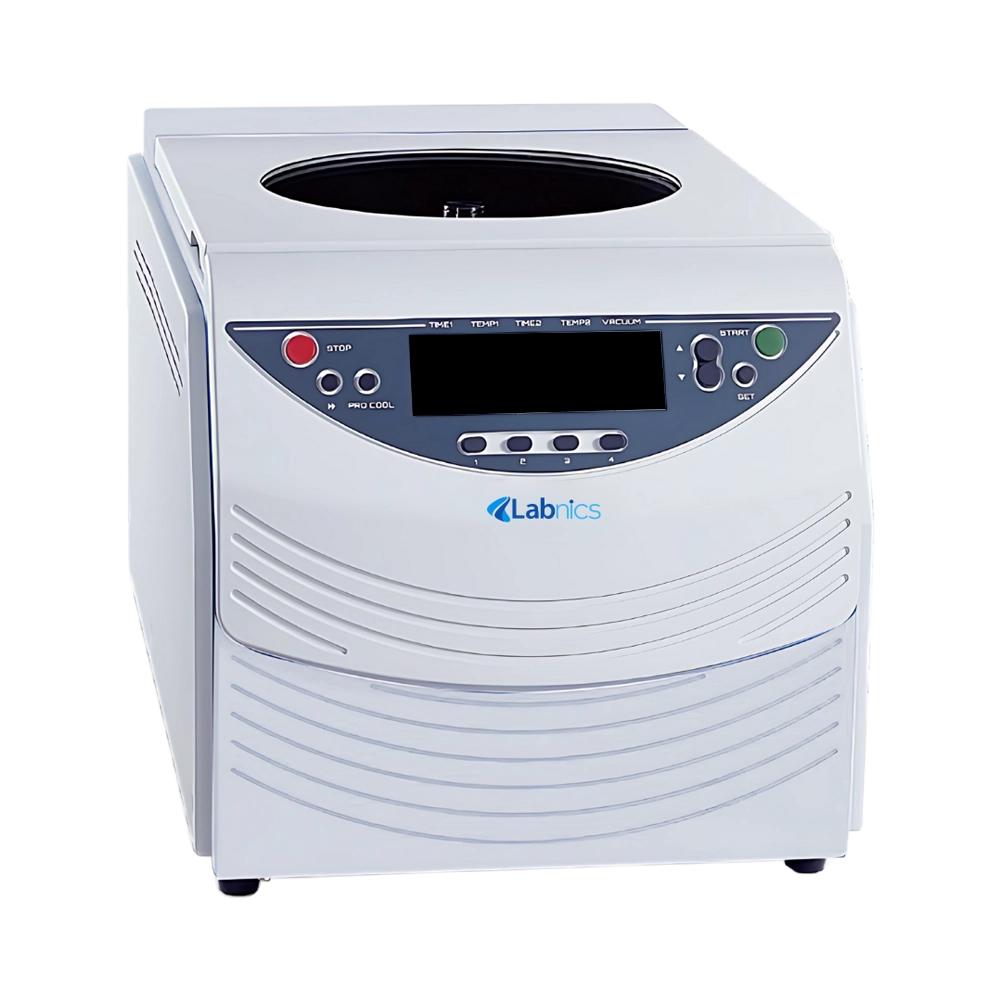

Refrigerated Vacuum Concentrator Centrifuge NRVCC-100 features a speed range from 800 to 2000 rpm, offering flexibility. It generates a maximum centrifugal force of 530×g, ensuring efficient separation. This unit can process up to 180 tubes at once, improving laboratory efficiency. It incorporates a built-in automated vacuum control system with a range of 0.1 to 100 mbar. Our centrifuge includes a digital display for easy monitoring and adjustments.
| Speed range | 800 to 2000 rpm |
| Maximum centrifugal force | 530×g |
| Timer range | 1 to 9999 min |
| Vacuum control range | 0.1 to 100 mbar |
| Chamber precool function | Yes |
| Centrifugal imaging function | Yes |
| Temperature control range | -5°C to +100°C |
| Temperature control precision | ±1°C |
| Ultimate vacuum | ≤0.2 mbar |
| Noise | ≤60 dB |
| Power consumption | 1100W |
| Power supply | AC220,50/60Hz 10A |
| Dimension | 481×370×294mm |
| Net weight | 28.5 kg |
Refrigerated Vacuum Concentrator Centrifuge NRVCC-100 is used for efficiently concentrating sensitive samples under controlled temperature and vacuum conditions, and is commonly applied in research labs, pharmaceutical industries, and clinical settings.
Accessory | Description | Quantity |
Cold trap (-50°C) 1 | Temperature: -50°C Cold trap capacity: 2000 ml Coil method: External coil | 1 |
Cold trap (-50°C) 2 | Temperature: -50°C Cold trap capacity: 4500 ml Coil method: Internal coil | 1 |
Ultralow cold trap (-80°C) | Temperature: -80°C Cold trap capacity: 4500 ml Coil method: Internal coil | 1 |
Diaphragm pump | MPS: 2.0 m3/h (33L/min) Ultimate vacuum: 7 mbar | 1 |
Oil pump | MPS: 4.0 m3/h (66L/min) Ultimate vacuum: 0.01 mbar | 1 |
Imported diaphragm pump 1 | MPS: 2.6 m3/h (43L/min) Ultimate vacuum: 5 mbar | 1 |
Imported diaphragm pump 2 | MPS: 3.3 m3/h (55L/min) Ultimate vacuum: 2 mbar | 1 |
Organic-resistant oil pump | MPS: 2.5 m3/h (42L/min) Ultimate vacuum: 0.1 mbar | 1 |
Centrifugal imaging device |
| 1 |
Capacity | Speed Range | Maximum RCM |
90×1.5ml | 800 to 2000 rpm | 530×g |
24×5ml + 66×1.5ml | 800 to 2000 rpm | 530×g |
54×1.5ml + 48×0.6ml | 800 to 2000 rpm | 530×g |
24×8×0.2ml | 800 to 2000 rpm | 530×g |
20×10ml (Round bottom) | 800 to 2000 rpm | 530×g |
40×10ml | 800 to 2000 rpm | 530×g |
8×50ml (Conical bottom) | 800 to 2000 rpm | 530×g |
18×15ml (Conical bottom) | 800 to 2000 rpm | 530×g |
64×2ml (Loading vials) | 800 to 2000 rpm | 530×g |
10×30/40ml (Penicillin bottle) | 800 to 2000 rpm | 530×g |
16×20ml (Penicillin bottle) | 800 to 2000 rpm | 530×g |
6×100ml (Phial with chicken core) | 800 to 2000 rpm | 530×g |
2×96ml (ELISA plate) | 800 to 2000 rpm | 530×g |
