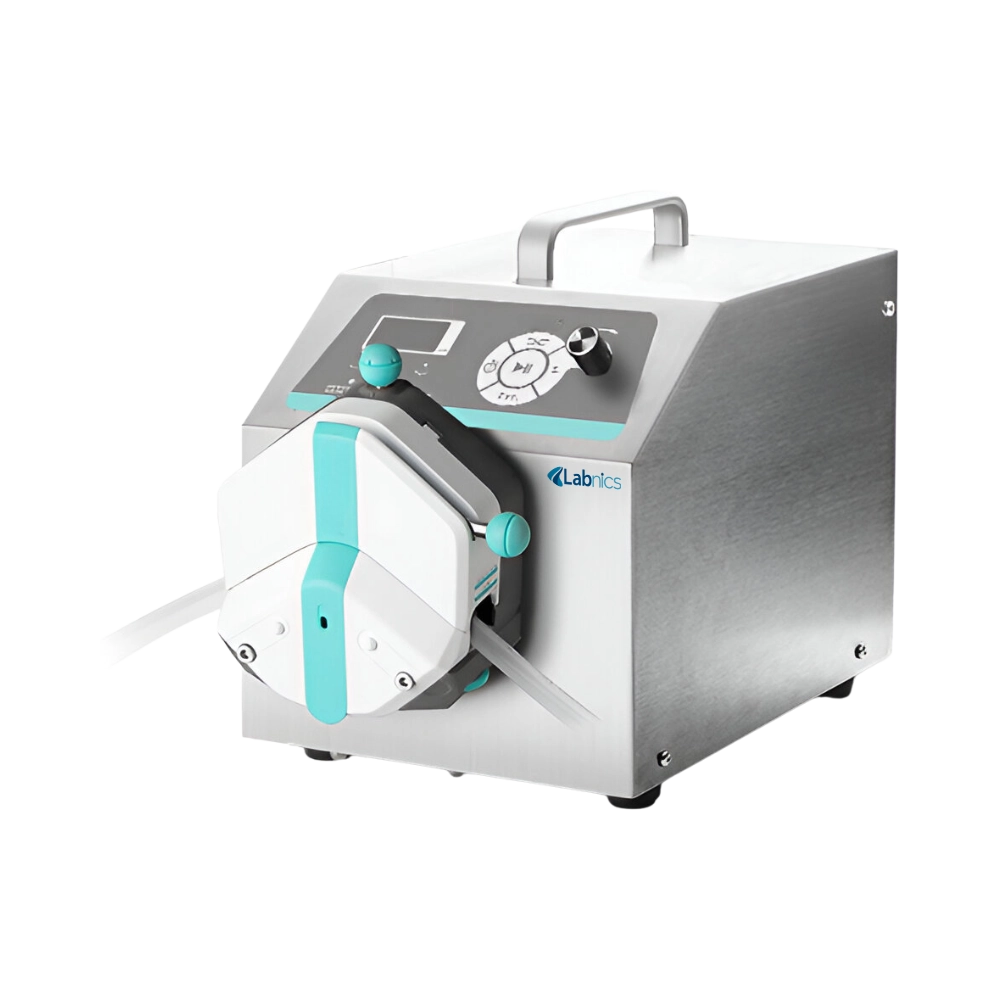

Standard Peristaltic Pump NSPP-300 supports flow rates between 0.0053 and 3100 mL/min and a flow accuracy of ±0.5%. It is built with 304 stainless steel housing for added strength and corrosion resistance. This unit offers external control options for seamless integration with automation systems. It features a three-digit LED display for accurate speed monitoring. Our pump includes a metal lifting handle for a secure and comfortable grip during transport.
| Flow Range | 0.0053 to 3100 mL/min |
|---|---|
| Flow Accuracy | |
| Speed Range | 0.1 to 600 RPM |
| Speed Resolution | 0 to 100 RPM, 0.1 RPM; 100 to 600 RPM, 1 RPM |
| Motor Type | Stepper motor/Closed-loop stepper motor |
| Temperature Range | 0 to 40°C |
| Relative Humidity | <80% |
| Speed Control | Rotary encoded switch |
| External Speed Control Signal | 0 to 5 V, 0 to 10 V, 4 to 20 mA (optional) |
| Keypad Lifespan | 300,000 times |
| Copy Numbers | 1 to 9999 times |
| Output Interface | Output motor working status (open-collector output) |
| Communication Interface | RS232/RS485/N232 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal | Passive switch input (e.g., foot pedal) |
| Active Switch Signal | Default 5V to 24V active input |
| Power Consumption | <80 W |
| Power Supply | AC 220V±10%, 50Hz/60Hz |
| Dimension | 230 × 152 × 198 mm |
| Weight | 5.02 kg |
Silicone tubing (2 meters)
Operation manual × 1 pc
Power cable × 1 pc
